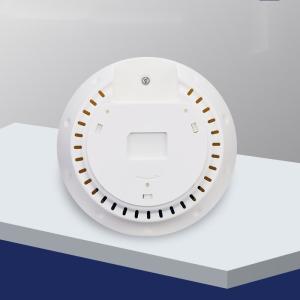

    100m Bluetooth Mesh Gateway , FCC Bluetooth Ethernet Gateway

    Ask Lasest Price
    Brand Name : Createk
    Model Number : ITBG602-S
    Certification : CE, RoHS, FCC, KC
    Payment Terms : T/T, Western Union
    Supply Ability : 100k pcs/ month
    Delivery Time : 35 days
    Price : UDS72 / negotiable
    • Product Details
    • Company Profile

    100m Bluetooth Mesh Gateway , FCC Bluetooth Ethernet Gateway

    Iot Bluetooth 5.0 Ble Wifi Ethernet Gateway Receiver With Antenna For Dialog Nordic Ti Rf Module


    Model Number: ITBG602-S

    Bluetooth gateway indoor type ITBG602-S_BLE 4.2, WIFI, Ethernet


    Product Characteristic


    URF52832 BLE chip, ultra-high BLE receiving sensitivity for wide-range monitoring Cortex-M4 microcontroller core, ultra high speed processing speed Support MQDT, HTTP and websocket three data upload methods

    Scan a variety of medium BLE data types (Connectable undirected advertisement, Connectable directed advertisement, Scannable undirected advertisement, Non-Connectable undirected advertisement and Scan Response Filterable by RSSI Built-in watchdog to ensure product stability Support software upgrade


    Product Overview:


    The BLE gateway is used to monitor the wireless signal of the BLE BLE device to monitor and manage the BLE BLE device. Any BLE BLE device data can be monitored, iBeacon and Eddystone in a beacon or custom tag format can be read and sent to a local TCP server or Internet HTTP / MQTT server. The BLE gateway itself does not have data parsing function, the gateway can only obtain the broadcast of the BLE BLE device and then upload the data to the server. The BLE gateway can obtain data of iBeacon including MAC address, UUID, major, minor, RSSI and other data.


    Application


    Indoor Positioning

    Parking management

    Temperature and humidity monitoring

    Light detection

    asset Management

    Remote monitoring

    Personnel management

    automated industry


    Product Specification


    Power

    DC6-28V(2A)

    PoE (PoE switch up to 57V), IEEE 802.3at(Class1) compliant

    Working current

    280mA@12V (with 4G module)

    180mA@12V (without 4G module)

    Operating temperature-20℃~70℃
    InterfaceEthernet port, power interface, reset button
    WiFi
    WiFi protocolIEEE 802.11n, IEEE 802.11g, IEEE 802.11b
    Data rateIEEE 802.11 b Standard Mode: 1,2,5.5,11Mbps
    IEEE 802.11 g Standard Mode: 6,9,12,18,24,36,48,54Mbps

    IEEE 802.11n : 72Mbps @ HT20

    150Mbps @ HT40

    Receive sensitivityHT40 MCS7 : -67dBm@10% PER(MCS7)
    HT20 MCS7 : -73dBm@10% PER(MCS7)
    54M: -76dBm@10% PER
    11M: -91dBm@ 8% PER
    Transmit power

    IEEE 802.11n: 15dBm @HT40 MCS7

    15dBm@HT20 MCS7

    IEEE 802.11g: 16dBm
    IEEE 802.11b: 18dBm
    Wireless securityWPA/WPA2, WEP, TKIP, and AES
    Working modeBridge,Gateway,AP Client
    Bluetooth
    Bluetooth protocolBluetooth ® 5.0
    The data rateUncoded: 1Mbps/2Mbps
    Wireless securityAES HW Encryption
    The connection distance

    100m


    Transmit power0~+18dBm

    R&Q:


    • Bluetooth gateway + beacon asset location management solution

    Description of the advantages of the Bluetooth gateway + beacon asset location management solution:

    Real-time inventory: Bluetooth beacons are broadcast at a certain frequency, so assets can be inventoryed in real time.

    Regional positioning: The asset can be located by the signal strength of the Bluetooth beacon received by the Bluetooth gateway.

    Loss of alarm: If the Bluetooth beacon leaves the designated area, the background will send an alarm signal in time. (Bluetooth gateway cannot scan the corresponding beacon)

    • Does the Bluetooth gateway need a network?

    The Bluetooth gateway is an integrated Bluetooth and wifi module device, which can connect to the network via 4G/WiFi/Ethernet for data transmission. Createk Bluetooth gateway can be with or without 4G according to the customer's choice. If the wireless layout needs to connect to WiFi, it is powered by the power adapter at this time; if it is connected to the Ethernet wired network, it can be powered by POE. For more details about the Bluetooth gateway, please contact with us


    • How to solve the short transmission distance caused by the signal attenuation of the Bluetooth gateway?

    The wireless signal transmission in the air follows the rule that the signal decreases exponentially as the distance increases, and the same is true for the Bluetooth signal. In order to increase the coverage distance of the Bluetooth gateway, Createk added PA and LNA to the Bluetooth part of the Bluetooth gateway, increasing the Bluetooth transmission power to 18dBm, and also increasing the receiving sensitivity by 12dB, thus greatly increasing the transmission distance. For more information about the Bluetooth gateway and its information, please consult us
