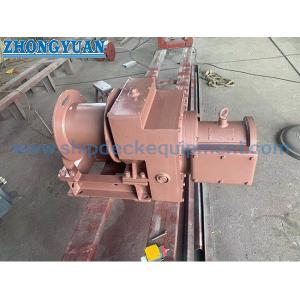

ISO7364 Electric Motor Driven 10/16 Kn Marine Accommodation Ladder Winch Ship Deck Equipment

ISO7364 Electric Motor Driven 10/16 Kn Marine Accommodation Ladder Winch Ship Deck Equipment

Description:

ISO 7364 electric motor driven 10 / 16 KN marine accommodation ladder winch mainly used for handling accommodation ladders on commercial vessels as well as hoisting and sliding the pilot ladders. This winch is satisfied with international standard ISO7363 and Chinese standard GB/1392-1985, it is of compact structure equipped with electric control switch, it is reliable and easy in operating, the winch is also equipped with manual drive which can operate in case ship’s lost power.

We can produce winches provided with hydraulic, pneumatic, electric or manual drive. Our ladder winch is high versatility, compact structure, small volume, light weight, easy maintenance, driving stably, light noise, with big drum rope capacity to make you a wide range of choice for the lifting height or pulling length, adjustable lifting or pulling speed for different usage environment.

Main Technical Specification:

1. Standard: ISO 7364:2016
2. Type: Electric Single Drum
3. Factory Testing: Running test without load, Drum load test, Static test under 1,5 holding load;
4. Working Load: 10KN, 16KN;
5. Speed(m/min):8-12m/Min
6. Wire Rope Dia. 13 (mm)
7. Material: Mild Steel,
8. Power: Electric
9. Control: Local or Remote Control
10. Classification Certificates: CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA, Etc.

Main Technical Parameters:

Drawing of ISO7364 Electric Motor Driven 10/16 Kn Marine Accommodation Ladder Winch Ship Deck Equipment

Founded in the 1990s, Zhongyuan Ship Machinery Manufacture (Group) Co., Ltd. comprises four factories and one exporting company,
employing over 300 personnel with 20 experienced technicians & engineers. Our export trade company facilitates seamless delivery of
cargo worldwide.

Our factories are certified with ISO 9001, OHSAS 18001, ISO 14001, and ISO 45001, as well as possessing Type Approval certificates
from DNV, LR, BV, and ABS. Additionally, we hold Works Approval certificates from ABS, DNV, LR, and BV, various class approved
WPS & qualified welders. All our products are eligible for certification from IACS classification societies such as DNV, ABS, LR, BV,
CCS, RINA, KR, NK, IRS, and RMRS. Our factories have secured two national patents, one for a steel plate rolling machine and two
utility model patents.

We manufacture Deck Equipment & Machinery, Mooring & Towing Equipment, Deck Outfitting, Hydraulic Cylinder, Hydraulic Power
Unit, Shaft, Rudder Stock, Shaft and Rudder system, Marine Hardware, Lifting & Lashing Equipment, Hoisting & Rigging.

We distribute Lifeboat, Rescue Boat, Boat Launching Appliance and Davit, Life-saving Equipment and Facilities, Fire-fighting
equipment, Rubber Fender, Rubber Packing, Pumps, Valves, Pipe Fittings, Multi-core Pipes and accessories, Steel Wire Rope,
Mooring Rope, Rope Nets, Anchors & Anchor Chains, Various Chains;

We pride ourselves on manufacturing & delivering reliable, high-quality products at competitive prices to our esteemed clients.

Our major equipment and facilities include various CNC machining centers with a range of CNC machine tools & CNC cutting
machines, boring and milling machines, hydraulic press machinery, plate rolling machines, welding robots, welding equipment, and
shot blasting machines, dust free paint workshop, etc.
