ID 12.7mm Through Hole Slip Ring 6 Circuits 5A

Filling Machine ID 12.7mm Through Hole Slip Ring 6 Circuits 5A

LPT012 Series Through Hole Slip Rings
The LPT012 provides an economical, readily available solution when a compact through-bore configuration is required. This unit provides a 12.7mm through-bore for routing hydraulic or pneumatic lines and a compact 55mm outside diameter for minimal space applications. The 5 amps /circuit are available in 6, 12, 18 and 24 ring configurations in 4 housing length. Similar in design to our very popular LPT012 series, this design features long life, fiber brush contact technology for ultimate performance in many challenging applications. Fiber brushes do not require lubrication and produce virtually no wear debris, for maintenance free, life time operation.

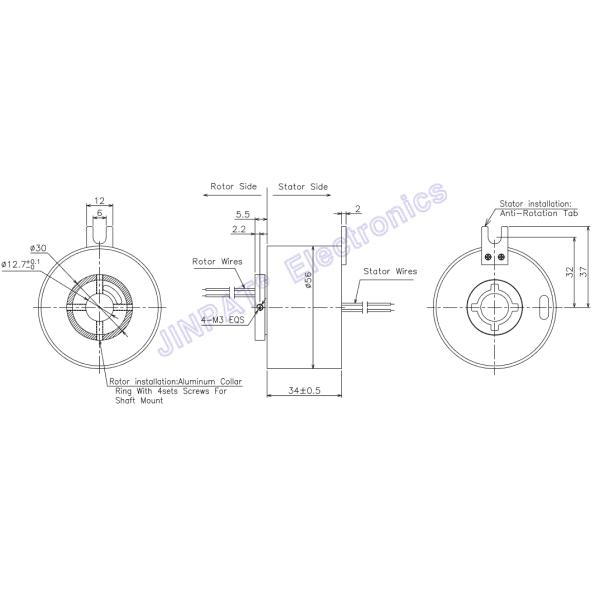

LPT012-0605-Outline Drawing

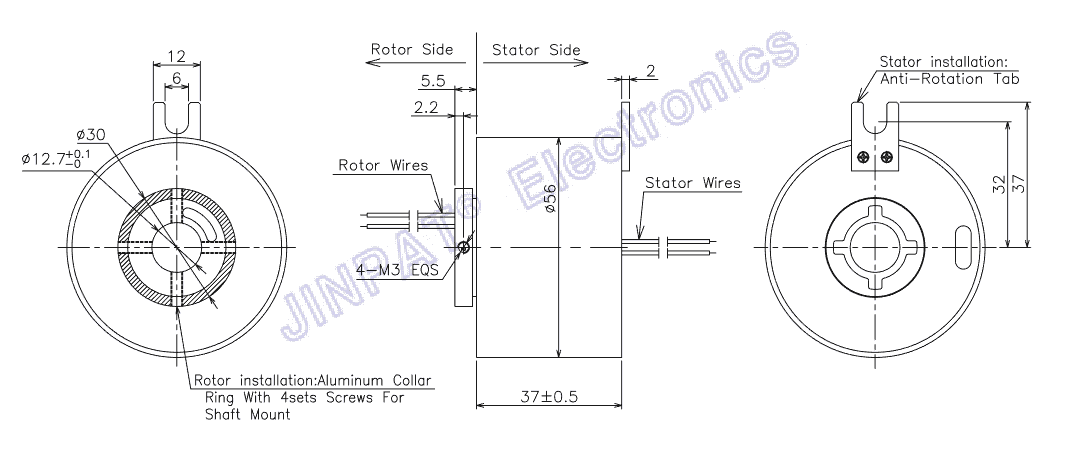

LPT012-0610-Outline Drawing

LPT012-1205-Outline Drawing

LPT012-1210-Outline Drawing

LPT012-1805-Outline Drawing

LPT012-1810-Outline Drawing

LPT012-2405-Outline Drawing

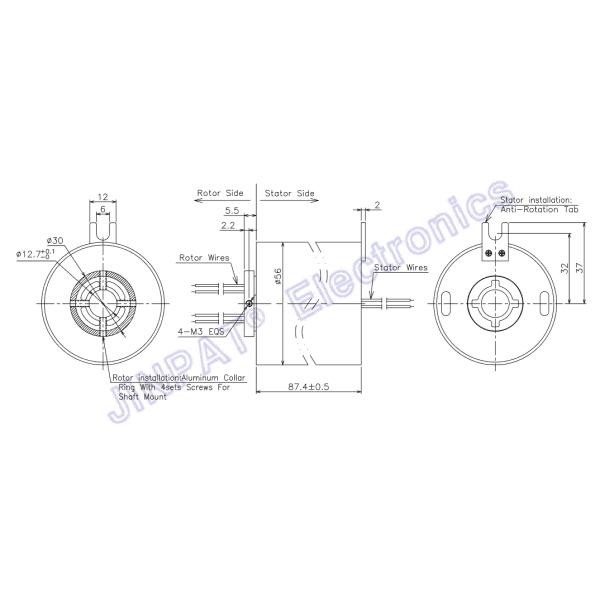

LPT012-2410-Outline Drawing

JINPAT Electronics, founded in 1996, is a national high-tech enterprise specializing in R&D, manufacturing and sales of high-precision slip rings. Typical products like Capsule Slip Ring, Through-bore Slip Ring, Large-current Slip Ring, Coax Rotary joint, Fiber Optic Slip Ring, Separate Slip Ring, Pin Slip Ring.

Besides, customization is supported to cater to the different application in that slip ring can be designed exclusively integrated with Ethernet, USB, HDMI, Sensor, CAN Bus, Thermocouple, RS232, RS422 and so forth.
