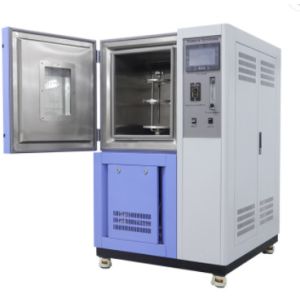

Liyi Rubber Ozone Aging Test Chamber
Product Description
Liyi ozone aging test chamber is mainly suitable for polymer materials and products (rubber) of
the resistance to ozone aging performance test. Ozone content in
the atmosphere is very low, but it is the main factors of polymer
materials aging. Ozone aging test chamber simulating and strengthen
the ozone condition in the atmosphere, get approximate to actual
use or reproduction of the test results in a short time. The studay
of ozone effect regulation to rubber products, quickly identify and
evaluate rubber materials resistance to ozone and antiozonant
protection efficiency method,and then take effective aging proof
measures to improve the service life of rubber products.
Corresponding standards:
JIS K 6259 , ASTM1149 , ASTM1171, ISO1431, DIN53509 , GB/T13642,
GB/T 7762-2003, GB 2951
Characteristics:
Liyi ozone aging test chamber equipment by the occurrence of silent and efficient ozone
generator ozone gas, and a certain amount of air processed, the
switch in the mixture into the chamber, the continuous line UV
detector to detect the concentration of ozone, ozone generator
control feedback to the systems to control system settings
according to the occurrence of effective control of ozone to the
ozone chamber to maintain the appropriate concentration of work by
heating humidification systems to meet all the test conditions.
| Model | LY-CY-80 | LY-CY-150 | LY-CY-225 | LY-CY408 | LY-CY-800 |
| Inner size W*H*D(cm) | 40*50*40 | 50*60*50 | 50*75*60 | 60*85*80 | 80*100*100 |
| Outer size W*H*D(cm) | 85*140*95 | 95*150*115 | 95*165*115 | 105*175*135 | 145*190*135 |
| Inner material | SUS 304 stainless steel |
| Outer material | SPCC Painted |
| Temperature range | RT+10°C~60°C |
| Temperature deviation | ±0.5°C (no load) |
| Temperature uniformity | ±2°C (no load) |
| Ozone concentration range | 0~500pphm (or custom made) |
| Ozone concentration deviation | 10% |
| Ozone flow rate | 12~16mm/s |
| Sample shelf roating speed | 20~25mm/s |
| Controller | Touch screen programmable controller |
| Ozone generator | Using voltage silent discharge tube produce ozone |
| Power | AC 380V 3 phase 4 lines |
Safty device:
1. Power overload, short circuit protection
2. Grounding protection
3. Water protection
4. In order to protect the equipment, all alarm will automatically
cut off the power supply, and an audible tip.
Environmental conditions:
1. The temperature: 15 °C ~ 35 °C.
2. Relative humidity: no more than 85% RH.
3. No around strong vibration, no strong electromagnetic field
effect.
4. No dust and high concentration around the corrosive substance.
5. No direct sunlight or other heat source direct radiation.
6. Around without strong airflow, when the surrounding air need
compulsory stream.
7. Test box should be placed smooth, maintain a level.
8. Test box around the there shall be a certain distance,
convenient maintenance operation.
