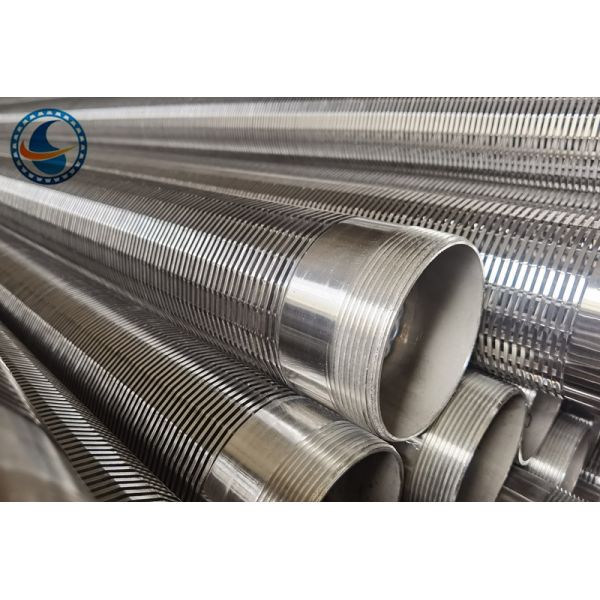

Dewatering Sand Control 3-1/2" Johnson Stainless Steel Well Screen

3-1/2" SS Dewatering Sand Control Johnson Wire Screen

Introduction of Dewatering Sand Control Johnson Wire Screen:

Dewatering Sand Control Johnson Wire Screen, also known as the water well screen, wire wrapped screen, wound screen, wedge wire screen, is widely used in oil, gas, water well sand control industry, especially in the water well industry prominent position, widely used in water resources filter screen pipe. Stainless steel dewatering sand control Johnson wire screen using full welding production process, the application of special trapezoidal wire winding in a circumferential arrangement of a group of supporting wire welding from.

Dewatering Sand Control Johnson Wire Screen Performance Characteristics:

The application of trapezoidal wire, so that the screen tube gap between the formation of V shaped opening.

The trapezoidal wire continuous winding forms continuous high-density uniform gaps on the supporting wires arranged in a circular manner.

The winding wire and all supporting wire are connected by electric welding, durable, long working life cycle.

According to the actual needs of the design of support wire longitudinal arrangement and the continuation of the screen gap form, the stainless steel screen high compressive performance

Dewatering Sand Control Johnson Wire Screen Parameters:

1. Gap (mm) : 0.25mm, 0.5mm, 0.63mm, 0.75mm, 1.0mm in usual. (Min slot: 0.025mm)

2. The opening area is up to 80%.

3. Material: low carbon steel, low carbon steel galvanized, stainless steel (201, 304,316, etc.)

4. The length is 5.8 meters or 2.9 meters to fit container.

5. Outside diameter from 89mm to 477mm

6. Connection type: Welded rings or male/ female threaded connection.

Dewatering Sand Control Johnson Wire Screen Information:

Anping County Hengyuan Hardware Netting Industry Product Co.,Ltd. is located in Anping county which well known of "The hometown of wire mesh in China",emerged from Anping griddle screen factory in 2006 with a founding of 3.0 million RMB. It has a comparatively long history,a large scale production rate,and it is the only company among others in the same profession to have been certified by the IS09001 quality system authentication.

For several years,we never stop innovating and improving ourselves,we have introduced the advanced production line,collected the massive engineering research and managerial talent,now company moves to the XuTuan Wire Mesh Industry Zone,takes up six thousands square meters.

Our company produce and sell as following:Johnson wire screen,Water well screen,Vee wire screen, Well screen, Wire wrapped screen,Oil well screen,Wedge wire screen,Slot tube,Vee shaped wire welded screens,Strainer pipe,Mine sieving mesh, Spiral screen tube,Rod based continuous slot screen pipe,Wound screen cylinders,Drilling well screen,Vibrating sieve screen plate, Wedge wire panel, Screen flat,Water filter,Arc screen, Johnson screen nozzle, Water filter etc.

The products are used in the trades,such as ore choosing,petroleum,chemical industry,electron,transportation,plastics,food,architecture,traffic ,Water / oil well , Wastewater treatment etc.

Our products can be seen everywhere in China,as well as African countries, Middle East and the regions of Southeast Asia.

The president of our company sincerely hopes to build well trade relationship on the basis of mutual reciprocity, mutual benefit and friendly cooperation to create the nice future together.
