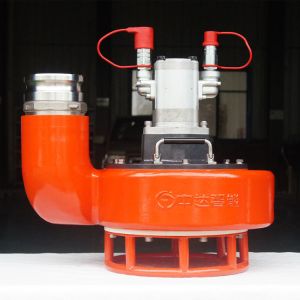

Hydraulic Trash Pump One-Piece Casting Displacement 200m³/H ,
Operational Flow 30-40 lpm.
Hydraulic Slurry Pump
Product description:
Lightweight, compact and efficient, hydraulic slurry pumps are used
in a wide range of applications, including construction sites,
flooded driving
Ground excavation and basement continuous pumping of clean water or
sewage, urban floods, etc.
Product features:
1. Larger conveying capacity
It can transport a larger amount of water, mud, mortar, etc. The
pump adopts steel pump body, cast impeller with cast iron material,
and special eddy current design.
2. High safety performance
There is no cable, so that potential safety hazards of leakage can
be avoided.
3. Strong performance
It is driven by a hydraulic motor with a special drive shaft, oil
seal and bearing built-in. The hydraulic oil is cooled and
lubricated, so it can run dry without damage.
performance technology parameter configuration
| Model | ZDTP03 | ZDTP04 |
| Flow(m³/h) | 100 | 200 |
| Maximum flying dust/m | 25 | 16 |
| Weight/kg | 11 | 27 |
| Outfall/mm | 75 | 100 |
| Size/mm | 300×200×400 | 470×340×480 |
| Pumped maximum particle/mm | 70 | 80 |
| Operational pressure/Mpa | 10.5-14 | 10.5-14 |
| Operational flow/Lpm | 20-30 | 30-40 |
