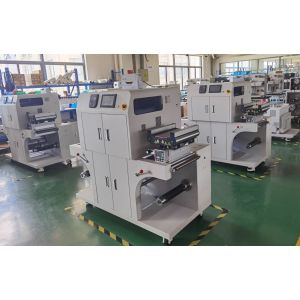

304mm Print Width Digital Label LED Printing Machine
In order to get a high quality printing, we researched and
developed typical and easy a printer software for ECOO LL320. This
software has friendly interface, and easy to understand.
Automatically edit jobs together, integrated with programmatic
printing. PhaserMatch 5 color management system was nested to
printing software. You can get best image label and finish the jobs
easily.
●○● ●○● ●○● ●○● Characteristics ●○● ●○● ●○● ●○●
♥ It running must be with connecting machine
♠ Easy user operation interface and media management system
♦ Rotate, zoom, minor and nest your labels and jobs freely
♣ Calculate the toner using volume, label cost and job cost
♥ Color management with RIP
♠ Second track printing
♦ Cycling printing for many pages in job
●○● ●○● ●○● ●○● Specification ●○● ●○● ●○● ●○●
Digital Label Printing Machine
Model
ECOO LL320
Print Speed
Up to 7.26meters/min (30ft/min)
Print Technology
4 Color(CMYK) LED technology
Preparing Time
Less than 28s
Printer Processor
533MHz
Data Port
(Standard) 10BASE-T/100BASE-TX, USB2.0;
(Options) Internet 1000BASE-T, IEEE1284-B
Media Width
320mm
Print Width
Max. 308mm, Min. 210mm
Print Length
Max. 1200mm, Min. 98mm
Substrate Types
Paper: Paper, High glossy paper, Matt paper; Film: PET, PP, PE,
GHS..
All of media was tested in special environment, not tested media
possible can't be used.
Print Quality
1200x2400dpi
Toner Supplies
CMY-18500 sheets (A4, 5% coverage rate), K-26000 sheets (A4, 5%
coverage rate);
(Rated according to ISO/IEC 19798 guidelines)
Drum Supplies
CMYK-100000(Print runs according to the operating cycle,
Medium size and the direction to change)
Size
1400x810x1600mm
Weight Print Engine:
423KGS
Operating Environment
Temperature: 20ºC-23ºC, Humidity: 45-55% RH
Power Supply
110-127 VAC, 50-60Hz@2800W, 220-240 VAC, 50-60Hz@2800W
Power Consumption
(AC220-240V) Sleep 75W; Waiting 100W; Running 1100W
Monthly Running Job
Max. 20000sqm (advice)
Warranty
1 year (excluding high consumable parts)
Consumbales:
Toner K:
Print 26 sheets A4 with 5% coverage
Toner CMY:
Print 18.5K sheets A4 with 5% coverage
Drum:
100K sheets A4
Waste Box:
300k sheets A4
Transfer Cleaner:
200k sheets A4
Transfer Roller:
200k sheets A4
Developer CMYK:
480k sheets A4
Developer House:
480k sheets A4
Fuser:
480k sheets A4
Transfer Belt Assy:
480k sheets A4
| Digital Label Printing Machine |
| Model | ECOO LL320 |
| Print Speed | Up to 7.26meters/min (30ft/min) |
| Print Technology | 4 Color(CMYK) LED technology |
| Preparing Time | Less than 28s |
| Printer Processor | 533MHz |
| Data Port | (Standard) 10BASE-T/100BASE-TX, USB2.0; (Options) Internet 1000BASE-T, IEEE1284-B |
| Media Width | 320mm |
| Print Width | Max. 308mm, Min. 210mm |
| Print Length | Max. 1200mm, Min. 98mm |
| Substrate Types | Paper: Paper, High glossy paper, Matt paper; Film: PET, PP, PE,
GHS.. |
| All of media was tested in special environment, not tested media
possible can't be used. |
| Print Quality | 1200x2400dpi |
| Toner Supplies | CMY-18500 sheets (A4, 5% coverage rate), K-26000 sheets (A4, 5%
coverage rate); (Rated according to ISO/IEC 19798 guidelines) |
| Drum Supplies | CMYK-100000 (Print runs according to the operating cycle, Medium size and the direction to change) |
| Size | 1400x810x1600mm |
| Weight | Print engine: 423KGS |
| Operating Environment | Temperature: 20ºC-23ºC, Humidity: 45-55% RH |
| Power Supply | 110-127 VAC, 50-60Hz@2800W, 220-240 VAC, 50-60Hz@2800W |
| Power Consumption | (AC220-240V) Sleep 75W; Waiting 100W; Rrunning 1100W |
| Monthly Running Job | Max. 20000sqm (advice) |
| Warranty | 1 year (excluding high consumable parts) |
Consumbales:
Toner K: Print 26 sheets A4 with 5% coverage
Toner CMY: Print 18.5K sheets A4 with 5% coverage
Drum: 100K sheets A4
Waste Box: 300k sheets A4
Transfer Cleaner: 200k sheets A4
Transfer Roller: 200k sheets A4
Developer CMYK: 480k sheets A4
Developer House: 480k sheets A4
Fuser: 480k sheets A4
Transfer Belt Assy: 480k sheets A4
|
●○● ●○● ●○● ●○● Introduction ●○● ●○● ●○● ●○●
Label printing company and some enterprises need digital label
printers to save printing costs and time costs. Lack of labor
force, the operators who are professional for traditional printing
machine are becoming less and less, The advantage of digital
products are that easy to operate and maintain gradually enter the
label printing market, it will replace the traditional printing
press step by step. Digital Label Printer meets the different needs
of various customers with suitable printing costs and lower product
prices.
●○● ●○● ●○● ●○● Features ●○● ●○● ●○● ●○●
Software features
The ECOO LL320 digital label priting machine overturns digital
label printing line. She has best advanced LED production printing
engine. We have paid efforts integrate with much year experience.
We get high efficiency and low cost printing machine. Most of
printing company and print shop can have it and create a wonderful
wealth.
• LED low temperature image technology
• CMYK 4 colors
• Printing resolution 1200*2400 dpi
• Print speed 7.26m per minute
Auto web guide tension system
♩ For tension adjustment of all media
♪ Auto calculate the length of feeding
♫ Ultrasonic detect edge of media to avoid media loading twisty
♬ Avoid printing image to stretched and twisted
§ Increase the lifespam of engine
●○● ●○● ●○● ●○● Producing And Packaging ●○● ●○● ●○● ●○●
From producing to delivery, we make every details very carefully to
guarantee the good product quality and service to customers.
