| Brand Name : | Hioso |
| Model Number : | HA7302CST |
| Certification : | CE, RoHS, CCC |
| Price : | Negotiable |
| Payment Terms : | L/C, T/T, Western Union, D/P |
| Supply Ability : | 5000pcs/month |
| Delivery Time : | 2-10 working days |

Overview

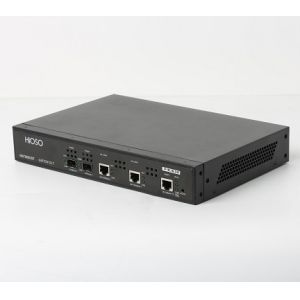

HA7302CST is a standalone 2-PON OLT,working with HA7200 series ONU and ODN, to establish a passive optic network. It supports 2-PON, 64 ONUs access (maximum 128). It supports 10~20km transmission distance at the base of high bandwidth, full line speed L2/L3 transition capacity. It supports WEB/SNMP/CLI management.
Feature
Application
1000M point to multi-point optic passive network
Technical Specification
| Parameter | Specifications |
| Operating wavelength | 1310(RX)/1490(TX) |
| Optical power | +0 ~ +7dBm |
| Receiving sensitivity | -27dBm |
| Max distance | 20km |
| Max splitter ratio | 1:64 |
| Capacity | 2 PON, standard: 64 ONUs maximum:128 ONUs |
| MAC | 8K |
| Uplink port | 2 1000M Ethernet RJ45 ports |
| PON port | 2 SFP fiber ports |
| Control port | RJ45 console port, to debug the device |
| MTBF | 100,000 hours |
EPON traits | Support IEEE802.3ah |
| Support DBA with minimum1Kbps granularity adjustable | |
| Support 1Gbps up link and down link symmetrical bandwidth | |
| Support AES-128 encryption to each Logical Link Identifier | |
| Support powerful OAM function, implement telnet management, maintenance and upgrade | |
| Support auto discovery and auto register of ONU (real-time operation) | |
| Protocols supported | Support IEEE802.3, IEEE802.3u, IEEE802.3ab |
| Support IEEE802.1Q VLAN | |
| Support IEEE 802.1P QoS | |
| Management | CLI and GUI, SNMP, WEB |
| Support DHCP Snooping | |
| Support Ipv4 address learning based at DHCP Snooping | |
| Support ARP Snooping, QoS etc |
Working Environment
| Parameter | Specification |
| Power supply | AC220V |
| Power consumption | 11W |
| Operating temperature | -10~55℃ |
| Storage temperature | -40~70℃ |
| Humidity | 5%~90% non-condensing |
| Dimension | 276mm(length) ×200mm(width) ×44mm(height) |


Datasheet download: 7302CST.pdf
|
