    Fire Resisting Insulation Ductwork Cup Head Pin For Welding Rock Wool On Metal Sheet

    Ask Lasest Price
    Brand Name : HUIHAOCUSTOM
    Model Number : paper cup head cd pins
    Certification : ISO9001-2015
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 7000000 SETS PER MONTH
    Delivery Time : 10 WORK DAYS
    • Product Details
    • Company Profile

    Fire Resisting Insulation Ductwork Cup Head Pin For Welding Rock Wool On Metal Sheet

    Fire Resisting Insulation Ductwork Cup Head Pin For Welding Rock Wool On Metal Sheet


    Specification of Ductwork Cup Head Pin

    standard typesdetails of standard
    For US, Canadathe standard washer diameter is 1.187"(30mm), the pin diameter is 12GA(2.7mm), the washer can with or without kraft paper. the length from 3/8" to 4-7/8"
    For EU countriesthe washer diameter is 30mm, 38mm, The pin diameter is 12GA(2.7mm) and 14GA(2.0mm).
    notedthe washer can with or without kraft paper, the pin can be with or without plastic sleeve. the length from 9.5mm to 140mm. we also accept the special order for other lengths.

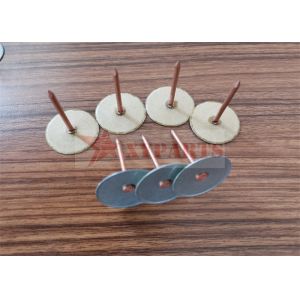

    Images of Ductwork Cup Head Pin



    application of Ductwork Cup Head Pin

    The method of application is to place the insulation onto a metal surface, push the Cup Head ductwork cup head pin through the insulation, and weld affix (mount) the entire fabricationin one step. Now it is widely accepted as labor saving fasteners in the thermal and acoustical insulation markets for use in industrial and commercial applications.

    recommended forpin length before welding
    1/2" insulation(all densities)12.67mm
    1" insulation(1-1/2"ib density)17.63mm
    1" foam25.55mm
    1"insulation(3ib densities)23.72mm
    1-1/2" insulation(all densities)28.42mm
    2"insulation(1-1/2"-2" ib density)37.95mm
    2"insulation(3ib densities)48.77mm
    3"insulation(all densities)69.85mm
    4" insulation(all densities)95.00mm

    Package details of Ductwork Cup Head Pin

    12Gauge *2.5” Ductwork Cup Head Pin1000Pcs26×26×18CM5.5KG
    12Gauge *4.5” Ductwork Cup Head Pin1000Pcs26×26×32CM7.5KG
    14Gauge *2.5” Ductwork Cup Head Pin1000Pcs26×26×18CM4.5KG
    14Gauge *4.5” Ductwork Cup Head Pin1000Pcs26×26×32CM6.0KG
