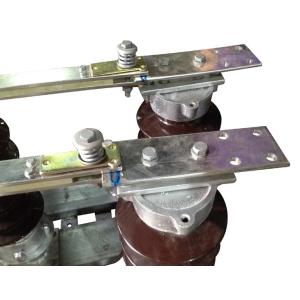

36KV 1250A Porcelain Rotating Center Insulator With Mounting Structure

    Buy cheap 36KV 1250A Porcelain Rotating Center Insulator With Mounting Structure from wholesalers

    Buy cheap 36KV 1250A Porcelain Rotating Center Insulator With Mounting Structure from wholesalers
    • Buy cheap 36KV 1250A Porcelain Rotating Center Insulator With Mounting Structure from wholesalers
    • Buy cheap 36KV 1250A Porcelain Rotating Center Insulator With Mounting Structure from wholesalers
    • Buy cheap 36KV 1250A Porcelain Rotating Center Insulator With Mounting Structure from wholesalers

    36KV 1250A Porcelain Rotating Center Insulator With Mounting Structure

    Ask Lasest Price
    Brand Name : Suntech
    Model Number : Rotating Isolate
    Certification : ISO
    Price : Get the lastest price
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 5000pcs per month
    Delivery Time : 25-30 days after payment
    • Product Details
    • Company Profile

    36KV 1250A Porcelain Rotating Center Insulator With Mounting Structure

    High Quality 36KV 1250A Porcelain Rotating Center Isolator With Mounting Structure


    Ningbo Suntech Power Machinery Tools Co.,Ltd. Is one of the global processional electircal apparatus manufacturer in China,covering various electrical frelds and engaged in the widest range of electrical power components and parts including Hardware Fitting,Clamps,Connectors,Terminals Cable Accessories,Insulators,Surge Arresters,Cutouts,Isolates Switches,Transormer,Tools,BK,BKC series control transformer,and all kinds of the regulator and so on.


    TypeUnitGW4-35/630GW4-35/1250
    Rated VoltageKV3535
    Rated CurrentA6301250
    FrequencyHz50/6050/60
    Impulse Voltage (BIL)KV150150
    Power Frequency withstand VoltageKV5050
    Creepage DistanceMM11001100
    WeightKGS282282
    Package SizeCM128*93*95128*93*95

    TypeUnitGW4-35/400GW4-35/800
    Rated VoltageKV3535
    Rated CurrentA400800
    FrequencyHz50/6050/60
    Impulse Voltage (BIL)KV150150
    Power Frequency withstand VoltageKV5050
    Creepage DistanceMM11001100
    WeightKGS280282
    Package SizeCM128*93*95128*93*95

    Standard

    IEC/IEEE and DVE-recommendation standards especially comply with DIN VDE 0670 part

    IEC-60265, IEC-129

    Features

    All steels are made of either in stainless steel or hot-dip galvanized steel.

    1. Solid and stable base frame.
    2. main contact with ice protection.
    3. Polymer insulators or alternatively in porcelain.
    4. Minimal sag for the line-connection between two fixed terminals.
    5. Completely maintence antirust Aluminium alloy Arc chamber.
    6. Switching-off procedure without external arc.
    7. Short circuit making capacity under specific conditions possible
    8. Fixing on the supporting structure either by clamping(free setting) or screwing (holes in the base frame)
    9. Easy on-site installation and setting.

    10. High reliabilty up to 1000 cycles (depending on the running current).

    11. All contacts are either sliver or tin-plated.
    12. Practically maintance-free.

    Environmental Conditions

    Ambient Temperature: -30℃ - +40

    Altitude: 3000m

    Frequency: 50Hz / 60Hz

    Maximum Wind Speed: 35m/s
