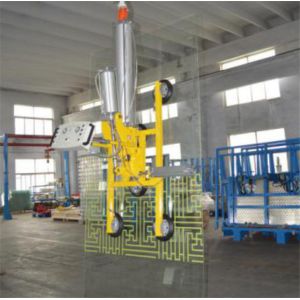

Glass Cantilever Crane with lifting sucker
Parameters:
| Max Glass weight | 360KG | |
| Rotation angle | 90° | Left and Right |
| Suction cups | 4 Pieces | |
| Cups Materials | Silicone | |
| Sliding method | Manual | |
| Column height | 4 meters | Gas storage function |
| Arm length | 4 meters | |
| Air control parts | Airtac | |
Parameters:
| Max Glass weight | 260KG | |
| Rotation angle | Rotate 90 ° | Left and right |
| Suction cups | 2 pieces | |
| Cups Materials | Silicone | |
| Sliding method | Manual | |
| Column height | 4 meters | Gas storage function |
| Arm length | 4meters | |
| Air control parts | Airtac | |
Parameters:
| Max Glass weight | 500KG | |
| Rotation angle | Rotate 90 ° Flip 90° | Left and Right Up and Down |
| Suction cups | 6 Pieces | |
| Cup Materials | Silicone | |
| Sliding method | Manual | |
| Column height | 4 meters | Gas storage function |
| Arm length | 4 meters | |
| Air Control parts | Airtac | |
| Max Glass weight | 400KG | |
| Rotation angle | Rotate 90 ° Flip 90° | Left and Right Up and Down |
| Suction cups | 2 pieces | |
| Cups Materials | Silione | |
| Sliding method | Manual | |
| Column height | 4 meters | Gas storage function |
| Arm length | 4 meters | |
| Air control parts | Airtac | |
Other products of LIJIANG GLASS
LJBZ2025 Vertical Automatic Insulating glass production line
APPLICATION
As the most important process of insulating glass production, we
are especially professional in glass cleaning, transmitting
pressing and gas filling(optional).The production line can do
double glass,triple glass and stepped glass.
1. Low-e glass sensor
This sensor is installed before washing machine.It can automatically recognize
Low-e glass,preventing the glass from dropping Low-e surface.
2. Conveyor roller
The transfer wheel in the washing and drying section : The front
and back transfer wheel are all moved, all actively transferred. It
can guarantee the big size glass and thick glass pass through
smoothly.
3. Washing&Drying machine
The whole washing &drying machine adopts stainless
steel,including the plate and interior spare parts.And some slider
block are copper.
3.1 Washing part
It has 3 pair of brushes, which are all soft brushes, washing flat
glass,tempering glass and low-e glass.It has a diameter of less
than 0.1mmde bristles,which will never damage glass,especially
low-e glass .
Noise reduction device
The noise can be controlled below 90 decibels by using nylon gear
and sponges.
4.1 Pressing way
It presses IGUs by hydraulic station with pressure, it guarantees
the precise pressure.
4.2 Energy saving of pressing function
It adopts 3 micro switches,which divide the pressing part into 4
sections.
Each micro switch receives the signal and adds a part of the
working area. When the corresponding micro switch is not touched,
the region does not work.
The work area can be divided in this way.
4.4 Stepped glass(Optional)
It also can make stepped glass with a servo motor.
5, touchscreen and electric box.
Main Parameters:
| Washing speed | 2~10m/min |
| Max.working speed | 45m/min |
| Washing glass thickness | 3~15mm |
| Max.insulating glass thickness | 60mm |
| Conveyor height | 500mm |
| Min.glass size | 450×280 |
| Max.glass size | 2000×2500 |
Main components:
| Circuit breaker | schneider |
| Contactor | schneider |
| PLC | Siemens or omron |
| Touch screen | Taiwan Wenview |
| Power switch | Taiwan |
| Frequency | Dongyuan or Siemens |
| Relay | Japan Omron |
| Optoelectronic switch | Korea Autonics |
| Servo motor | Siemens |
| Pneumatic component | Taiwan Airtac |
Touch Screen operating convenient Insulating Glass processing line
with 98% Argon gas filling
LJBZ2570PG Automatic Vertical insulating glass processing line has
the following functions: Washing flat glass, Installing aluminum
frame, Pressing normal IG units, Pressing double IG units, Pressing
double three-layers IG units.
LJBZ2570PG is a special equipment in the production of insulating
glass with aluminum strip, which has many advantages, such as small
footprint, reliable performance, high efficiency, convenient
maintenance and so on.
Main feature of Jumbo size insulating glass production line
● touch screen interface,Germany Siemens PLC control system
● Automatic identification of coated and Low-E glass
●The washing machine adopts SS material and waterproof device
Water tank with automatictemperature control and water washing
system
● 3 pairs of soft brushes can wash online and offline Low-E glass
●Air Fan automatic start and stop setting
● Air heating system
●Noise reduction system
●Online display of washing speed
●Adjustable pressing board to keep the plate pressing surface
straight
● Connection mode of aviation plug
Applicable to produce triple IG and shaped IG
●Intelligent intermittent work, saving energy
Main parameters of Automatic insulating glass processing line
| Power supply | Voltage | 380 |
| Frequency | 60 |
| Total power | kW | ≈42 |
| Washing speed | m/min | 2~10 |
| Max.working speed | m/min | 45 |
| Min.glass size | mm | 450×280 |
| Max.glass size | mm | 2500×7000 |
| Washing glass thickness | mm | 3~15 |
| Max.insulating glass thickness | mm | 60 |
| Conveyor height | mm | 500 |
| Total gas consumption | L/min | 1500 |
Insulating glass processing machine adopts Siemens control system,
equipped with high resolution touch screen, the operator can modify
the working parameters of the production line at any time, and can
clearly display the status of each input and output signal, which
is convenient for the routine maintenance of the machine.
- LJBZ2570PG Loading section
- LJBZ2570PG Washing&drying section
- LJBZ2570PG Convey section 1
- LJBZ2570PG Convey section 2
- LJBZ2570PG Inspection and frame installation section
- LJBZ2570PG Flat press loading section
- LJBZ2570PG Glass pressing and filling gas section
LJBZ2570PG Unloading section.
LJBZ2500PG is not suitable for bow glass or twisted glass because
the plane inside the pressing section is immutable.
LJBZ2500PG is a pressing machine with a new filling gas technology.
This equipment is suitable for high and new technology glass
pressing and filling gas machine with various gases or mixed gases.
Because the control system detects preset types of gases (including
mixing ratio of mixed gases) and flow rate before each gas or
mixture is filled with insulating glass.
LJBZ2500PG Glass pressing and filling gas section is suitable for
pressing double IG units or three-layer IG units at the same time.
All kinds of flat glass (including coated glass and glass-clamped
glass) can be pressed by this machine.
LJBZ2500PG can be used to measure the gas concentration of
insulating glass on line. The measuring device in front of the
equipment can accurately measure the size and thickness of the
glass and calculate the amount of gas needed.
LJBZ2500PG can press and fill gas into two pieces of IG units whose
length is less than 1.5m at the same time, which greatly improve
the production efficiency, especially for the glass whose length is
less than 1.5m.
Main Features
• Two pieces of IGU could be pressed and filled gas in once time,
each IGU could fill argon gas over 90%
• Can be better prevented the pressing part to be out of shape by
pressing two pieces of IGU in once time. Can reach 27s for each
1m*1m double glass, improving work efficiency highly
• High-speed IG processing line, we have obtained patent rights in
China in 2019
• From transfer part to pressing part, each part is divided
• Suitable for mass production in a factory. Ultra-fast speed
• Solving the problem of waiting for working on the sealing robot.
Installing two spacer frames for two IGU by one workman
• Automatically measuring glass size and labeling (labeling can be
allowed before pressing and after pressing) with ERP system (Optional)
Technical data
| Max. glass size | 2500mm*7000mm |
| Max glass size for filling gas | 2500mm*7000mm |
| Min. glass size | 280mm*450mm |
| Glass thickness | 3-15mm |
| Insulating glass thickness | 60mm |
| Glass washing speed | 2-10m/min |
| Glass conveyor speed | 45m/min |
| Washing brushes | 3 pairs of soft brushes with 0.1mm hair |
| Water supply | Water consumption:0.5t/h conductivity:40μs/cm |
| Air supply | Flow: 0.8m/min |
| Air pressure | ≥0.8MPa |
| Total power | 3P 380V 50HZ 54.5KW |
| flat glass thickness | 3-30mm |
