Hydraulic Knuckle Boom Crane With Telescopic Jib Machine for Deck
Boat
Product Description

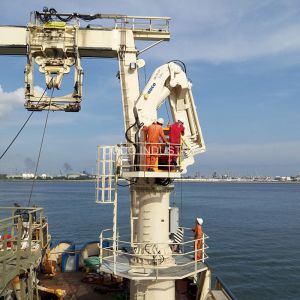

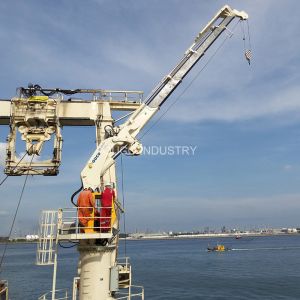

OUCO 2.5T22M knuckle and telescopic was delivered in 3 months time
with full CCS Class and being installed in.
Singapore within 7 days by OUCO service engineers’ guide.
OUCO Marine/Offshore 2.5T foldable crane Knuckle Boom Crane Marine
Crane Pedestal crane
OUCO Marine/Offshore Foldable and telescopic boom compound marine
cranes would be the type of effortless cranes
with foldable and telescopic booms compound, which make full use of
the cranes’ strengths and flexibility when loading
and unloading goods. OUCO Marine group can design the foldable
cranes based on API-2C regulations and rules.
General Arrangement
Specification
| SWL | 2.5T@22M&5T@11M |
| MAX WORKING RADIUS | 22m |
| MIN WORKING RADIUS | 3m |
| HOISTING SPEED | 0~12m/min |
| HOISTING HEIGHT | 30m |
| SLEWING SPEED | ~0.5r/min |
| SLEWING ANGLE | 360° |
| LUFFING TIME | ~ 70s |
| EXTENSION TIME | ~150s |
| WORKING CONDITION | TRIM ≤2° HEEL ≤5° |
| ELEC-MOTOR POWER | Y160K-4-H |
| POWER | 45kw |
| Speed | 1475r/min |
| POWER RESOURCE | AC415V/50HZ |
| PROTECT CLASS | IP56 |
| INSUKATE CLASS | F |
| WORKING TYPE | S1 |
Product Information
Production Process
Company Information
Jiangsu OUCO Heavy Industry And Technology Co.,Ltd
We are an integrated company of industry and trade,our factory
specialize in this field for many years.Our factory
can design andmanufacture any type marine/offshore cranes based on your technical requirements. To deliver the best possible products for the bestpossible price and quality. We are competitive as we have low labor cost, and deliver quality because we use Europeancomponentsin our cranes.Not only to deliver a good product, by experience we know that a crane is a one time investment for a client and howimportant it is to do repairs at location in a short time as most clients have to deal with a high day-rate from their
vessels; “Down-time” is expensive.
Do not be hesitate, please feel free to "SEND" inquiry to us.
FAQ
1. Can this type work in hazardous environment?
Sure! We can customize for you, acid proof or explosion proof, no
problem for that.
2. Can you provide the serious lifting tools?
Sure, we can provide any lift tools such as lift sling belt, lift
clamp, grab, magnet or other specials as your requirement!
3. How can we install the crane?
Our senior engineer can be your side to do the installation guide
service and training. Moreover, our best sales can visit your
country.
4. Safety device
Overload limiter, Limit Switch (lifting and traveling), Interlock
protection device.
