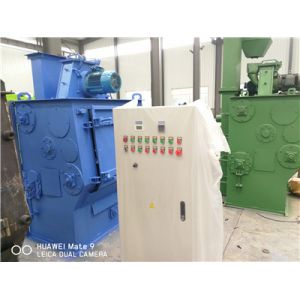

    Drum Blast Cleaning Machine for foundry forging surface preparation

    Ask Lasest Price
    Brand Name : KNNJOO
    Model Number : 8GN
    Certification : CE
    Price : $3240~$5680
    Payment Terms : T/T, Western Union
    Supply Ability : 10 sets per month
    Delivery Time : 45~60 days
    • Product Details
    • Company Profile

    Drum Blast Cleaning Machine for foundry forging surface preparation

    FOR CLEANING DIVERSE WORKPIECES OF APPROXIMATELY THE SAME SIZE AND WEIGHT:


    A specially developed range of standard machines equipped with the unique direct coupling blast wheels which require little maintenance, keep maintenance costs down to an absolute minimum and which ensure the highest possible rate of production is achieved.


    The drum blast cleaning machines are equipped with a perforated rubber belt on which the workpieces tumble and are thus cleaned.


    The machines - the comprehensively detailed specifications of which are to be found overleaf - are manufactured from heavy steel plate, manganese lined on the inside.


    The rubber belt version prevents light, fragile workpieces from being damaged.


    The abrasive flows through the holes in the belt into a collecting hopper and is poured into a storage bunker via the abrasive cleaner by means of an elevator. he newly developed abrasive separators ensure that the abrasive receives optimum cleaning and a high cleaning speed can be achieved.


    The entire assembly complies with the strictest European standards. Thus - for instance - dust emissions from the dust collector are guaranteed to remain below 3 mg/m3.



    Technical Data

    ParameterUnit3GN8GN8GN-5R15GN
    Productivityt/h0.6-1.22-42-33-5
    Feeding Amountkg2206506501000
    Max Weight of SingleWorkpiecekg12323255
    Diameter of end diskmm650100010001150
    Effective volumem30.150.30.30.5
    Abrasive flowrateKg/min180270270300
    Ventilation capacitym32300350035005000
    Total powerkw13.123.227.439.4
