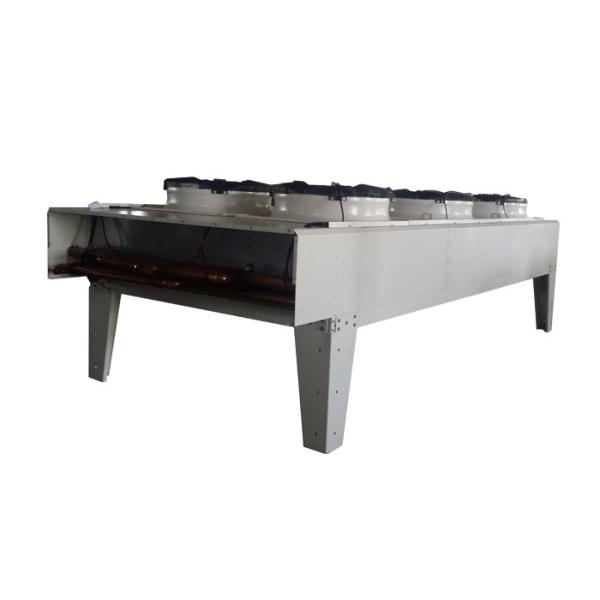

    IP54 Protection Heat Exchanger Flat Air Dry Coolers Rigid Enclosure

    Ask Lasest Price
    Brand Name : Shenglin
    Model Number : SHSL-D2 Series
    Certification : CE and RoHs
    Price : 600~2000 USD/Unit
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 80~100 units per month
    Delivery Time : 35~40 days
    • Product Details
    • Company Profile

    IP54 Protection Heat Exchanger Flat Air Dry Coolers Rigid Enclosure

    Air Cooled Heat Exchanger Flat Series Air Dry Coolers for Industrial Process Cooling


    Features

    High-efficiency heat exchanger: capacity designs for maximizing the heat transfer relative to the energy consumption of the fan. Tube and tube coupling design for low-pressure drop in the coil on the media sides(maximum 100KPa at water designing condition). Our thermodynamic and aerodynamic designing software is long year tested and proved in Germany. Fan: only choose low specific energy consumption fans. Fan nozzle designs for maximum air flow and air throw.Our fans from the world`s leading manufacturer are practically proved to be reliable in operation and long-lasting. Motor: protection class IP 54 and insulation class F. Air separator for each fan. We facilitate you to have a long-lasting and low maintainance operation. Durable material and rigid enclosure with hard gloss powder-coated finish. Protective enclosure for both manifolds and U-bends. Unit design for outdoor installation. 100% leakage tested at 31bar.


    Options
    A. Coil design refrigerant: water, oil, glycol

    B. Multiple circuits

    C. Sub-cooling circuits

    D. Stainless steel or aluminum casing

    E. Coated aluminum or copper fins


    Condition

    Air inlet temp. 25℃; condensing temp. 40℃; refrigerant inlot temp. 65℃; liquid sub-cooling 3K; relative humidity 40%; atmosphere pressure 1 bar (sea level)

    TypeD2-148-4x630D2-166-4x630D2-175-4x630D2-228-6x630D2-250-6x630D2-276-6x630D2-310-8x630D2-343-8x630D2-364-8x630D2-392-10x630
    CapacityWaterKW147.99165.85175.21227.85250.42276.53309.85342.73364.07391.99
    20% Et. GlycolKW142.42161.57170.91219.09244.69270.22301.18333.55354.64383.3
    Air flowM3/h764597434172134114686111511108188152911148675144255191136
    FanNo. X φ2x2x6302x2x6302x2x6302x3x6302x3x6302x3x6302x4x6302x4x6302x4x6302x5x630
    Fan motorA20.420.420.430.630.630.640.840.840.851
    400/3N/50HZ
    Sound pressure leveldB(A)10m64646466666667676768
    DimensionLmm2186218621863250325032504250425042505250
    Hmm1874187418741874187418741874187418741874
    Dmm2100210021002100210021002100210021002100
    D1mm2000200020002000200020002000200020002000
    L1mm963963963963963963963963963963
    L2mm1000100010001000100010001000100010001000
    L3mm1963196319632963296329633963396339634963
    Connections inlet φmm2XDN502XDN652XDN652XDN652XDN802XDN802XDN802XDN802XDN1002XDN100
    Connections onlet φmm2XDN502XDN652XDN652XDN652XDN802XDN802XDN802XDN802XDN1002XDN100
    Product weight(empty)kg7698118531134119712611498158916731864

    TypeD2-426-10x630D2-445-12x630D2-517-12x630D2-525-14x630D2-601-14x630D2-596-16x630D2-692-16x630D2-676-18x630D2-783-18x630D2-921-20x630
    CapacityWaterKW426.15444.78516.67524.7601.41595.59692.11676.02783.03921.23
    20% Et. GlycolKW413.85427.83504.38507.9586.16572.94676.71653.42767.64905.78
    Air flowM3/h182123229377218543267604254816301325290850338987327612351663
    FanNo. X φ2X5X6302X6X6302X6X6302X7X6302X7X6302X8X6302X8X6302X9X6302X9X6302X10X630
    Fan motorA5161.261.271.471.481.681.691.891.8102
    400/3N/50HZkW27.5333338.538.5444449.549.555
    Sound pressure leveldB(A)10m68696970707171727273
    DimensionLmm52506250625072507250825082509250925010250
    Hmm1874187418741874187418741874187418741874
    Dmm2100210021002100210021002100210021002100
    D1mm2000200020002000200020002000200020002000
    L1mm963963963963963963963963963963
    L2mm1000100010001000100010001000100010001000
    L3mm4963596359636963696379637963896389639963
    Connections inlet φmm2XDN1002XDN1002XDN1002XDN1002XDN1252XDN1252XDN1252XDN1252XDN1254XDN1100
    Connections onlet φmm2XDN1002XDN1002XDN1002XDN1002XDN1252XDN1252XDN1252XDN1252XDN1254XDN1100
    Product weight(empty)kg219322242617258632593244372836434226

    4283


    Application:

    Industrial field: process engineering, heat / power plant, power generation, chemical industry, air conditioning chiller, heat transformer, smelting, etc.. It is suitable for all equipment which needs heat dissipation and is installed in the open air


    Reference

    For solar industryCountry: China
    Application :cooling of solar heating system when it is overheated
    Cooling capacity: 463, 933 and 1475kW
    Cooling medium: 50% propylene glycol water
    Supply power: 380V/3P/50Hz
    Fan brand: Ziehl-Abegg
    Altitude:4200m
    Country: Korea
    Application: solar system overheated
    Cooling capacity: 32kW
    Cooling medium: 30% ethylene glycol water
    Supply power: 230V/1P/60Hz
    Fan brand: Chinese brand
    For plastic industryCountry: Algeria
    Application: cooling water from injection molding machine
    Cooling capacity: 694kW
    Cooling medium: water
    Supply power: 400V/3P/50Hz
    Fan brand: Ziehl-Abegg
    Country: Russia
    Application: bathtub factory
    Inlet/outlet air temperature:40℃/66℃
    Inlet/outlet water temperature:85℃/50℃
    Air volume:7986m3/h
    Cooling medium:water
    Supply power: 380V/3P/50Hz
    Fan brand: Chinese brand
