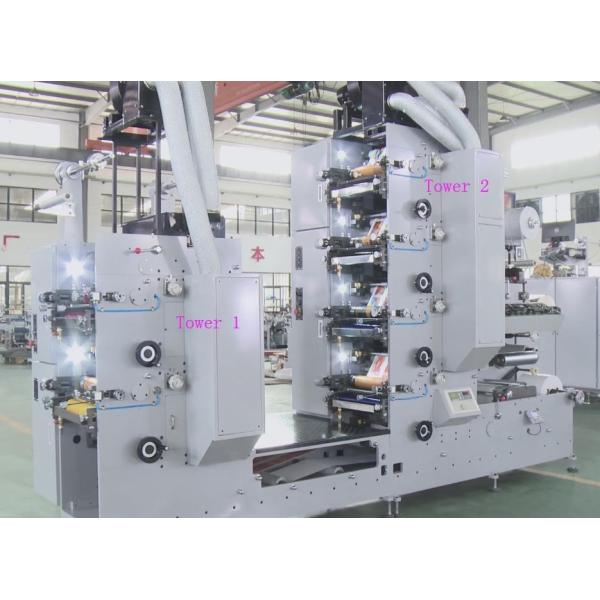

1-6 Colors Adhesive Label Bill Printing Automatic Flexographic Printer
‡ ▽ ‡ ▽ ‡ ▽ ‡ ▽ ‡ ▽ ‡ ▽ ‡ ▽ ‡ ▽ ‡ ▽ ‡ ▽ Features ‡ ▽ ‡ ▽ ‡ ▽ ‡ ▽ ‡ ▽ ‡ ▽ ‡ ▽ ‡ ▽ ‡ ▽ ‡ ▽
1. Adopt the ceramic anilox cylinder to transfer the ink.
2. Unwinding and rewinding are controlled by magnetic powder
brake/clutch.
3. Each printing unit adopts 360°plate adjustment.
4. Each printing unit equips with hot air dryer.
5. This machine with one die-cutting station, which makes printing
and die-cutting can be finished in one process.
6. The ink rollers will be separated from the printing rollers, and
keep running when the machine stops.
7. Main motor use inverter to adjust stepless speed.
8. The machine can finish material-feeding, printing, varnishing,
drying, laminating, rewinding and die-cutting in a lump. It is an
ideal machine for printing adhesive label.
‡ ▽ ‡ ▽ ‡ ▽ ‡ ▽ ‡ ▽ ‡ ▽ ‡ ▽ ‡ ▽ ‡ ▽ ‡ ▽ Specifications ‡ ▽ ‡ ▽ ‡ ▽ ‡ ▽ ‡ ▽ ‡ ▽ ‡ ▽ ‡ ▽ ‡ ▽ ‡ ▽
Automatic Flexographic Label Printing Machine
Model
ECOO-320
Printing Speed
60m/min
Printing Color
1-6 Colors
Max. Web Width
320mm
Max. Printing Width
310mm
Max. Unwinding Diameter
600mm
Max. Rewinding Diameter
600mm
Printing Length
177.8-355.6mm
Precision Of Chromatography
± 0.1mm
Dimensions(L×W×H)
2000 × 1100 × 2600mm
Machine Weight
About 2150kgs
| Automatic Flexographic Label Printing Machine |
| Model | ECOO-320 |
| Printing Speed | 60m/min |
| Printing Color | 1-6 Colors |
| Max. Web Width | 320mm |
| Max. Printing Width | 310mm |
| Max. Unwinding Diameter | 600mm |
| Max. Rewinding Diameter | 600mm |
| Printing Length | 177.8-355.6mm |
| Precision Of Chromatography | ± 0.1mm |
| Dimensions(L×W×H) | 2000 × 1100 × 2600mm |
| Machine Weight | About 2150kgs |
| MAIN CONFIGURATION |
| Description | Brand | Quantity | Origin |
| Printing Roller |
| 3 sets | China |
| Anilox Roller | Auclean/Laser | 1 set | China |
| Unwind Tension Controller | Mitsubishi | 1 set | Japan |
| Rewind Tension Controller | ZXTEC | 1 set | China |
| Main Motor | Wannan | 1 set | China |
| Transducer | Mitsubishi | 2 sets | Japan |
| Magnetic Power Brake/Cluth | Ningxia | 3 sets | China |
| Electromagnetic Valve | Airtac | 2 set | Taiwan |
| Inverter | Schneider | 1 set | France |
| AC Contactor | Schneider | 2 pcs | France |
| Time Relay | C-LIN | 1 pc | China |
| Solid Relay | Omron | 6 pcs | Japan |
| Micro Relay | Weidmiiller | 2 pcs | Germany |
| Temperature Controller | Yuyao | 6 pcs | China |
| Air Switches | Siemen s | 8 pcs | Germany |
| Low Pressure Wiring | Schneider | All | France |
| All The Bearing | NSK/China |
| Japan/China |
‡ ▽ ‡ ▽ ‡ ▽ ‡ ▽ ‡ ▽ ‡ ▽ ‡ ▽ ‡ ▽ ‡ ▽ ‡ ▽ Producing And Packing ‡ ▽ ‡ ▽ ‡ ▽ ‡ ▽ ‡ ▽ ‡ ▽ ‡ ▽ ‡ ▽ ‡ ▽ ‡ ▽
From producing to delivery, we make every details very carefully to
guarantee the good product quality and service to customers.
‡ ▽ ‡ ▽ ‡ ▽ ‡ ▽ ‡ ▽ ‡ ▽ ‡ ▽ ‡ ▽ ‡ ▽ ‡ ▽ Certificates ‡ ▽ ‡ ▽ ‡ ▽ ‡ ▽ ‡ ▽ ‡ ▽ ‡ ▽ ‡ ▽ ‡ ▽ ‡ ▽
‡ ▽ ‡ ▽ ‡ ▽ ‡ ▽ ‡ ▽ ‡ ▽ ‡ ▽ ‡ ▽ ‡ ▽ ‡ ▽ FAQ ‡ ▽ ‡ ▽ ‡ ▽ ‡ ▽ ‡ ▽ ‡ ▽ ‡ ▽ ‡ ▽ ‡ ▽ ‡ ▽
Q1: What are your main products ?
A: Our main products are the Prepress 4up and 8up Online/Offline
Thermal CTP, CTCP, VLF CTP, Flexo CTP, Processor, Offset Plates,
Offset Inks, Offset Printing Blankets, Postpress Packing Equipment
and so on.
You can get the equipment and consumables all in one and no worry
about the after-sales service from our company.
|
|
Q2: Where is your factory ?
A: Our CTP processor machine factory is in Shanghai, you are warmly
welcome to visit our factory!
|
|
Q3: How long is the lead time ?
A: The lead time is normally 30 days. We can accelerate for emergency
cases.
|
|
Q4: Is there any certification for your machine ?
A: Yes, all our machines have been certified by SGS and CE.
|
|
Q5: How long is the warranty period ?
A: EcooGraphix guarantees 1 year of warranty for laser head and spare
parts.
|
|
Q6: What is your normal payment term ?
A: Normally, 30% TT deposit, 70% before shipping, or LC at sight.
|
|
Q7: What about the installation and after-sales technician support
?
A: Our engineer can go to help the installation and provide the
necessary training. The buyer should take the round air plane
tickets, service charge and the local accommodation cost. Any
problems or questions, we will be at your disposal 7x24 hours.
Among our large amount of CTP installations worldwide, there are
also many end users(printers) who have purchased the CTP products
from EcooGraphix China directly and EcooGraphix technical service
team support these installations remotely with regular onsite
visits.
These end users printers all run the CTP systems with full
satisfaction due to our robust quality, seamless remote service,
thorough training and maintanence. If you are a printer who is
considering purchasing directly from EcooGraphix China, there is no
hassle on installations, training and after sales service. We
guarantee your satisfaction.
|
