    SC APC SC UPC G657A2 FTTH Drop Cable Patch Cord Single Mode KFRP

    Ask Lasest Price
    Brand Name : UNIFIBER-OEM
    Model Number : FTTH Drop Cable Patch Cord
    Certification : ROHS
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 1000pcs/day
    Delivery Time : 3~5 business days
    • Product Details
    • Company Profile

    SC APC SC UPC G657A2 FTTH Drop Cable Patch Cord Single Mode KFRP

    FTTH drop cable patch cord is used to connect to the end users' homes, widely applied in access networks and FTTH indoor cabling.They are good to use for fiber to the home last mile solution, it always come with different counts from 1, 2, 4 counts.


    Features

    Good mechanical and enviromental characteristic

    Anti-UV charateristics meet the requirements of relevant standards
    The mechanical charateristics meet the requirements of relevant standards

    Soft ,flexiable ,easy to lay and splice,and with big capacity data transmission
    Meet various requirements of market and clients


    Application

    FTTH (Fiber to the Home)

    CATV System
    Telecommunications
    Optical Networks
    High speed transmission Systems
    Testing instruments


    Specification

    Number of fiber
    1~24core
    strength member
    material
    Galvanized steel wire/FRP/KFRP
    diameter
    2*(0.5~0.8)mm
    Self support Messenger wire
    material
    Galvanized steel wire
    diameter
    1.0mm
    Outer sheath
    material
    LSZH
    diameter
    1.8±0.2mm
    Cable size (Height * width)
    2.0(±0.1) mm × 5.2(±0.2)mm
    Cable sheath thickness
    Max. 0.8mm/Min. 0.4mm
    Messenger sheath thickness
    0.5~0.7mm
    Cable weight
    1~2core
    18.2KG
    4-6 core
    18.5KG
    8~24core
    54KG

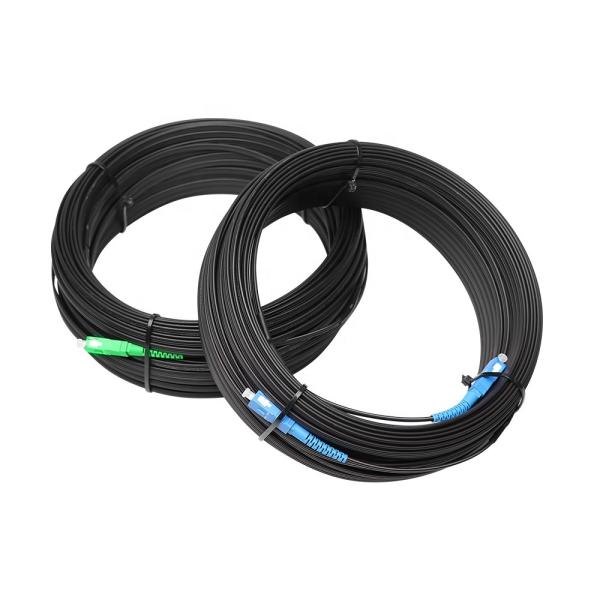

    Quality SC APC SC UPC G657A2 FTTH Drop Cable Patch Cord Single Mode KFRP for sale
