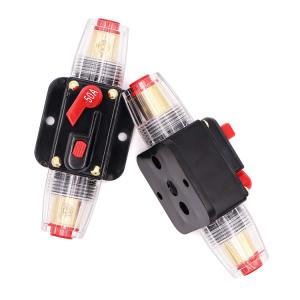

    50 Amp Panel Mount Circuit Breakers Manual Reset Inline Fuse Holder 24V 12V 50A Audio Breakers

    Ask Lasest Price
    Model Number : CB-01-050
    Price : USD $3.5~$5 per piece
    Payment Terms : T/T
    Supply Ability : 1K pieces per week
    Delivery Time : 10 work days
    MOQ : 100PCS
    • Product Details
    • Company Profile

    50 Amp Panel Mount Circuit Breakers Manual Reset Inline Fuse Holder 24V 12V 50A Audio Breakers

    50 Amp Circuit Breaker with Manual Reset Button Inline Fuse Holder 50A for Car Audio Marine Boat Stereo

    Description

    Protection for automotive electronics.

    Prevent car currents from being too high and damaging automotive electronic equipments.

    Item Namecar audio Circuit Breaker
    Reset TypeAuto and manual disconnect, manual reset
    Ur12V 24V
    Ir50A
    Housing MaterialABS
    Protection GradeIP 67
    Wire Gauge1~15AWG
    Ambient Temperature-10C ~ +50C
    ComplianceSAE J1625; ABYC E-11; CE; SAE J1171

    Product Specification:
    1. Material: ABS and zinc alloy
    2. Dimension: 3.85'' (L) x 1.69'' (W) x 1.37'' (H)
    3. Rated Voltage: 12~24V DC
    4. Net weight: 80g
    5. Suitable wire gauge: 1~15 AWG
    6. Operation temperature: -10°C ~ 50°C (-14F to 122F).

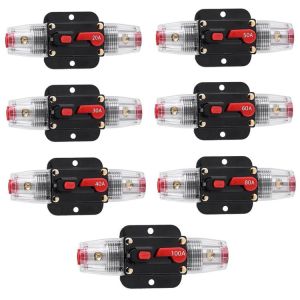

    7. Rated current: 20A 30A 40A 50A 60A 80A 100A 125A150A
    Features:
    Manual disconnecion, push button.
    Self-testing & Manual Override.
    Reset type: Switchable Manual Reset
    Easy to operate with manual reset arm.
    No need to change fuses.
    Can be mounted on panel or firewall.
    Application:
    Suitable for car audio/video system, Boat, trucks, buses, RV's, ATV Winches and marine and DC sound amplifier system overload protection
    50 Amp Overload Protection Switch Audio Circuit Breaker 50A

    Buttom Explanation

    Structure


    Drawing


    Wire gauge specification

    Standard Package

    20pcs per box, 100pcs per carton


    Shipping Term:

    EXW, DDU, DDP, C&F, FOB


    Shipping Methods:

    International Express, By Air, By Sea


    Warmly Reminder:
    1. Please use it under right work temperature, to avoid it is too heat and stop work.
    2. Please correctly push the button to avoid damage the Circuit Breaker.
    • Company warehouse
    FAQ

    Q: Are you trading company or manufacturer ?

    A: We are a fuse product factory.

    Q: How long is your delivery time?

    A: Generally it is 3 days if the goods are in stock, 5-10 days if the goods not in stock, according to the quantity.

    Q: Do you provide samples ? is it free or extra ?

    A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

    Q: What are your terms of payment ?

    A: 100% in advance, T/T.


    50 Amp Boat Circuit Breakers 98mm Length 24V 50A Audio Breakers with zinc alloy Terminal

    Item Namecar audio Circuit Breaker
    Reset TypeAuto and manual disconnect, manual reset
    Ur12V 24V
    Ir50A
    Housing MaterialABS
    Protection GradeIP 67
    Wire Gauge1~15AWG
    Ambient Temperature-10C ~ +50C
    ComplianceSAE J1625; ABYC E-11; CE; SAE J1171

    Circuit Breaker with Manual Reset Fuse Holder for Car Audio Marine Boat Stereo Switch Inverter Replace Fuses


    Circuit Breaker

    for HI-current operation accept two Ring Terminals


    HI-AMP Circuit Breakers
    Auto, Manual, & Switchable Reset
    Available Rating: 20A 30A 40A 50A 60A 80A 100A 125A150A

    Nickel or Gold plated


    Applications:

    Used in auxiliary accessory circuits where you need hi-amp current & protection too. Cars,Trucks, Buses, RV's and Marine applications.
