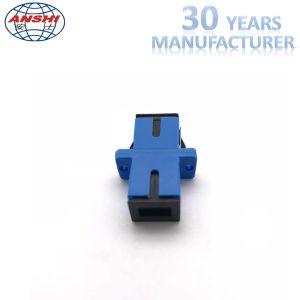

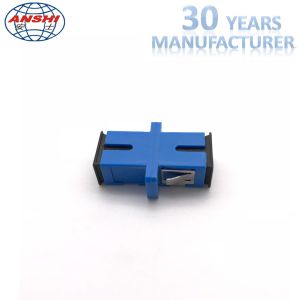

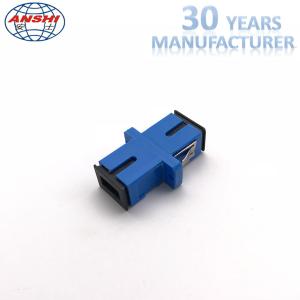

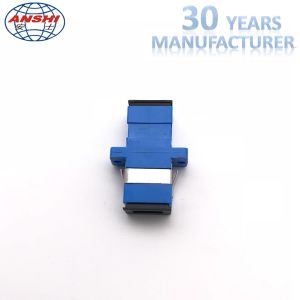

    SC UPC singlemode simplex fiber optic adaptor

    Ask Lasest Price
    Brand Name : ANSHI
    Model Number : AS-ADP-SC/UPC
    Certification : ROHS, ISO9001
    Price : Negotiable
    Supply Ability : 500,000pcs/week
    • Product Details
    • Company Profile

    SC UPC singlemode simplex fiber optic adaptor

    Product Description

    Fiber optic adapters (also known as bulkheads) are used to join two fiber optic patch cables together.

    They are available for use with either singlemode or multimode patch cables.
    Wirenet provides an extensive line of fiber optic adapters that offer superior low loss performance with very high repeatability.
    These products are designed and manufactured to comply with stringent Telcordia 100BaseFX Technologies standards.
    Please call with your specific requirements.
    1. Features:
    • Low insertion loss and back reflection loss
    • Ferrule end surface pre-domed
    • Precision anti-rotation key and corrosion resistant body
    • UL-rated plastic housing
    • Telcordia style boots
    • Free-floating ceramic ferrule
    • Zirconia sleeves or Phosphor bronze sleeves
    • D-shaped easily installs into panel mount
    • RoHS compliant
    2. Applications:
    • Fiber Optic Telecommunications
    • LAN (Local Area Network)
    • FTTH (Fiber To The Home)
    • CATV&CCTV System
    • High speed transmission systems
    • Fiber optic sensing
    • Industtial, Mechanical and Military
    3.Specifications:
    Alignment SleeveCeramic
    Housing MaterialZn-Alloy or Cu-Ni (metal) & Engineering Plastic Blue (plastic)
    Insertion Loss0.30dB max., 0.10dB typ
    Durability500 matings, 0.2dB max. increase
    Retention Force200~600grams
    Operating Temperature-40~+80°C

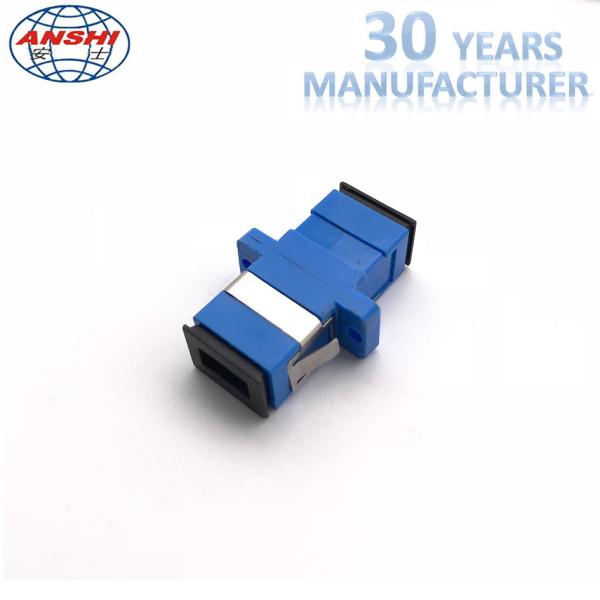

    Quality SC UPC singlemode simplex fiber optic adaptor for sale
