    Cleaning Liquids Transfer Milk Tanker RO CIP Cleaning System

    Ask Lasest Price
    Brand Name : Beyond
    Model Number : BY-CIP
    Certification : CE certificate/ISO9001/SGS
    Price : negotiable
    Supply Ability : 15 pcs per month
    Delivery Time : 60-90 days
    • Product Details
    • Company Profile

    Cleaning Liquids Transfer Milk Tanker RO CIP Cleaning System

    Cleaning Liquids Transfer Milk Tanker RO CIP Cleaning System

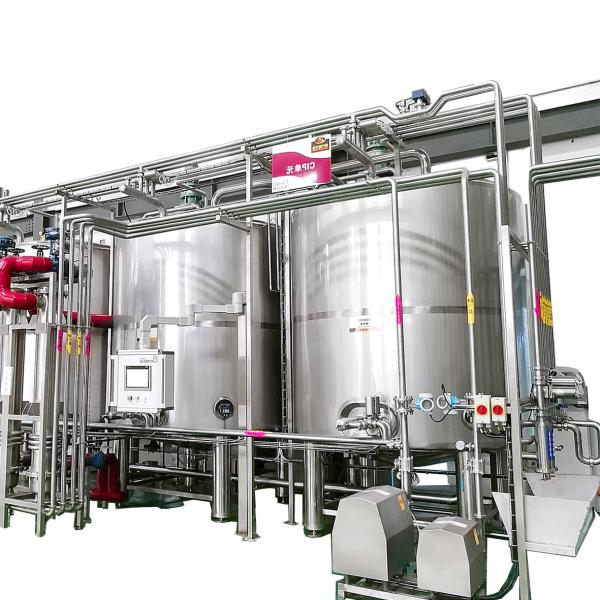

    Semi-auto detached tank type CIP cleaning system

    The heating type for the cleaning liquid is auto-heating. The operating principle: set the cleaning temperature on the temperature controller to control the steam control valve’s opening frequency to limit the steam amount and achieve to the required temperature for cleaning liquid. All the tanks liquid level in the CIP system adopt the auto-alarm. It will be increased to the concentrated acid and alkali through manually way when the cleaning liquid concentration reduced.

    The cleaning process transforming should be operated by the manually to change some relevant pipelines and valves. Workers will need to add the water when the tank is lack of water.

    CIP Tank size1000L-10000L
    CIP tank typeAlkali tank, acid tank, hot water, clean water tank, water recycle tank
    Cleaning recyclesSingle circuit, double circuits, three circuits, four circuits
    Heating methodCoil pipes inside, plate heating ,tubular heating
    Automatic types and characteristicsFull Automatic

    1.Flow rate auto control;

    2. Temperature auto control;

    3. Auto compensate the cip liquid level;

    4. Auto compensate the liquid concentrate;

    5. Cleaning liquids auto transfer;

    6. Auto alarm

    Semi-automatic

    1. Temperature auto control

    2. Electrical control with manual operate the other matters.

    ManualManual operate on the cleaning process

    Quotation For Union CIP
    No.NameModelTechnical SpecificationsQty
    1Union CIP system500L*3
    Inner shell SUS316L, outer shell SUS304, three tanks, semi-auto, heating by steam coil pipe, acid and alkali dosing system, designed with frame supportor.
    1
    2Union CIP system1000L*3
    Inner shell SUS316L, outer shell SUS304, three tanks, semi-auto, heating by steam coil pipe, acid and alkali dosing system, designed with frame supportor.
    1
    3Union CIP system1500L*3
    Inner shell SUS316L, outer shell SUS304, three tanks, semi-auto, heating by steam coil pipe, acid and alkali dosing system, designed with frame supportor.
    1
    4Total:

    1 payment terms: 40%T/T as downpayment; 60% T/T before delivery;
    2 price be valid:30 days since the price date.
    3 delivery period:60 working days from the downpayment and drawing confirmed.


    Related machinery of fruit processing line
    Fruit storage silo-- Washing, sorting machine-- Grading/classifier machine
    Squeeze extractor--Juice refiner-separator-evaporator-- Juice concentrate product
    Fruit flesh/pulp collector-sterilizer--filling machine-fruit flesh
    Essential oil refiner-fruit oil
    Fruit residues collector-animal feed
    Soaking extraction, pre-cooking, pulping, quick freeze, stemmer, ultra-filtration, decolor, destoner, crusher, stone washer, brusher washer, pine apple extractor, refiner, enzymolysis, filtration, CIP cleaning system

    Related machinery of dairy(cheese, butter, milk, yoghurt,cream) processing line
    Large outdoor storage tank, agitator tank, jacket tank, ferment growing tank, emulsification tank, milk weighing, milk receiving/collecting, extracting, pasteurizer yoghurt, UHT, HTST pasteurizer, plate pasteurizer, tubular UHT sterilizer, spraying type pasteurization, cooling tunnel, bottle tilting sterilization chain, CIP cleaning system, full-auto CIP, semi-auto CIP, evaporator, curd cutting, whey draining, cheese making, scalding/stretching/molding, cheese vat, mozzarella cheese, cheddar cheese, blending system, pre-pasteurization, cream separator system, powder melting, dissolving system, homogenizer system, turn-key project.
