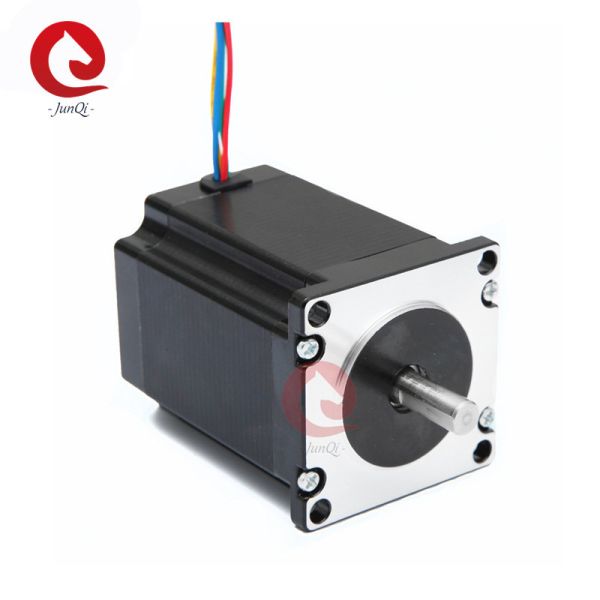

1.8Degree NEMA23 (57mm) High Torque Stepper motor 76mm body length For Laser Engraving Machines
Hybrid stepper motors combine the best features of both the PM and Variable Reluctance stepper motors. This highly reliable technology increases detent and offers high torque and high speed performances. Our 2-phase hybrid stepper motor range offers sizes from 20 to 110mm with 0,9° or 1,8° step angle options.
Quick Details:
| Item | Specifications |
| Step Angle Accuracy | ±5% |
| Resistance Accuracy | ±10% |
| Inductance Accuracy | ±20% |
| Temperature Rise | 80℃ Max |
| Ambient Temperature | -20℃～+50℃ |
| Dielectric Strength | 100MΩMin.500VDC |
| Dielectric Strength | 500VAC for one minute |
| Shaft Radial Play | 0.02Max.(450g-load) |
| Shaft Axial Play | 0.08Max.(450g-load) |
Mechanical Size and Electric Connection:
Electricl Specification:
| Model No | Step
Angle
(°) | Rated
Voltage
(V) | Rated
Current
(A) | Phase
Resistance
(Ω) | Phase
Inductance
(mH) | Torque
(Kg.cm) | Detent
Torque
(g.cm Max) | Rotor
Inertia
(g.cm²) | Motor
Length
(mm) | Leads No. | Motor
Weight
(Kg) |
| JQ57HS41-2004 | 1.8 | 2 | 2 | 1 | 1.2 | 3.2 | 210 | 120 | 41 | 4 | 0.45 |
| JQ57HS41-1004 | 1.8 | 5.4 | 1 | 5.4 | 9.5 | 5.5 | 210 | 120 | 41 | 4 | 0.45 |
| JQ57HS41-2004 | 1.8 | 2 | 2 | 1 | 2.2 | 5 | 210 | 120 | 41 | 4 | 0.45 |
| JQ57HS51-1504 | 1.8 | 2.4 | 1.5 | 1.6 | 3.8 | 8.2 | 360 | 275 | 51 | 4 | 0.65 |
| JQ57HS51-2004 | 1.8 | 2.4 | 2 | 1.2 | 3 | 9 | 360 | 275 | 51 | 4 | 0.65 |
| JQ57HS51-2006 | 1.8 | 2 | 2 | 1 | 1.6 | 7 | 360 | 275 | 51 | 6 | 0.65 |
| JQ57HS56-1504 | 1.8 | 5.7 | 1.5 | 3.8 | 12 | 13.5 | 400 | 300 | 56 | 4 | 0.7 |
| JQ57HS56-3004 | 1.8 | 2.85 | 3 | 0.95 | 2.8 | 12 | 400 | 300 | 56 | 4 | 0.7 |
| JQ57HS56-2006 | 1.8 | 3.6 | 2 | 1.8 | 2.8 | 9 | 400 | 300 | 56 | 6 | 0.7 |
| JQ57HS64-3004 | 1.8 | 3.9 | 3 | 1.3 | 2.2 | 15 | 500 | 380 | 64 | 4 | 0.8 |
| JQ57HS76-2004 | 1.8 | 8.6 | 2 | 4.3 | 16.2 | 24 | 680 | 480 | 76 | 4 | 1 |
| JQ57HS76-3004 | 1.8 | 2.7 | 3 | 0.9 | 3.5 | 20 | 680 | 480 | 76 | 4 | 1 |
| JQ57HS76-4004 | 1.8 | 2.4 | 4 | 0.6 | 2.2 | 20 | 680 | 480 | 76 | 4 | 1 |
| JQ57HS82-3004 | 1.8 | 4.2 | 3 | 1.4 | 5 | 22 | 700 | 510 | 82 | 4 | 1.2 |
| JQ57HS82-4004 | 1.8 | 3 | 4 | 0.75 | 3.5 | 20 | 700 | 510 | 82 | 4 | 1.2 |
| JQ57HS100-3004 | 1.8 | 3 | 3 | 1 | 4.5 | 25 | 1000 | 680 | 100 | 4 | 1.4 |
| JQ57HS112-3004 | 1.8 | 3.9 | 3 | 1.3 | 6.5 | 30 | 1200 | 800 | 112 | 4 | 1.7 |
| JQ57HS112-3504 | 1.8 | 2.45 | 3.5 | 0.7 | 3 | 28 | 1200 | 800 | 112 | 4 | 1.7 |
| Above only for representative products, products of special request can be made according to the customer request. |
**Notes: Above is standard motor, we can be designed &manufactured with customized request!!
