ASME Standard SA516 Gr70 Boiler Steam Drum For Sugar Mill

ASME Standard Water Tube Boiler Steam Drum Made of SA516 Gr70 for Sugar Mill Boiler Replacement

Definition

The boiler steam drum is the most important pressure vessel in industrial boilers for storing hot water and steam. In an industrial boiler pipe system, not all hot water can be fully evaporated into steam, but rather, a mixture of steam and hot water. Because saturated hot water needs more heat for conversion into steam, a boiler steam drum is a required piece of equipment. The steam drum separates hot water and steam, where the mixture still flows back for reheating through a down comer.

A steam drum is a standard feature of a water-tube boiler. It is a reservoir of water/steam at the top end of the water tubes. The drum stores the steam generated in the water tubes and acts as a phase-separator for the steam/water mixture. The difference in densities between hot and cold water helps in the accumulation of the "hotter"-water/and saturated-steam into the steam-drum.

Classification

Accessories

The main components in a boiler system are the boiler feedwater heaters, deaerator, boiler, feed pump, economizer, boiler, superheater, attemperator, steam system, condenser and the condensate pump. In addition there are sets of controls to monitor water and steam flow, fuel flow, airflow and chemical treatment additions.

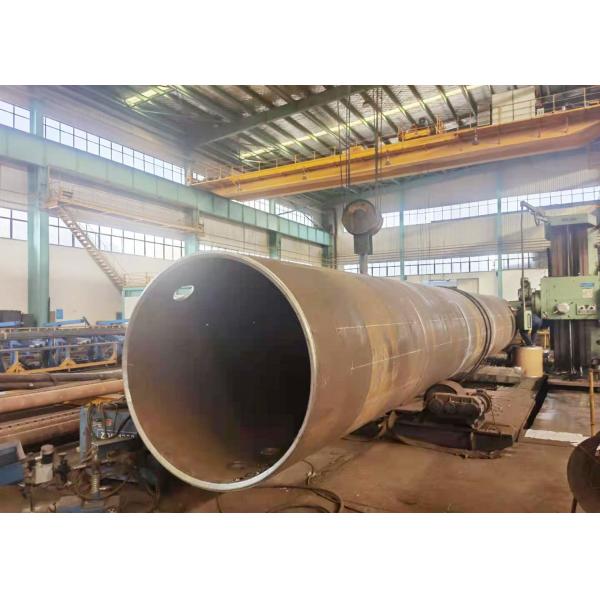

Drilling Processing

We have drilling equipment as below, and can meet high demanding drilling requirements for steam drums.

Hua Dong Boiler Co., Ltd. is a high-tech enterprise specialized in manufacturing boilers. Established in early 1985s, has two manufacturing bases, this company covers 400,000㎡ with fixed assets amounting to USD 110,000,000. There are 1100 employees including 150 technicians and 600 coded welders. Hua Dong holds the manufacturing licenses for Grade A boilers and Grade A1&A2 pressure vessels issued by Chinese General Administration of Quality Supervision, Inspection and Quarantine; also it holds the "S" and "U" "NB" stamps issued by American Society of Mechanical Engineers; meanwhile, this Company has passed the certification of ISO9001, SO3834, EN12952 Quality Management System.

"Hua Dong" boilers include Utility Boiler, HRSG Boiler, coal-fired , oil(gas) -fired, coal-water-slurry-fired and garbage-fired steam/hot water boilers, organic heat carrier boilers, etc., and Boiler spare parts (Economizer, Finned tube, Header, Steam drum, Superheater, Water wall panel, Air preheater, Cyclone separator, etc., which are widely used in power generation, heat supply, chemical engineering, textile, food, paper, road building, plastic, rubber and wood working industries. "HD" boilers are honored as "Famous Production in Jiangsu Province", " Jiangsu High-Tech Product" and "Jiangsu Energy-Saving Product". "HD" brand is a "Famous Brand in Jiangsu Province". We are a qualified supplier for the top three boiler manufacturers in China(Harbin Boiler Co., Ltd., Dong Fang Boiler Group Co., Ltd., Shanghai Boiler Works Ltd.,). So far, Hua Dong Boilers have served 10000 customers, which sell well all over China and are exported to USA, Australia, Russia, Kazakhstan, India, Indonesia, South Africa, Brazil, and Southeast Asia.

We strive to manufacture "Safe, Efficient, Energy-Saving and Environment-Friendly" boilers, provide new-type products in excellent quality, serve users sincerely to their satisfaction, and be a top supplier of boilers in China.

Declaration

Zhangjiagang Hua Dong Boiler Co.,Ltd has no subsidiaries.

Packaging & Shipping

Company Business

Our products have been wildly used in power plants and large international companies overseas.
