2 Digit 7 Segment Led Display , 0.3 Inch Multi Color 7 Segment
Display CC/CA
| Types | Type 1 | Type 2 | Type 3 | Type 4 | Type 5 | Type 5 | customized |
| Digit quantity | 1 digit | 2 digits | 3 digts | 4 digits | 5 digits | 6 digits | customized |
| 0.3 inch 2 Digit 7 Segment Led Display | Symbol | Ratings | Unit |
| Forward Current(per dice) | Ipm | 20 | mA |
| Reverse Voltage(per dice) | Vr | 5 | V |
| Power Dissipation(per dice) | Pm | 80 | mW |
| Operating Temperature Range | Topr | -40～+85 | ℃ |
| Storage Temperature Range | Tstg | -40～+85 | ℃ |
| Solder Temperature(3 sec) | Th | 260 | ℃ |

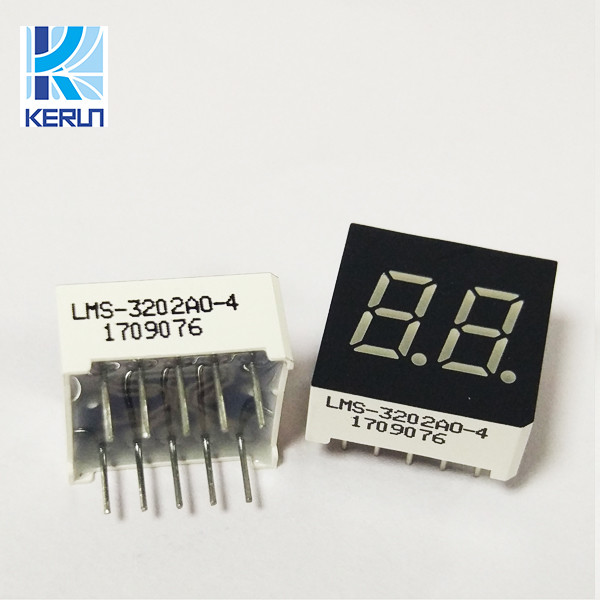

Product show:
| 0.3 inch 2 Digit 7 Segment Led Display | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage(Per dice) | Vf | If=20mA | 1.8 | | 2.5 | V |
| Reverse Voltage(Per dice) | Vr | Ir=10uA | 5 | | | V |
| Luminous Intensty(Per dice) | Iv | If=20mA | 80 | | 100 | mcd |
| Spectrum With Of Half Value | △λ | If=20mA | | 20 | | nm |
| Wavelength | Dλ | If=20mA | 622 | | 625 | nm |
| LED working lifetime 100,000hrs Absolute Maximum Rating at Ta=25℃ |
FAQ
Q1: How can I get the best price?
A1: The price is negotiable. It change according to your quantity
or package.
It will be great if you can provide more product details and
communicate with us which lead us to offer you the best approach.
Q2: Can I get a sample order?
A2: Yes, we welcome sample order to test and check quality.Mixed
samples are acceptable.
Q3: What's your MOQ ? Can I mix types?
A3: Our MOQ is 3000pcs since we are manufacturer; however, for some
of the specific items, the MOQ can be 1000~2000pcs. Please contact
us for details.
Q4: How long to get a sample and the lead time for mass production?
A4: Normall samples lead time is 3~5 days; mass production lead
time is 15~30 working days.
Q5: Can you make customized led display??
A5:Yes, we have advantages in customized led display because we
have R&D center with professional technical team, and we have
more than 10 years experience in this field.
Q6: Do you offer guarantee for the products?
A6: Yes, we offer one year guarantee for the products.
