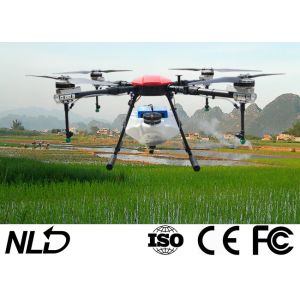

4 Rotors Agriculture Drone Sprayer 10L Water Tank Spraying
Pesticides Disinfectants Ready To Fly
Quick details:
Ready to Fly
Full set 4 rotors drone
Battery: 2*22000mAh
Tank: 10L with spraying system
Remote Controller with 5.5 screen and Android system
Specification:
| Model | NLA410 | NLA416 | NLA610 | NLA616 | NLA622 | NLA630 | NLA650 |
| Rotor | 4 | 4 | 6 | 6 | 6 | 6 | 8 |
Hovering accuracy horizontal | 1.5m | | 1.5m | | | | |
Hovering accuracy vertical | 0.5m | | 0.5m | | | | |
| Wind resistance | 5 | | 5 | | | | |
| Motor | 100KV | | 180KV | | | | |
| Electronic Speed Control | 80A | | 80A | | | | |
| Motor applicable temperature | -20ºC～50ºC | | -20ºC～50ºC | | | | |
| Foldable propeller | 3090 | | 2388 | | | | |
| Water Tank | 10L | | 10L | | | | |
| Working distance | 2000m | | 2000m | | | | |
| Takeoff Capacity | 28kg | | 30kg | | | | |
| Flying Time | 15~20minutes | | 15~20minutes | | | | |
| Flying distance | 5000m | | 5000m | | | | |
| Fly Speed | 0~10m/s | | 0~10m/s | | | | |
| Spray Width | 3~3.5m | | 3.5~4m | | | | |
| Spray Flow | 1.2~2L/min | | 1.2~2L/min | | | | |
| Spray Efficiency | 1000~2100sqm/min | | 1500~2400sqm/min | | | | |
| Expand Size | 1780*1780*567mm | | 1992*1992*562mm | | | | |
| Folded Size | 700*658*567mm | | 945*848*562mm | | | | |
| Wheelbase | 1362mm | | 1407mm | | | | |
| Battery / Quantity | 6S(16000mAh)2pcs | | 6S(16000mAh)2pcs | | | | |
| FPV Camera | Optional | | Optional | | | | |
| Obstacle avoidance radar | Optional | | Optional | | | | |
| Terrain following radar | Optional | | Optional | | | | |
| RTK centimeter positioning | Optional | | Optional | | | | |
1. Intelligent
Low voltage, no signal, return automatically;
Spray flow control;
Fail safe protection;
One-key take off & land;
Autonomous fly with way points controlled by Mobile phone APP
Intelligent automatic obstacle avoidance;
Intelligent terrain following;
RTK centimeter positioning
FPV Camera;
2. Easy to maintain operate and repair
We have office and engineers in Indonesia and India, we supply
local service in this countries. We always utilize high grade
components.
The parts are interchangeable and can be replaced by customer self,
therefore the maintenance costs are very low.
3. Stable
Flight controller Dual CPU configuration, Triple redundant IMU,
Dual redundant barometer;
4. Quality control
Each drone is tested and has to pass through a rigorous quality
control test to confirm it meets the highest standards in
performance and durability.
5. Efficient
Four rotors spraying drone: 8-15acres/hour.
Six rotors spraying drone: 11-18 acres/hour.
6. Effective
The nozzle is under the propeller, the chemical fog can be directly
pressed to all levels of the crop by the strong air flow generated
by the propellers.
7. Good service
Customers can get free training in our company or our international
office; Remote on-line video technical support; One year warranty
for drone frame and three months for wearing parts.
