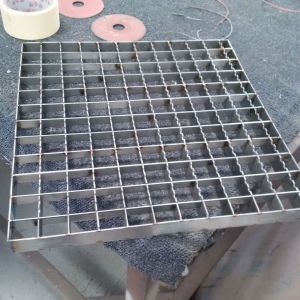

Grating Welding Machine Hwashi Stainless Steel

    Buy cheap Grating Welding Machine Hwashi Stainless Steel from wholesalers

    Buy cheap Grating Welding Machine Hwashi Stainless Steel from wholesalers
    • Buy cheap Grating Welding Machine Hwashi Stainless Steel from wholesalers
    • Buy cheap Grating Welding Machine Hwashi Stainless Steel from wholesalers
    • Buy cheap Grating Welding Machine Hwashi Stainless Steel from wholesalers
    • Buy cheap Grating Welding Machine Hwashi Stainless Steel from wholesalers

    Grating Welding Machine Hwashi Stainless Steel

    Ask Lasest Price
    Brand Name : HWASHI
    Model Number : WL-SP-MF160K
    Certification : CE/CCC/ISO
    Price : negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 50 sets per month
    Delivery Time : 7-30 working days after received your payment
    • Product Details
    • Company Profile

    Grating Welding Machine Hwashi Stainless Steel

    Our machines have been widely applied to various kinds of industries, such as kitchen utensils, automobile making, motorcycle manufacturing, glasses, hardware, household appliances, low-voltage apparatus, elevator, compressor, etc.

    DETAILED DESCRIPTION

    1. This Gantry Row welding machine is specialized in fast production of wire mesh. It is suitable for the product with more y wire and less x wire.

    2. The welding power source could be two-phase AC or three-phase MF DC. The welding manner is one-way double-layer automatic stepping feeding with multiple welding heads. (adjustable according to your product)

    3. The effective welding width is 1200mm while the effective welding length is 3000mm. (adjustable according to your product)


    Features

    1. Main body: It adopts longitudinal stress body and good quality thick steel plate to ensure the strength and stability of the main body.

    2. Welding Control System: The secondary which is controlled by microcomputer will identify the output of current automatically in order to guarantee the constant current of each welding spot. In the meantime, the control system is equipped with the function of voltage compensation which is used for the automatic detection of the voltage change in order to ensure the constant strength of the welding spot.

    3. Pressurized Mechanism: Multiple pressurized mechanisms are adopted to drive the row welding electrodes to conduct welding to each wire respectively.


    APPLICABLE AREA

    Suitable for batch production of wire mesh.


    TECHNICAL PARAMETERS

    No.

    S.N

    ItemSpecificationDescription
    1Input voltage380V ,2-phasesIt can be customized, but only for 2-phases.
    2

    Input current


    400A
    3

    Output voltage


    12V
    4

    Max.Welding current


    34000A
    5

    Effective welding width


    1200mm (ajustable)
    6

    Effective welding length


    3000mm (ajustable)
    7

    Feeding Rack Mobile speed


    0.5m/secServo motor transmitting
    8

    Upper welding air cylinder


    100x100mmDouble force pressing cylinder
    9Lower cylinder

    160x100mm
