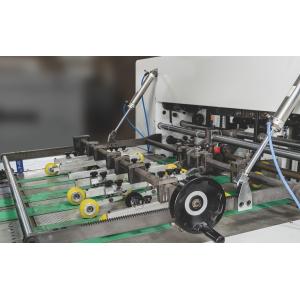

Hot Stamping Paper Sheet Cutting Machine 7000S/H With Holographic

    Buy cheap Hot Stamping Paper Sheet Cutting Machine 7000S/H With Holographic from wholesalers

    Buy cheap Hot Stamping Paper Sheet Cutting Machine 7000S/H With Holographic from wholesalers
    • Buy cheap Hot Stamping Paper Sheet Cutting Machine 7000S/H With Holographic from wholesalers
    • Buy cheap Hot Stamping Paper Sheet Cutting Machine 7000S/H With Holographic from wholesalers
    • Buy cheap Hot Stamping Paper Sheet Cutting Machine 7000S/H With Holographic from wholesalers
    • Buy cheap Hot Stamping Paper Sheet Cutting Machine 7000S/H With Holographic from wholesalers
    • Buy cheap Hot Stamping Paper Sheet Cutting Machine 7000S/H With Holographic from wholesalers
    • Buy cheap Hot Stamping Paper Sheet Cutting Machine 7000S/H With Holographic from wholesalers
    • Buy cheap Hot Stamping Paper Sheet Cutting Machine 7000S/H With Holographic from wholesalers
    • Buy cheap Hot Stamping Paper Sheet Cutting Machine 7000S/H With Holographic from wholesalers
    • Buy cheap Hot Stamping Paper Sheet Cutting Machine 7000S/H With Holographic from wholesalers
    • Buy cheap Hot Stamping Paper Sheet Cutting Machine 7000S/H With Holographic from wholesalers
    • Buy cheap Hot Stamping Paper Sheet Cutting Machine 7000S/H With Holographic from wholesalers
    • Buy cheap Hot Stamping Paper Sheet Cutting Machine 7000S/H With Holographic from wholesalers
    • Buy cheap Hot Stamping Paper Sheet Cutting Machine 7000S/H With Holographic from wholesalers

    Hot Stamping Paper Sheet Cutting Machine 7000S/H With Holographic

    Ask Lasest Price
    Brand Name : PRINTYOUNG
    Model Number : AEMG-1080T
    Certification : CE
    Price :
    Payment Terms : L/C, T/T
    Supply Ability : 10 Set/Sets per Year
    Delivery Time : 45 days
    • Product Details
    • Company Profile

    Hot Stamping Paper Sheet Cutting Machine 7000S/H With Holographic

    Features
    ★ Equipped with imported feeder, high accuracy and stability. Easy adjustment can fit both thick and thin paper.
    ★ Cast iron feeder wall plate, high stability, fit high speed running.
    ★ Pattern stainless conveyor table. Good appearance, high durability, makes the feeding more smoothly.
    ★ Imported thin conveyor belt.
    ★ Conjugate cam front lay positioning system, improve the accuracy and can avoid from fault.
    ★ Enhanced gripper chainwheel, ensure high speed running.
    ★ Delivery brush adjusted with outer device, more convenient.
    ★ Air blower auxiliary delivery system, ensure thin paper can be neatly delivered in high speed.
    ★ Servo controlled ball screw pressure adjustment mechanism.
    ★ Dual lubrication system, ensure the lubrication.
    ★ Enhanced wall plate.
    ★ New appearance.
    ★ Synchronized belt cam box, equipped with torque limiter.
    ★ Non-stop feeding, pre-stacking and delivery mechanism can shorten the auxiliary time, improve the efficiency.
    ★ Human-friendly designed die frame and baseplate, makes installation, adjustment convenient. (Pre make ready device as option)
    ★ Front lay, side lay, feeding device fine tuning device, paper positioning more accurate.
    ★ Double, crooked, empty optoelectronic position control, ensure the paper in the right position, reduce waste.
    ★ Touch screen man-machine interface, real-time monitor the running situation, makes machine adjustment, trouble shooting more convenient.
    ★ Adopt imported server control system for foil stamping, feeding and collecting aluminum foil accurately.
    ★ Adopt industrial tablet PC, touch screen input data, automatic programming, greatly saving aluminum foil.
    ★ Cycling cooling oil supply system ensure the movement parts get adequately lubricated to ensure the durability.
    ★ Adopt fixed quantity at fixed timing oil supply system, ensure the movement parts get adequately lubricated to let better durability.
    ★ Vertical holographic sensor for holographic foils.
    Technical Parameters
    AEMG-T Hot Stamping and Die Cutting Machine
    Max sheet size
    1080 x 780 mm
    Min sheet size
    400 x 300 mm
    Max die cutting area
    1075 x 770 mm
    Die chase inner size
    1100 x 790 mm
    Cutting plate size
    1080 x 780 mm
    Max stamping area
    1060 x 760 mm
    Min gripper margin
    7 mm
    Cutting precision
    ≤±0.1 mm
    Stamping precision
    ≤±0.1 mm
    Holographic sensor precision
    ≤±0.05 mm
    Max cutting speed
    300 T
    Max cutting speed
    7000 S/H
    Max bronzing speed
    6500 S/H
    Foil roll max diameter
    Φ250 mm
    Vertical foil width
    15~1060 mm
    Horizon foil width
    15~760 mm
    Vertical foil axle
    3 pcs
    Vertical holographic sensor
    3 pcs
    Horizon foil axle
    2 pcs
    Heating area
    12 pcs
    Temperature range
    50~199 ℃
    Pre-stacking height
    1550 mm
    Delivery stack height
    1500 mm
    Application
    Cardboard: 0.1～2 mm
    Corrugated paper: ＜4 mm
    Main motor power
    11 KW
    Heating area power
    24 KW
    Total power
    60 KW
    Dimension
    5600(+1600)x2550(+1400)x2600 mm
    Weight
    18 T
    Configuration

    1. Feeding section

    1.1 Hi-end imported feeder, 4 lift 4 forwarder, the sucker can be adjusted according to different paper, ensure smoothly feeding for thin paper and thick paper.
    1.2 Blower on both side for separating the paper.
    1.3 Ductile iron wall plate.
    1.4 Electromechanical double sheet detector.
    1.5 Slope conveyer table, fit thin paper in high speed condition, fine tuning speed regulator can be no-stop adjusted.
    1.6 Double side lay with photoelectric sensor.
    1.7 Brush wheel and rubber wheel can be adjusted together, improve the efficiency.
    1.8 Ultra anti-worn feeding rubber wheel.
    1.9 Main/ auxiliary feeding non-stop switch.
    1.10 Static electricity eliminator device, ensure the smoothly feeding.

    2. Die cutting section

    2.1 Pressure bearing parts are enhanced high strength ductile iron QT500, high strength and never deform.
    2.2 Special processed alloy crank shaft.
    2.3 Ultra anti-worn worm and worm gear.
    2.4 Pneumatic clutch and SMC rotary joint imported form Japan.
    2.5 Oil and air pressure meter to monitor the oil pressure and air pressure, in case of low pressure, the machine will alarm and stop.
    2.6 High accuracy cam box.
    2.7 Die chase in position detector, improve the accuracy, pneumatic chase lock system, electrical pressure adjustment.
    2.8 HRC50-53 die cutting plate.
    2.9 Pre stretched imported gripper chain, improve the accuracy and stability, improve the accuracy and stability, special side positioning device ensure all the grippers are in one line.
    2.10 Ultra hard TI-AL alloy gripper bars.

    3. Hot stamping section

    3.1 Input data in the industrial PC, the machine can automatic calculate the step distance, saving foil.
    3.2 Imported servo motor and control system, feeding and collection of foil will be more convenient.
    3.3 Temperature of 12 heating zone can be adjust separately, can fit more complicated products.
    3.4 Electrical pressure control system, when there is no paper in the punching section, there is no pressure.
    3.5 Blower device to device the paper and foils.
    3.6 Foil breaking detected system.
    3.7 Inner and outer foil collection device.
    3.8 Special material honeycomb plate, makes the make ready job more convenient.

    4.Delviery section

    4.1 Automatic aligning device, blower in both side can ensure the thin and thick paper can be neatly delivered.
    4.2 Touch screen monitor in delivery section indicates the necessary data, and be adjust by touching.
    4.3 Photoelectric sensor ensures the neat delivery.
    4.4 Automatic delivery lift control system.
    4.5 Manual auxiliary delivery device.
    4.6 Main chain protection deivce.
    4.7 Delivery failure alerm.
    5. Optional pre make ready device

    Q1: Are you a manufacturer or a trading company?

    A: Our shanghai office is mainly doing export. We have our own factory in Wenzhou, Zhejiang Province.

    Q2. What is the machine warranty?

    A: One year. After the warranty, we still provide technical support to buyer at low cost.

    Q3. What is the production time while placing order?

    A: Normally about 10-20 days.

    Q4. What is the delivery time?

    A: 15-30days after deposit.

    Q5. Can your company handle shipping for customers?

    A: Yes, just give us destination sea port or container yard.

    Q6. Does the packing strong?

    A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included..

    Q7. How about the machine installation and training ?

    A: 1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training. You shall pay the round trip air fare and accommodations, plus each technician charges USD100/per day.

    Q8. Do you have machines in stock?

    A: For standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.

    Q9. How can you assure the machines’ quality?

    A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty, we will give spare parts for free if machine has any problem.

    Q10. Do you inspect machines or test running before packing?

    A: Of course we do. We have QC department to debug the machine before packing. If you want to use specific material to do the test running, you need to pay for the cost of the material

    Q11. What’s the payment term?

    A: T/T 30% in advance, the balance shall be paid before delivery. We also accept payment by West Union or L/C at sight.

    Q12. Do you accept factory visiting?

    A: Warmly welcome for your visiting.

    Q13. How many years are you in printing field?

    A: Shanghai company is 12 years old, the factory is more than 20years.

    Q14. How many clients do you have?

    A: We have sold our machines to about 60 countries. We have agents in South Africa, Morocco and Italy.
