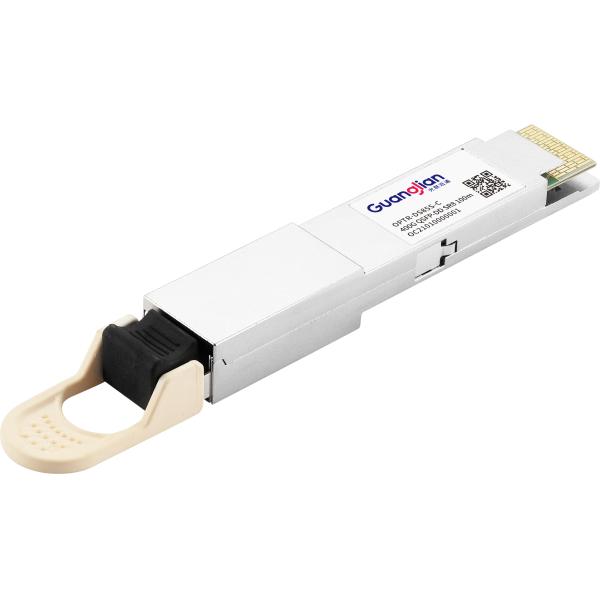

    OM3 400G QSFP DD Transceiver SR8 100m 8x50G Optical Transceiver Module

    Ask Lasest Price
    Brand Name : Guanglian
    Model Number : OPTR-DS85S-C
    Price : Contact for quotation
    Payment Terms : Western Union, T/T, D/P, L/C
    Supply Ability : 3k/month
    Delivery Time : Contact for lead time
    • Product Details
    • Company Profile

    OM3 400G QSFP DD Transceiver SR8 100m 8x50G Optical Transceiver Module

    400G QSFP-DD DR4 500m optical transceiver


    Guanglian’s 400GBASE-SR8 optical transceiver module supports link lengths of up to 100m over multimode fiber (MMF) with MTP/MPO-16 connector. It is compliant to IEEE 802.3bs protocol and 400GAUI-8/CEI-56G-VSR-PAM4 standard. The 400 Gigabit Ethernet signal is carried over eight wavelengths. Multiplexing and de-multiplexing of the eight wavelengths are managed within the device. It is suitable to be used in various applications, such as data centers, high-performance computing networks, proprietary Interconnections etc.


    Product Features

    COB (Chip on Board) packaging technology

    Supports 400Gbps aggregate bit

    Low Power Dissipation ≤12W

    MPO-12 Two Row receptacle

    Up to 70m transmission with OM3 multi- mode fiber

    and 100m transmission with OM4 multi-mode fiber.

    8x50G PAM4 VCSEL/PIN photo detector

    Operating Case Temperature: 0~70℃


    Application

    400GBASE-SR8 Ethernet

    Data Center

    HPC Interconnects

    Proprietary Interconnections
