6mm Shank Tungsten Carbide Bur Carbide Rotary Files Rotary Burrs
For Cutting Metal

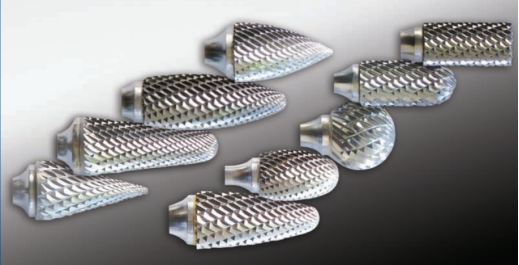

Tungsten carbide burr cutters:
1. Tungsten carbide burs keep on excellent quality
2. More than 100 specifications is developed to satisfy your fully
professional requirement on grinding;
3. You can choose 3 different surface color (self-colored & not
plated; Silver & nickel plated; Gold & Ti plated);
4. Keep the surface clean (Oil on surface have been got rid of by
Ultrasonic);
5. Carbide bur got different shapes, you can choose sizes, grain &
length)
For example one item:
Item code: E122006
Shape: Oval
Material: Tungsten Carbide
Head Size:12x20mm
Shank Size: 2.35mm(3/32"), 3.0mm, 3.17mm(1/8"). ,6.0mm, 6.35(1/4")
and 8mmFlute: 5-Axis CNC grinding Machine made, Double Cut
Grade: YG8 orYG6 both available
Welding: Silver Welding
Product Description
The Rapid Abrasives Cylindrical Double Cut Carbide Burr is built to
grind flat surfaces on metal and non-ferrous metal applications.
Build
Excellent for light to medium material removal.
This solid carbide burr is double cut with a chisel tooth cutting
pattern that produces small chips instead of long, sharp slivers
which help to finish the metal surfaces faster, eliminates loading
and minimizes chatter to provide a smooth cutting experience.
Operation
Moving the burr over the surface gradually will help remove only
the material wanted and will help prevent the burr from making
divots and unsightly marks.
To extend the life of the burr, only apply enough pressure to let
the burr do the work. This eliminates unnecessary wear to the burr.
Technical date
| S.N. | MATERIAL |
| 1a | Steel |
| 1b | Hard steels |
| 2 | Stainless steel |
| 3 | Cast iron |
| 4 | Titanium |
| 5 | Nickel |
| 6 | Copper/Copper alloys |
| 7 | Aluminum |
| 8 | Plastics |
| 9 | Cement |
Guide to running speeds
mat nr. MAX RPM | 3mm/0.123" 90,000 | 6mm/0.250" 50,000 | 10mm/0.375" 40,000 | 12mm/0.500" 35,000 | 16mm/0.625' 25,000 |
| 1a | 60,000-80,000 | 35,000-45,000 | 22,500-35,000 | 20,000-30,000 | 15,000-20,000 |
| 1b | 60,000-80,000 | 30,000-45,000 | 19,000-30,000 | 15,000-22,500 | 12,000-18,000 |
| 2 | 60,000-80,000 | 30,000-45,000 | 19,000-30,000 | 15,000-22,500 | 12,000-18,000 |
| 3 | 45,000-80,000 | 22,500-45,000 | 15,000-35,000 | 11,000-30,000 | 9,000-20,000 |
| 4 | 60,000-80,000 | 30,000-45,000 | 19,000-30,000 | 15,000-22,500 | 12,000-18,000 |
| 5 | 60,000-80,000 | 30,000-45,000 | 19,000-30,000 | 15,000-22,500 | 12,000-18,000 |
| 6 | 45,000-80,000 | 22,500-45,000 | 15,000-35,000 | 11,000-30,000 | 3,000-20,000 |
| 7 | 30,000-80,000 | 15,000-45,000 | 10,000-35,000 | 7,000-30,000 | 6,000-20,000 |
| 8 | 30,000-80,000 | 15,000-45,000 | 10,000-35,000 | 7,000-30,000 | 6,000-20,000 |
| 9 | 60,000-80,000 | 30,000-45,000 | 19,000-30,000 | 15,000-22,500 | 12,000-18,000 |
Our factory
ZIGONG(CHENGDU) JOINT CARBIDE CO., LTD is subsidiary of ZIGONG JOINT CARBIDE CO., LTD a professional
manufacturer of tungsten carbide rotary tools and carbide material.
We have two subsidiary companies, one is in Chengdu city, Sichuan
Province and the other one is in Zigong City, Province.
Founded in 2007 at Zigong City, Sichuan Province. In China, we are
the exclusive factory who has equipments from raw material to
finished tools producing. Including Inclinable Wet Milling,
Pressing, Low Pressusring Sintering, Five-axis CNC, Electronic Tool
Surface Scanner, Hard and TRS Testor. The main products include
Carbide burr/ Carbide burr blank/ Carbide rod, and Carbide nozzle. We exported to North America, Europe, Asia and so on. We've been
contributing to make high class cheap products to the world.
