    ATS ATU 30A Brass Automotive Fuse Box Clips Nylon 0.3MM Car Fuse Clip

    Ask Lasest Price
    Brand Name : AMPFORT
    Model Number : A-506
    Certification : ROHS
    Price : Negotiable
    Payment Terms : T/T,Paypal, Western Union
    Supply Ability : 7,000,000 Pieces Per Month
    Delivery Time : 7-10 Workdays
    • Product Details
    • Company Profile

    ATS ATU 30A Brass Automotive Fuse Box Clips Nylon 0.3MM Car Fuse Clip


    Universal Female Vertical Horizontal Entry Brass ATS ATU Auto Blade Fuse Clip


    Description


    Fuse holders are devices for containing, protecting and mounting fuses. Fuse holders come in two basic types, open or fully enclosed. Open fuse holder types are fuse clips, fuse blocks, socket and plug-on cap varieties. The fully enclosed variety may use a fuse carrier that is inserted into a holder or have other means to fully enclose the fuse.


    Automotive Blade Fuse Clips


    * For Mini Blade Fuses
    * PCB Mountable for Reliable Connection and Security
    * Surface and Thru-Hole Mount Styles Available
    * Fuse Reference: Littelfuse 297 or 997 series / Bussmann ATM series / APM / or equivalent

    * Common features for fuse holders include waterproof, vibration resistant, and blow fuse indicator.


    A-506D P.C.B moun Fuse Clip for ATS Blade fuse


    P/NA-506D
    NameMini Blade Fuse Clip
    Stuitable FuseATS/297 Mini Auto Fuse
    Max current15A
    MaterialBronze
    Thickness0.3mm
    Body materialNylon UL 94V0
    Voltage Rating32V

    A-506F P.C.B moun Fuse Clip for ATU Blade fuse


    NameRegular Blade Fuse Clip
    P/NA-506F
    Stuitable FuseATU/287 Standard Auto Fuse
    Max current15A
    MaterialBronze
    Thickness0.3mm
    Body materialNylon UL 94V0
    Voltage Rating32V

    A-506K FUSE CLIP P.C.BOARD TYPE FOR ATS BLADE AUTO FUSES


    NameMini Blade Fuse Clip
    P/NA-506K
    Stuitable FuseATS/297 Mini Auto Fuse
    Max current15A
    MaterialBronze
    Thickness0.3mm
    Body materialNylon UL 94V0
    Voltage Rating32V
    FinishBright Tin plated
    Insertion & Extraction Force1kg min.

    A-506M FUSE CLIP P.C.BOARD TYPE FOR ATU BLADE FUSES


    NameRegular Blade Fuse Clip
    P/NA-506M
    Stuitable FuseATU/287 Standard Auto Fuse
    Max current15A
    MaterialBrass or Phosphor bronze
    Thickness0.3mm
    Body materialNylon UL 94V0
    Voltage Rating32V
    FinishTine plated
    RemarkEar or earless type,with axial and direction tags

    A-506M-1 FUSE CLIP P.C.BOARD TYPE FOR ATU BLADE FUSES


    NameRegular Blade Fuse Clip
    P/NA-506M1
    Stuitable FuseATU/287 Standard Auto Fuse
    Max current30A
    MaterialBrass
    Thickness0.4mm
    Body materialNylon UL 94V0
    Voltage Rating32V
    FinishBright Tin plated
    Terminal clip extraction force3.2±1 kg

    A-506N FUSE CLIP P.C.BOARD TYPE FOR ATS BLADE AUTO FUSES


    NameMini Blade Fuse Clip
    Stuitable FuseATS/297 Mini Auto Fuse
    P/NA-506N
    Max current15A
    MaterialBronze
    Thickness0.3mm
    Body materialNylon UL 94V0
    Voltage Rating32V
    FinishTin or nickel plated
    MarkEar or earless type,with axial and direction tags

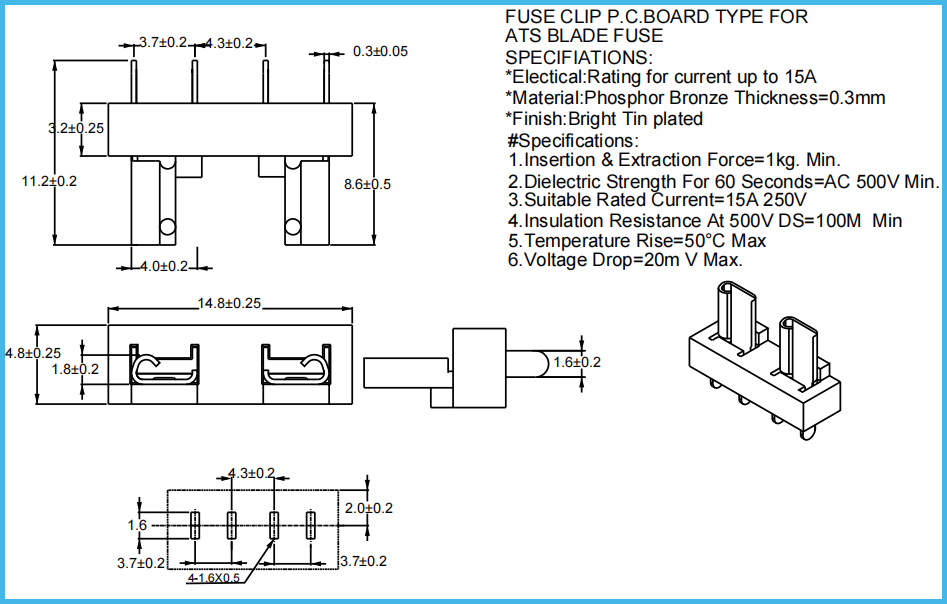

    A-506P FUSE CLIP P.C.BOARD TYPE FOR ATS BLADE AUTO FUSES


    NameMini Blade Fuse Clip
    Stuitable FuseATS/297 Mini Auto Fuse
    P/NA-506P
    Max current15A 250V
    MaterialPhosphor Bronze
    Thickness0.3mm
    Insulation Resistance At 500V DC100M Min
    Voltage Rating32V
    FinishBright Tin plated
    Temperature Rise50°C Max
    Dielectric Strength For 60 SecondsAC 500V Min.
    Insertion & Extraction Force1kg. Min

    A-506PA FUSE CLIP P.C.BOARD TYPE FOR ATS BLADE AUTO FUSES


    NameMini Blade Fuse Clip
    P/NA-506PA
    Stuitable FuseATS/297 Mini Auto Fuse
    Max current15A 250V
    MaterialPhosphor Bronze
    Thickness0.3mm
    Insulation Resistance At 500V DC100M Min
    Voltage Rating32V
    FinishBright Tin plated
    Temperature Rise50°C Max
    Dielectric Strength For 60 SecondsAC 500V Min.
    Insertion & Extraction Force1kg. Min
    Voltage drop20m V Max.

    Mounting


    Mounting choices for fuse holders include fuse block, fuse clip, panel mount, PC mount, snap mount, and in-line mount. Important environmental parameters to consider when specifying fuse holders include operating temperature.
