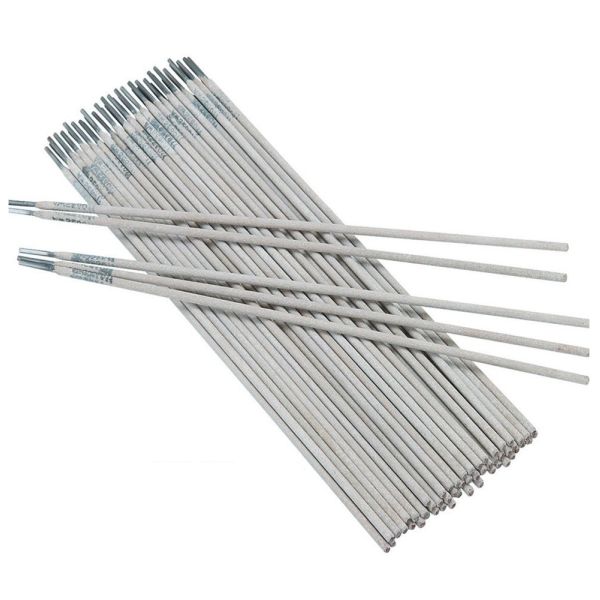

    Cs Welding Rod For Low Carbon Steel Welding Electrodes J502

    Ask Lasest Price
    Brand Name : LONGTENG
    Model Number : LT·J502
    Certification : TUV CE, ABS, DB, ISO9001,CCS
    Price : USD 1
    Supply Ability : 1,200,000 TON PER YEAR
    Delivery Time : 15 WORKING DAYS
    • Product Details
    • Company Profile

    Cs Welding Rod For Low Carbon Steel Welding Electrodes J502

    LT·J502 2.0/2.5/3.2/4.0/5.0 mm Carbon Steel Electrodes


    E5003( ESJ502) is titanium skin of calcium medicine carbon steel electrode, ac/dc use, can all position of welding, arc stability, little splash, easy to take off the slag, weld moulding beauty. USES: It is mainly used in the same level of common low carbon steel and low alloy steel welding.


    E5003 Carbon Steel Welding Electrode is used for welding low-alloy high strength steel of 50KG grade (490MPa).
    Conform with: GB E5003 JIS D5003
    E5003 Carbon Steel Welding Electrode J502 mainly used for welding 490MPa tensile strength low-alloy steel structures, such as welding on deformed steel bars for construction and other steel of 16Mn type, etc.
    Chemical composition of deposited metal


    LT·J502 Conform to Standard

    GB/T 5117 E5003

    ISO 2560-B-E 49 03 A


    Purpose:Used for welding all kinds of 490MPa low-alloy structures


    Mechanical Properties of Deposited Metal


    Test ItemRm(MPa)ReL(MPa)A(%)KV2(J)
    0℃
    Guarantee Value≥490≥400≥20≥47
    General Result5304402685

    Chemical Composition(%)

    Chemical CompositionCMnSiSPNiCrMoV
    Guarantee Value

    0.15

    1.25

    0.90

    ≤0.035≤0.040

    0.30

    0.20

    0.30

    0.08

    General Result0.950.720.270.0150.0220.0250.0360.0100.008


    X-Ray Radio-graphic Test Requirements:Grade II

    Reference Current(AC,DC)

    Diameter(mm)Φ2.5Φ3.2Φ4.0Φ5.0
    Amperage(A)60~10080~140140~220180~240
