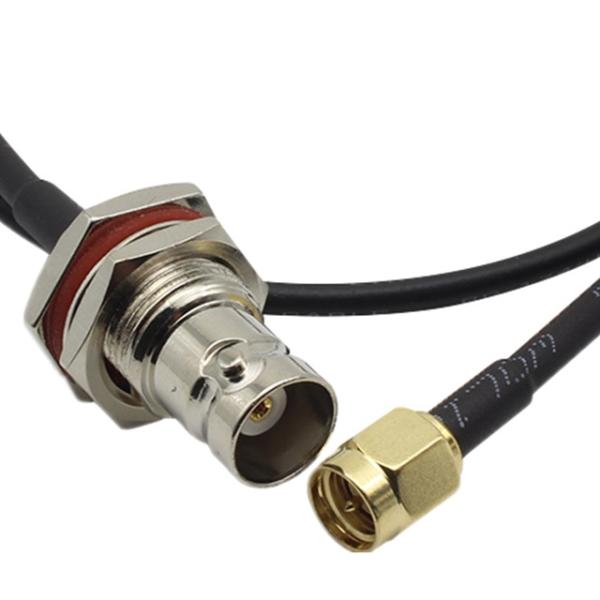

Waterproof Bulkhead BNC Female Jack To SMA Male RF RG174 RG58
Antenna Pigtail Cable
Products Feature:

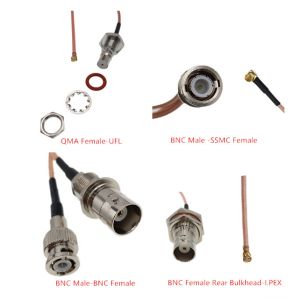

| Connector Type | BNC / TNC / SMA / SMB / SSMB / SMC / SMP / F / N / MCX / MMCX /
1.0/2.3 / UHF / RCA / IPEX / FME / TS9 / CRC9 / AVIC / FAKRA / HSD
/ etc |
| Gender | Male / Female |
| Orientation | Straight / Right Angle |
| Polarity | Standard / RP |
| Impedance | 50Ohm / 75Ohm |
| Cable Type | 0.81 / 1.13 / 1.37 / RG6 / RG11 / RG58 / RG59 / RG141 / RG142 /
RG174 / RG178 / RG179 / RG188 / RG223 / RG316 / RG400 / RG401
/RG402 / RG405 / LMR100 / LMR195 / LMR200 / LMR400 / etc |
| Cable Colours | Black / White / Gray / Blue / Brown / etc |
| Cable Length | 5CM / 10CM / 15CM / 50CM / 100CM / etc |
1. SMA connector
The applicable frequency range is 0~18GHz. It is an ultra-small,
suitable for semi-rigid or flexible radio frequency coaxial cable
connection. It has the characteristics of small size, superior
performance, high reliability, and long service life. However, the
ultra-small connectors are easily damaged in engineering and are
suitable for microwave applications that require high performance,
such as the internal connection of microwave equipment.
2. BNC Connector
The applicable frequency range is 0-4GHz. It is a coaxial cable
connector with a bayonet connection mechanism for low power. This
kind of connector can be quickly connected and separated, has the
characteristics of reliable connection, good vibration resistance,
and convenient connection and separation. It is suitable for
frequent connection and separation occasions, and is widely used in
radio equipment and test instruments to connect coaxial radio
frequency cables.
The characteristic impedance is very important, otherwise it will
cause a mismatch. When the impedance is matched, the maximum output
power can be obtained, and the equipment utilization efficiency is
the highest: when the impedance is not matched, the output
effective power will be reduced: when the external impedance is
equal to the internal impedance of the device, it becomes an
impedance match.
After reading the above content, you should understand the
difference between the use of BNC connectors and SMA connectors.
BNC connector and SMA connector are two different products, each
has different uses, and there are also differences in performance,
so they cannot be mixed.
Product Details:
Our Company:
1. RY Electronics has over 10 years of experience designing and
manufacturing custom cable assemblies and antennas in large or
small volumes depending on your needs.
2. Our manufacturing facilities can build just about many types of
custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness)
as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.
Why Choose Us?
1. We are professional antenna and accessories mamufacturer for 10
years.
2. Our sales manager will reply your inquiry in 24 working hours.
3. Customized design is available, OEM are welcomed.
4. Excellent after-sales service.
FAQ:
1. Manufacturer or trader?
We have been owning a factory since established,The factory keeps
developing as our business grows larger.
2. What's your MOQ?
Normally our MOQ is 50pcs. Small order is also available.
3. What about the lead time for production?
3-5 working days for samples, 10-15 working days for bulk order.
4. How is your product quality?
Our raw materials are purchased from qualified suppliers. And we
have a strong quality control team
5. What's the warranty?
One year, 12 months.
Payment:
Packaging & Shipping:
1. Usually we ship your order by sea or by air.
2. We do our best to ship your order within 1 week after receiving
your payment
3. We'll tell you the tracking number once your order has been
sent.
4. We accept T/T Bank transfer, L/C, Western Union, , Paypal.
