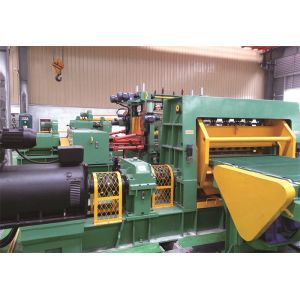

Cold Rolled Steel Metal Cut To Length Line For Transverse Shear

1.Description of goods:

Thin sheet Metal cut to length line for Transverse shear with stably speed by hydraulic system for cold-rolled steel

2. Introduction:
This metal coil decoiling, leveling and cut-to-length line is divided in to three kinds because of different strip thickness and strip width, including thin sheet cut to length line, middle thick coil cut to length and thick sheet cut to length line. Among them, the thin sheet cut to length line: strip thickness: 0.3~3mm or (0.5~3) mm; strip width: 300~1600mm or 300~1800mm.

3. Application:
The thin sheet cut to length line apply to process cold-rolled steel, hot-rolled steel, carbon steel, stainless steel, galvanized steel, color steel plates and the various metal materials.
The thin sheet cut to length line is also divided into two kinds, due to different material of coils strip thickness, strip width, cutting speed and material of disc cutter.

4. The detail specification as follows:
MA-(0.3-3)×1600mm Cut to Length Line
Material of coils: CR galvanized steel plate, carbon steel and etc.
Strip thickness: 0.3~3mm.
Strip width: 300~1600mm.
Inner diameter of coils: Φ480-520mm..
Max.outer diameter of coils: Φ900-1800mm.
Max.coil weight: 15000kg.
Uncoiling mandrel: Ф508×1700mm.
Leveling roller: Φ85.
Material of leveling roller: 40Cr.
Material of disc cutter: 6CrW2Si.
Recoiling spindle: Φ508×750mm.
Cutting speed: (0~60) m/min, adjustable.

5. Technical Parameters of Thin Sheet Cut to Length Line:

WUXI MAZS MACHINERY SCIENCE AND TECHNOLOGY CO.,LTD. is a high-tech enterprise which is engaged in developing, manufacturing and trading. We have one science part and four production bases. Our main products are metallurgy machinery such as metal coil cold rolling mill lines, slitting lines, HF welded pipe mill lines, cut-to-length lines, roll forming machines, etc.

Which not only has been sold in all parts of China but also has been exported to South Asia, Middle East, Europe, American, etc.

We are the council member of China Welding Association, the standing council member of China Metal Structure Association, National Spark Plan High-tech Enterprise, Jiangsu Star Enterprise, Jiangsu Comprehensive Management Demonstration Enterprise. We are the manufacturing enterprise participated in the above mentioned Equipment Standard. We take the lead in passing ISO9000 quality system certification and CE certificate.

Our unchangeable policy: “Proceed from Optimum in Everything; and Satisfy Customer’s Demand and Expectation with High Quality Products and Excellent Service.”

Bearing grateful heart always in mind, we are willing to cooperate with all customers from home and abroad to create a new brilliance together.
