    High quality control Disodium hydrogen phosphate MEE evaporation crystallization

    Ask Lasest Price
    Brand Name : Hanpu
    Model Number : MVR
    Certification : CE ISO
    Price : USD18,0000-USD65,000
    Supply Ability : 1sets per months
    Delivery Time : 45-60 working days
    • Product Details
    • Company Profile

    High quality control Disodium hydrogen phosphate MEE evaporation crystallization

    High-Quality Control Disodium Hydrogen Phosphate (Na2HPO4) MEE Evaporation & Vacuum Crystallization Line
    Engineered multi-effect falling/thin-film evaporation with integrated vacuum crystallization to produce high-purity Disodium Hydrogen Phosphate crystals with consistent particle size, low moisture, and reliable batch-to-batch quality. Optimized steam economy, compact footprint, and full PLC automation make it ideal for fine chemicals and food/pharma-adjacent applications.

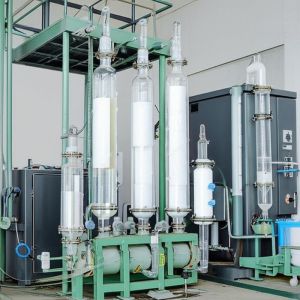

    Disodium Hydrogen Phosphate MEE Evaporation & Crystallization System (Plant View) MEE Falling Film Evaporator with Vacuum Crystallizer Layout
    Tight Quality Control
    Online density/conductivity, mother-liquor recycle logic, and crystal-size control (saturation curve & residence time) to meet specification consistently.
    Steam Economy
    Each effect reuses vapor from the previous effect as the heating medium; optional TVR/MVR modules further cut utilities.
    Clean Operation
    Vacuum, low-temperature evaporation minimizes product degradation; mirror-polished tubes reduce scaling and simplify CIP.
    Process Description
    1. Feed Preparation: Filtered Na2HPO4 solution is metered to the pre-heater and first effect.
    2. Multi-Effect Evaporation (MEE): Falling-film evaporation across 2–4 effects. First effect uses live steam; subsequent effects use secondary vapor as heating media.
    3. Vacuum Crystallization: Concentrated liquor flashes/ages under vacuum to the selected supersaturation; crystal seeds can be dosed to tune PSD.
    4. Solid–Liquid Separation: Crystals are discharged to centrifuge/pressure filter; mother liquor is recycled to the effects for yield improvement.
    5. Drying & Packaging: Low-temperature drying to target LOD; screened and packed per specification.
    System Structure
    Effects (heaters & separators), pre-heaters, vacuum crystallizer, condenser & vacuum set, feed/circulation/discharge/condensate pumps, crystal-handling unit (seed tank, centrifuge), CIP skid, and complete instrumentation (T/P/vacuum/flow/level/cond.).
    Key Features
    • Capacity: 500 kg/h – 80 t/h water evaporation.
    • Materials: SS304 / SS316L (others on request).
    • Low-temperature operation: Gentle vacuum evaporation limits hydrolysis and discoloration.
    • High concentration ratio: Falling-film hydrodynamics handle viscous brines with short residence time.
    • Automation: PLC/HMI with recipe & historian; interlocks for vacuum/level/temperature.
    • CIP friendly: Seamless, mirror-polished tubes simplify cleaning and mitigate scaling.
    • Flexible integration: TVR/MVR add-ons, mother-liquor recycle, optional seed dosing and crystal classification.
    Typical Three-Effect Falling Film — Illustrative Specifications
    ParameterUnitValue (Example)
    Evaporation capacitykg/h3,000 – 50,000
    Raw steam consumptionkg/h~30–40% of single-effect (e.g., 900 kg/h @ 3,000 kg/h duty)
    Evaporation temperature (1st / 2nd / 3rd)°C~99 / 76 / 53 (vacuum)
    Steam pressure for 1st effectMPa (abs)0.6 – 1.0
    Feed solids (Na2HPO4)% w/w8 – 12 (typical)
    Crystallizer outletTarget supersaturation per grade; mother-liquor recycle
    Quality & Compliance
    • Process analytics: density/conductivity, temperature, vacuum, and flow trending for batch traceability.
    • Welds & pressure parts to applicable standards; material certificates available.
    • Validation support for cleaning and product changeover where required.
    Delivery Workflow
    Feed & target → Lab/pilot (optional) → Process & heat balance → Detailed engineering & fabrication → Installation & commissioning → Performance test & training → O&M support.
