23121 CA CC 110*180*56 Mm Spherical Roller Bearing Vibrating Screen Machine Bearing

    Buy cheap 23121 CA CC 110*180*56 Mm Spherical Roller Bearing Vibrating Screen Machine Bearing from wholesalers

    Buy cheap 23121 CA CC 110*180*56 Mm Spherical Roller Bearing Vibrating Screen Machine Bearing from wholesalers
    • Buy cheap 23121 CA CC 110*180*56 Mm Spherical Roller Bearing Vibrating Screen Machine Bearing from wholesalers
    • Buy cheap 23121 CA CC 110*180*56 Mm Spherical Roller Bearing Vibrating Screen Machine Bearing from wholesalers
    • Buy cheap 23121 CA CC 110*180*56 Mm Spherical Roller Bearing Vibrating Screen Machine Bearing from wholesalers
    • Buy cheap 23121 CA CC 110*180*56 Mm Spherical Roller Bearing Vibrating Screen Machine Bearing from wholesalers

    23121 CA CC 110*180*56 Mm Spherical Roller Bearing Vibrating Screen Machine Bearing

    Ask Lasest Price
    Brand Name : SFT
    Model Number : 23121 CA
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 50000PCS/MONTH
    Delivery Time : 20-45DAYS
    • Product Details
    • Company Profile

    23121 CA CC 110*180*56 Mm Spherical Roller Bearing Vibrating Screen Machine Bearing

    23121 CA CC Sizes 110*180*56 mm Vibrating screen machine Bearing Spherical roller bearings

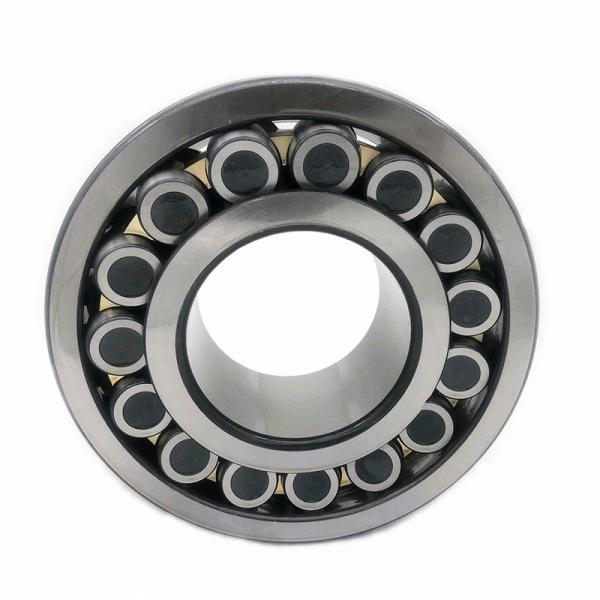

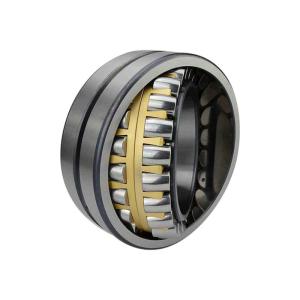

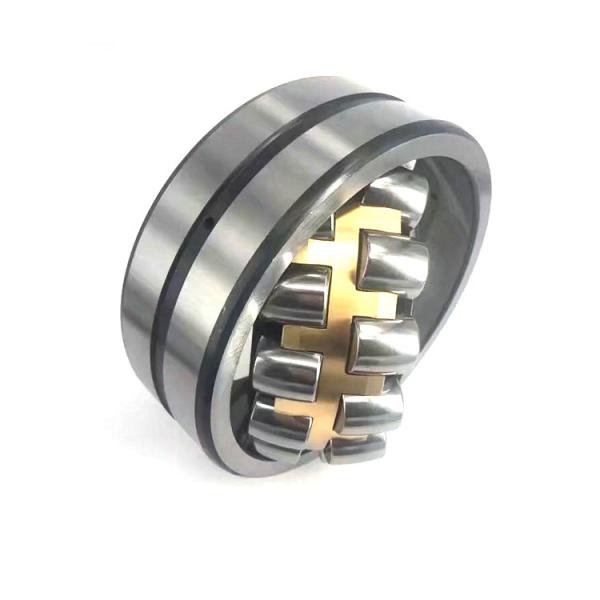

    Description of spherical roller bearing


    Self-aligning roller bearing is designed to adapt to the circumstance of heavy load. It has

    two rows of symmetric spherical rollers.The rollers may freely adjust position in the outer

    spherical raceway,which may compensate the shaft deformation and non-alignment error

    of bearing seat.

    The quantity,length and diameter of roller in self-aligning roller bearing are the max.value

    that the structure allows.The close contact between the roller and raceway ensures the

    uniform stress distribution and enables the high bearing capacity of bearing.

    • Printing presses, paper mills or coaters in high precision execution
    • Very arduous operating conditions, e. g.continuous casters
    • High temperature applications
    • Mounting with loose fit on roll necks
    • Railway vehicles

    Spherical roller bearings with two rollers, mainly bear radial load, but also can withstand

    axial load in either direction. A high radial load capacity, especially suitable for heavy loads

    or vibration, but can not bear the pure axial load. This kind of bearing outer ring raceway

    is spherical shape, so the good performance of its self-aligning, can compensate concentricity

    error.


    Spherical roller bearings have double-row rollers, the outer ring has a common spherical raceway, and the inner ring has two raceways that are inclined at an angle relative to the bearing axis. This ingenious structure makes it have self-aligning performance, so it is not easy to be affected by the angle of the shaft and the bearing box seat on the error or shaft bending. It is suitable for the occasions where the installation error or the shaft deflection causes the angle error. In addition to being able to withstand radial loads, the bearing can also withstand bidirectional axial loads.
    Spherical roller bearings have cylindrical and conical bores. The taper of the conical cone bore is 1:30 and 1:12. This conical bore bearing is equipped with an adapter sleeve or a withdrawal sleeve. The tapered inner hole self-aligning ball bearing can be easily and quickly assembled on the optical shaft or the stepper shaft.


    Bearings NO.

    d/mm

    D/mm

    B/mm

    C/kN

    C0/kN

    Weight/kg

    23120 CC/W33

    100

    165

    52

    365

    490

    4.55

    23120-2CS2/VT143

    100

    165

    52

    365

    490

    4.4

    23220 CC/W33

    100

    180

    60.3

    475

    600

    6.85

    23220 CCK/W33

    100

    180

    60.3

    475

    600

    6.65

    23220-2CS

    100

    180

    60.3

    475

    600

    6.7

    21320 E

    100

    215

    47

    425

    490

    8.6

    21320 EK

    100

    215

    47

    425

    490

    8.5

    22320 E

    100

    215

    73

    815

    950

    13.5

    23022 CC/W33

    110

    170

    45

    310

    440

    3.8

    23022 CCK/W33

    110

    170

    45

    310

    440

    3.7

    23022-2CS

    110

    170

    45

    310

    440

    3.75

    24022 CC/W33

    110

    170

    60

    415

    620

    5

    24022 CCK30/W33

    110

    170

    60

    415

    620

    4.9

    23122 CC/W33

    110

    180

    56

    430

    585

    5.75

    23122 CCK/W33

    110

    180

    56

    430

    585

    5.55









    Quality 23121 CA CC 110*180*56 Mm Spherical Roller Bearing Vibrating Screen Machine Bearing for sale
