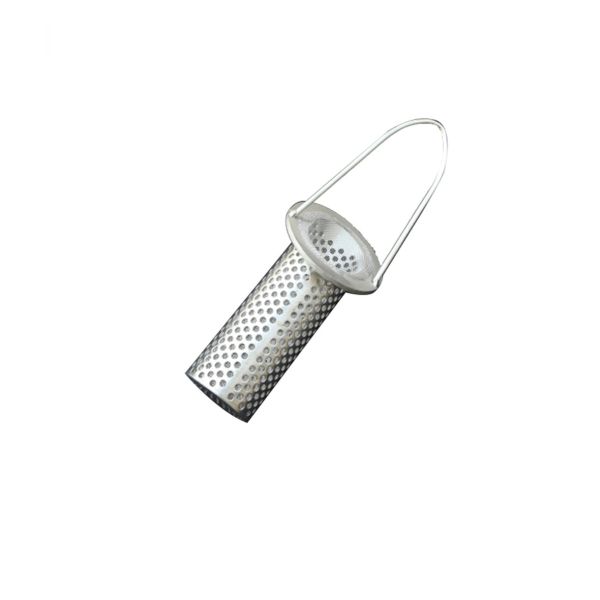

Stainless Steel 85% 0.1mm Thickenss Homebrew Grain Basket Round

Portable Oblique Stainless Steel Oil Filter Filter Element Basket Filter Strainer

This series of washable liquid filters are generally named after the handle is installed on the flange. The style is generally welded to the flange of the stainless steel filter cylinder, and the handle is welded on the flange to facilitate replacement. The basket filter is generally divided into two types, flat and oblique, which are mainly used in the basket filter.
From the point of view of the filtering method, it can be generally divided into two types: internal in and out and out in and out. According to the specifications and parameters, the basket filter is selected. This is the most important link because it is actually In production, the loss of waste and energy is invisible, which increases the cost and causes the price of the product to increase. Therefore, it is necessary to select raw materials, improve the production skills of production employees, and reduce costs.
The inclined-type basket filter must be pre-measured according to the size and specifications during production and processing in order to determine the size of the blanking. At the same time, the flange must be carefully cut and welded when welding. Welding, to avoid damage.

construction

The basket filter consists of the connecting pipe,main pipe,filter basket,flange,flange cover and fasteners.
When the liquid comes into the filter basket through the main pipe,the particle impurities will be trapped in the basket.The clean fluid will through the filter basket and be discharged from the outlet.When it needs to be cleaned,open the screw plug at the bottom of the main pipe rotationally,drain out the fluid.Remove the flange cover,the basket can be put in the main pipe for reuse again.So the use and the maintenance is super convenient.

Application

1.Applicable industry:Fine chemical industry,water treatment system,papermaking,automotive industry,petrochemical,mechanical processing,coating and so on.
2.Applicable liquid:All kind of the liquid with the micro particles.
Main filtration function:Remove the big particle,clean the fluid and protect the key equipment.
3.Type of filtration:Big particles filtration.It use the reusable filter material.It should be cleaned regularly by manual.

Characteristics

1. Shell material: Carbon steel or stainless steel 201/304/316
2. Filter material: stainless steel
3. Sealing material: NBR, VITON
4. DN: 25-300mm
5. Pressure: 1.0Mpa, 1.6Mpa
6. Filter accuracy: 10-300mesh

Technical Parameters for basket filter strainer

1,Working temperature:≤95ºC;
3,Nominal diameter:DN15-DN600;
4,Nominal pressure:PN0.6-2.5Mpa;
5,Filtration precision:50um-8000um
6,Material of housing:Q235B,304,304,316,316L;
7,Material of seal:PTFE/Rubber;
8,Form of inlet/outlet:Flange/Inner wire/Outer wire/Quick installation
9,Form of cover compression:Bolt/Quick bolt
10,Suitable viscosity(cp):1-30000
11,Form of basket:Punching mesh/Single-layer mesh/Composite mesh

Maintainance for Baskte filter strainer

• The key part of this kind of the filter is the filter core.The filter core consists of the filter frame and stainless steel wire mesh.The SS wire mesh belongs to the wear parts.It needs a special protection.

• After the filter has worked for some time,it will precipitates a certain amount of the impurities in the filter core.Then the pressure will be increased and the flow speed will be reduced.So we should clean the impurities in the filter core in time.

• When we clean the impurities,we should be careful to assure the SS wire mesh in the filter core will not be deformed or damaged.Otherwise,when you reuse the filter,the impurities of the filtered liquid will not reach to the designed requirement.And the compressors,pump or the instruments will be destroyed.
