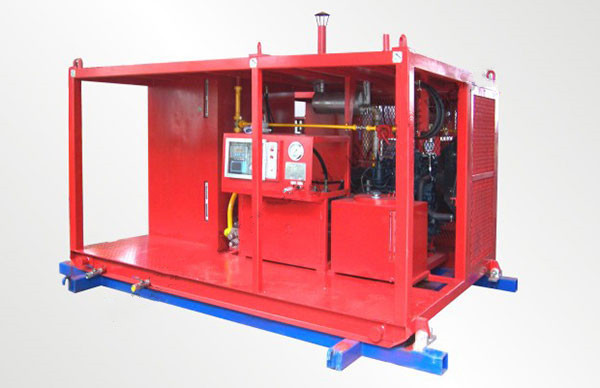

Diesel Engine Hydraulic Station

Main series of our hydraulic station equipped for drilling rig:250,630,800,1000,1400,1800,2000,2500 etc.
The series hydraulic station is equipped with main pump group, self-circulating filtration and oil feeding filtration pump group, air or water device, anti-explosion electric ctrl box, oil supply & return valve group(some including disc-brake ctrl valve group) etc, which is characterized with automatic on/off at low oil level, automatic heating/cooling for oil temperature, alarming for oil temperature and level and oil filter strainer polluted etc.

We can supply following products according to requirements from the Customer:
● Hydraulic station for desert drilling rig, marine drilling rig borne with serious corrosion.
● Hydraulic station for low temperature resistant drilling rig in polar region.
● Hydraulic station powered by diesel engine
● Hydraulic station authenticated by CCS or ABS(USA).

Technical parameter:

1 Diesel engine power　　　　　　　　　　　　　　　　61.6Kw/2200rpm

2 Rated pressure　　　　　　　　　　　　　　　　　　16MPa

3 Max.flow　　　　　　　　　　　　　　　　　　　　　130L/min

4 Effective volume of hydraulic oil tank　　　　　　　　　1100L

5 Volume of diesel engine　　　　　　　　　　　　　　100L

6 Overall dimension　　　　　　　　　　　　　　　　　(L×W×H)＝3230mm×2270mm×2409mm

7 Weight　　　　　　　　　　　　　　　　　　　　　　net weight:1950kg oil filled:3100kg
