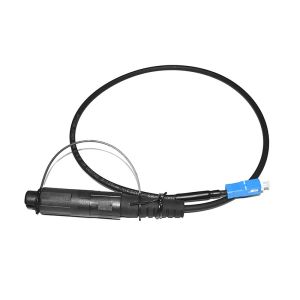

Optitap Optitap Hardened OptiTap Connector Drop Cable Corning
OptiTap Patch Cord
Hicorpwell OptiTap/H connector assemblies provide a robust and
sealed connection solution for fiber to the home (FTTH)
connectivity.
The hardened connector end incorporates an SC/APC type connection
within a slim, sealed, threaded polymer housing allowing easy
connection to either a multiport terminal or in-line extension
receptacle.
The SC/APC connector mates to a standard adapter, providing a
common interface for FTTH applications. Available with flat drop or
traditional round style OSP cables, the hardened connector provides
an ideal solution for direct burial, conduit, or aerial
installations.
Key Features
- 9/125 Singlemode fibre for long distance, high bandwidth
connectivity
- Cost includes leading brand of portable, deployable reel with 3rd
flange & friction break
- Military Tactical fibre is designed for harsh environments and
repeated flexing
- UK Manufactured product, individually serialised for traceability,
shipped with test results
- Operating Temp Range -55- C to +85- C
- 2, 4, 8 and 12 fibre options and Flight Cases are available
Optical performance
1. Insertion loss / IEC 61300-3-34
2. Singlemode typ. ≤ 0.2 dB 97% ≤ 0.45 dB
3. Multimode typ. ≤ 0.2 dB 97% ≤ 0.50 d
4, Return loss / IEC 61300-3-6 singlemode ≥ 50 dB
Product Parameters
Connector | End A | Corning OptiTap Patch Cord |
End B | LC,or SC,FC,ST...... |
Cable Diameter(mm) | 4.0mm/ 7.0mm/ 8.0mm |
Material of jacket | TPU |
Fiber Core | 4,8,12 or specified |
Mode | Singlemode | Multimode |
Operating Wavelength(nm) | 1310/1550 | 850/1310 |
Polishment | UPC | APC | UPC |
Insertion Loss(Max.dB) | 1.5 | 1.0 |
Return Loss(Min.dB) | 50 | 35 |
Mechanical Features | Plug | ≤1000N(main cable) |
Socket | ≤100N(Branch cables) |
Grade | IP68 |
Mating time | 500 Min |
Durability(Max.dB) | 0.2 |
Reaptability(Max.dB) | 0.5 |
Operating Temperature(℃) | -40~+85 |
Storage Temperature(℃) | -40~+85 |
Application :
Fiber-to-the-Antenna (FTTA)
Latest and next-generation mobile communication systems(GSM, UMTS,
CMDA2000, TD-SCDMA, WiMAX, LTE,etc.)
deploy fiber-optic feeders to link the base station with the remote
unit at the antenna mast.
Automation and industrial cabling
The ruggedized design provides highest mechanical and thermal
robustness which keeps the data lines alive even in case of shock,
strongest vibration, or accidental misuse.
Surveillance systems
Security camera manufacturers choose those connectors for its
compact size and robust design. Its assemblies are easy to install
even in areas difficult to access and provide highest installation
safety.
Naval and ship building
The high corrosion resistance convinced both naval and civil ship
builders to use waterproof connector's assemblies for on-board
communication systems.
Broadcast
we offer a range of mobile cabling systems and its assemblies for
temporary cable installations
required for the broadcasting of sport events, car racing, etc.and
for temporary connections in case of natural hazards.
The IP67 connector has been designed specifically for temporary,
deployable applications, to provide a secure, reliable fibre
connection. The duplex IP67 plugs can be mated with corresponding IP67 sockets bulkhead/panel mounted and patched
into equipment, enabling a water and dust proof mating. Each plug
comes with a cap which is retained on a lanyard when not in use.
