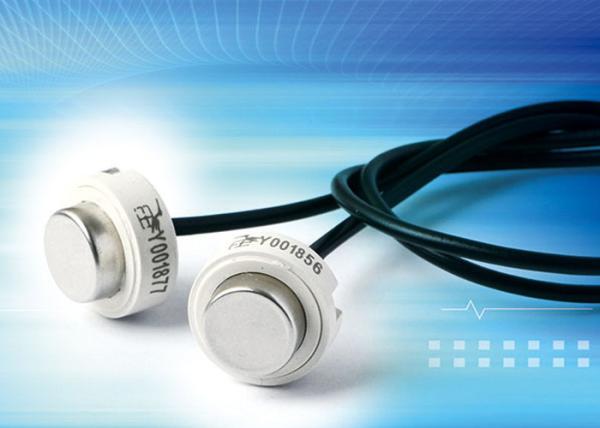

    Shield Wire Waterproof Ultrasonic Sensor SS304 Piezoelectric Ceramic Sensor

    Ask Lasest Price
    Brand Name : Runpaq
    Model Number : 10A11
    Certification : CE
    Price :
    Payment Terms : T/T, L/C, Western Union, D/P
    Supply Ability : 100,000 / month
    Delivery Time : 10-15 days
    • Product Details
    • Company Profile

    Shield Wire Waterproof Ultrasonic Sensor SS304 Piezoelectric Ceramic Sensor

    brass ultrasonic water meter housing, ultrasonic transducer, ceramic sensor

    General description:

    The range of our piezoelectric transducers are developed by us. The ultrasonic transducers are widely used in the fields of: such as ultrasonic cleaning, welding, testing, B-ultrasound medical treatment, beauty equipment, acoustic transducers, micro-drives, ultrasonic flowmeters and so on. Design, development and production of piezoelectric ceramic products. Based on our advanced technology and production process.


    Product data sheet

    Technical parameters
    ModelBX17Center frequency975 + 30 KHzStatic capacity600 PF + 20%
    Resonance impedance<110 ΩProtectionIP68Work temp.< 90 ℃
    Pressure>3.0 MpaTransmit beam angle5 – 10

    Receive

    sensitivity

    >250 mv

    (half wave)

    Housing materialSS304Emit surfaceDia. 17 mmMounting surfaceDia. 21 mm
    Seal

    Epoxy

    encapsulation

    WiringCenterWire type

    Dia. 2.5 mm

    dual core


    Technical parameters
    Model17ACenter frequency975 + 30 KHzStatic capacity500 PF + 20%
    Resonance impedance<110 ΩProtectionIP68Work temp.< 90 ℃
    Pressure>3.0 MpaTransmit beam angle5 – 10

    Receive

    sensitivity

    >250 mv

    (half wave)

    Housing materialBrassEmit surfaceDia. 17 mmMounting surfaceDia. 21 mm
    Seal

    Epoxy

    encapsulation

    WiringCenterWire type

    Dia. 2.5 mm

    dual core


    Parameters


    Different options:
