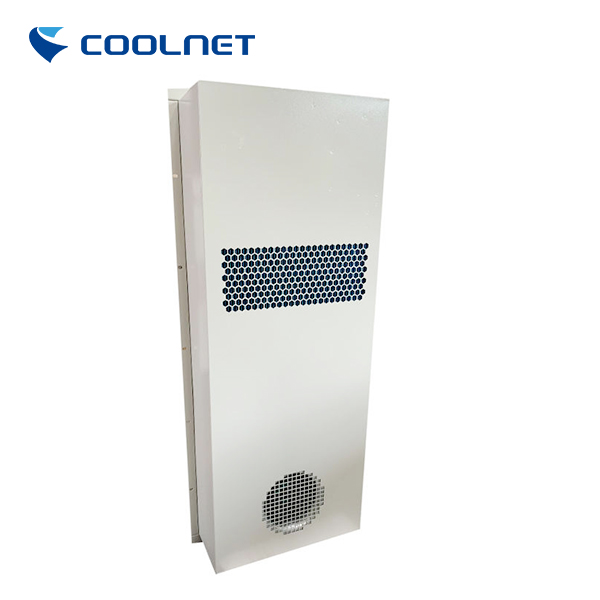

    220VAC 1000BTU 50Hz Electrical Cabinet Air Conditioner

    Ask Lasest Price
    Brand Name : Coolnet
    Model Number : CJK400-600MQ
    Certification : CE/ISO9001
    Price : $400.00-5000.00/set
    Payment Terms : T/T, L/C
    Delivery Time : 20-35working days
    Supply Ability : 3000 Unit/Units per Month
    • Product Details
    • Company Profile

    220VAC 1000BTU 50Hz Electrical Cabinet Air Conditioner

    220VAC 300W 1000BTU 50Hz Electric Thermoelectric Cabinet Air Conditioner



    Product Introduction

    Outdoor integrated energy-saving cabinet is a good product with safety, reliability, strong anti-theft performance, low noise, good heat dissipation and small space occupation. Another feature of this product is that it can meet the rapid construction of the station, the product delivery to the site, the three pods after the installation is complete, the power lines and reserved for good terminal docking, power supply, heat exchangers, air conditioning, and other equipment can be used, without on-site installation of wiring. The integrated cabinet is suitable for outdoor realm, such as highway side, park, building roof, mountainous area, flat land installation of the cabinet, the cabinet can be installed inside the base station equipment, power supply equipment, battery, temperature control equipment, transmission equipment and other supporting equipment or for the above equipment reserved installation space and heat exchange capacity, can provide reliable mechanical and environmental protection for the normal operation of internal equipment cabinet. The integrated cabinet is composed of battery cabinet, power supply cabinet and equipment cabinet, making full use of the available space inside each cabinet.

    Benefits

    The EA 300 is a compact, high efficient hybrid air conditioner with heat exchanger.

    The design is optimized for applications with limited space available, but

    where functionality and performance still cannot be compromised.

    Ø 220VAC for air conditioner, -48VDC for heat exchanger

    Ø 3000W cooling capacity @L35L35

    Ø 120w/k heat exchanger

    Ø Compact design

    Ø Door mounted – easy integration in outdoor cabinets and enclosures

    Ø Wide working temperature range: -40ºC to +55 ºC

    Ø Air conditioner and heat exchanger system as backup

    Ø Energy saving, different cooling mode for varied ambient conditions

    Ø Low noise, the noise level of unit can be reduced according to the heat load, silently operating in most time

    Ø Lifetime >10 years – minimum maintenance

    Ø Environmental friendly – R134a and RoHS compliant

    Ø IP55 and Corrosion Proof

    Ø Dedicated design by delay start

    Ø RS485 for remote control


    Technical Specification

    ModelEA-300
    Power Supply( V,Hz)1P 220,50
    Dimension (mm)W286
    H445
    D175
    Cooling Capacity300W
    Running Current1.48A
    Starting Current6.5A
    Power287W
    Refrigerant TypeR134a
    Noise Level55dB
    Cabinet Protection Rationinternal circuitIP34
    external circuitIP33
    Cabinet Temperature Limits25℃~38℃(Factory Set 30℃)
    Ambient Temperature Limits-5℃~43℃
    Power ConnectionTriangle Power Plug( 2 Meters Length)
    Weight15Kg
    ColorRAL 7035(Light Gray)
    Flow Rateinternal circuit70m3/h
    external circuit150m3/h
    Temperature Control TypeDigital Display

    Test condition: dry bulb temperature inside the cabinet 35 ℃, wet bulb temperature 26 ℃;

    dry-bulb temperature outside the cabinets 35 ℃


    Factory View

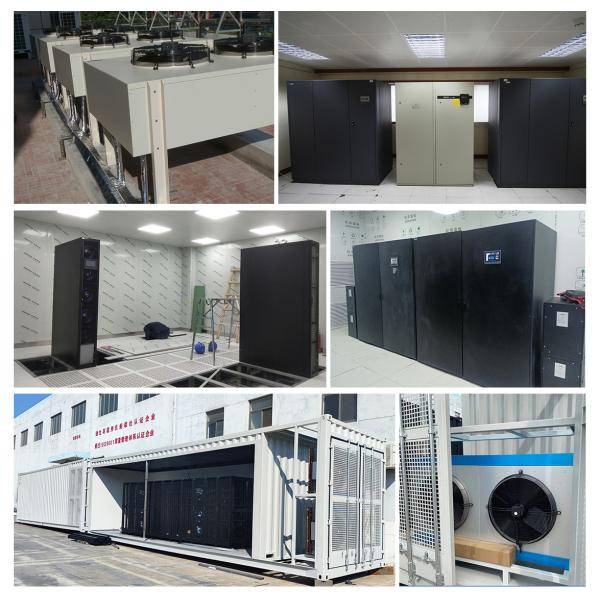

    Case
