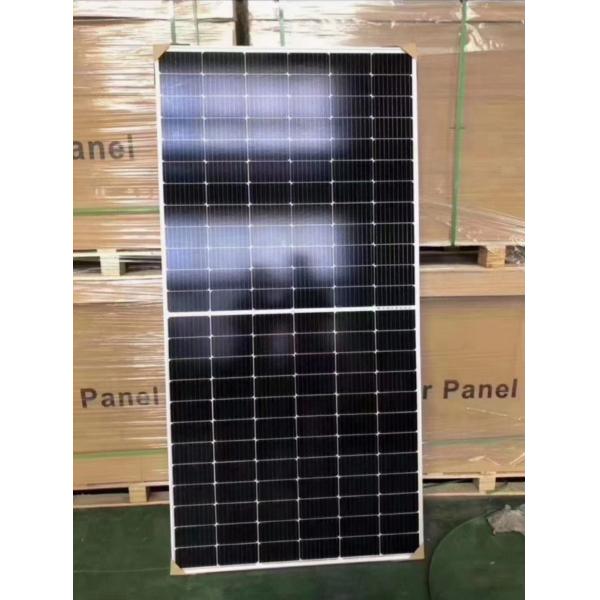

    144 Half Cell Mono Perc Bifacial Solar Panel 455w Mono Mbb Percium

    Ask Lasest Price
    Brand Name : Finergy Tech
    Model Number : Mono PERC 450W half cell bifacial PV module
    Certification : CE, IEC61215, IEC61730, TUV, CQC
    Price : 0.23~0.25 USD per watt
    Payment Terms : T/T, L/C at sight, Western Union
    Supply Ability : 10MW per month
    Delivery Time : 10 work days
    • Product Details
    • Company Profile

    144 Half Cell Mono Perc Bifacial Solar Panel 455w Mono Mbb Percium

    FSM440~FSM450M72HD (440W/445W/450W) MONO PERC 144 Half Cells Bifacial PV Module

    Electrical Characteristics under STC (Irradiance 1000W/m², Cell Temperature 25℃, Air Mass 1.5)

    Module TypeFSM440M72HDFSM445M72HDFSM450M72HD
    Maximum Power-Pmax (Wp)440445450
    Voltage at Maximum Power-Vmp (V)41.041.241.4
    Current at Maximum Power-Imp (A)10.7410.8110.88
    Open Circuit Voltage-Voc (V)49.649.850.0
    Short Circuit Voltage-Isc (A)11.3311.4011.47
    Module Efficiency-ηm (%)20.2%20.5%20.7%
    Operating Temperature-40℃ to +85℃
    Maximum System Voltage1000V/1500V DC (IEC)
    Power Tolerance0~+4.99W
    Temperature Coefficients of Pmax-0.350%/℃
    Temperature Coefficients of Voc-0.289%/℃
    Temperature Coefficients of Isc0.048%/℃

    Mechanical Characteristics

    Cell Type9BB M6 MONO PERC 166×83mm
    No. of Cells144 (2×72)
    Dimension2094×1038×35mm
    Weight24 Kg
    Junction BoxIP67, 3*22A diodes
    Output Cables4.0mm², 500mm Length (Optional)
    ConnectorsMC4 compatible
    Packing31PCS/Pallet, 704PCS/40’HC

    Product Descriptions

    • Mono PERC solar cells from gallium doped wafers to guarantee higher output power and higher module efficiency.
    • High efficiency bifacial mono PERC solar cells assembled with transparent mesh backsheet to provide 5%~20% extra power generation from rear.
    • Mono PERC Half Cell PV module with better temperature coefficient parameters offers better temperature-dependent performance.
    • Excellent Anti-PID performance guarantee limited power degradation for mass production.
    • Anti-reflective coating glass with light transmittance improvement above 3%, to increase module efficiency up to 2%.
    • More than 92% light transmittance EVA film with snail trail prevention treatment.
    • Excellent electric insulation backsheet for high system volatge up to 1500V.
    • IP67 rated split junction boxes with diodes to protect the full PV system safety.
    • Anodized aluminum frames with strong mechanical resistance up to 5400 Pa.
    • Three channels of EL automatic detections and power test before packing.
    • Full production from automatic equipment and production line in accordance with IEC61215 and IEC61730 standards.
    • MES system applied together with production line to ensure products information searchable and traceable by barcode.
    • 12 years product material & craft warranty and 30 years linear power damping warranty based on around 0.55% annual power degradation.

    Who's FINERGY?

    FINERGY Solar Tech headquartered in Wuxi, PR China, is a spin-off of Delin Group. FINERGY launched 3 ISO certified workshops in the industrial park which produce both mono and poly crystalline solar panels. With the development of emerging market, we enlarged the capacity of solar panels production to 800MW per year.

    FINERGY delivers proven solar performance to residential, commercial and utility scale power plant customers, which can get more profits from our collaborations. Hundreds megawatts of solar panels are produced and shipped from FINERGY factory. The products were praised by customers as per higher quality, price/ performance ratio.

    Automatic Production

    QC Inspection

    Installation of FINERGY Bifacial Solar Panels
