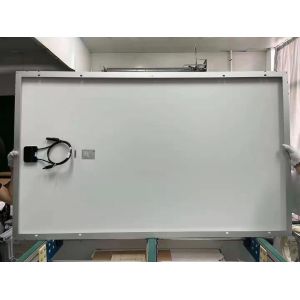

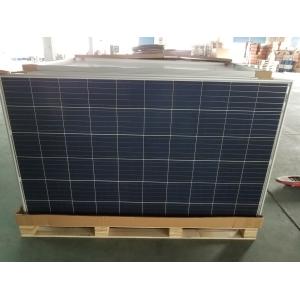

FSM275~FSM285P60 (275W/280W/285W) 60*5BB Poly Crystalline Solar
Cell PV Module
Electrical Characteristics under STC (STC: Irradiance 1000W/㎡, Cell Temperature 25℃, Air Mass 1.5)
| Module Type | FSM275P60 | FSM280P60 | FSM285P60 |
| Maximum Power-Pmax (Wp) | 275 | 280 | 285 |
| Voltage at Maximum Power-Vmp (V) | 31.5 | 31.8 | 32.2 |
| Current at Maximum Power-Imp (A) | 8.73 | 8.81 | 8.86 |
| Open Circuit Voltage-Voc (V) | 38.3 | 38.5 | 38.9 |
| Short Circuit Voltage-Isc (A) | 9.17 | 9.23 | 9.28 |
| Module Efficiency-ηm (%) | 16.9% | 17.2% | 17.5% |
| Operating Temperature | -40℃ to +85℃ |
| Maximum System Voltage | 1000V/1500V DC (IEC) |
| Power Tolerance | 0~+4.99W |
| Temperature Coefficients of Pmax | -0.40%/℃ |
| Temperature Coefficients of Voc | -0.31%/℃ |
| Temperature Coefficients of Isc | 0.04%/℃ |
Mechanical Characteristics
| Cell Type | 5BB Poly Crystalline 157×157mm |
| No. of Cells | 60 (6×10) |
| Dimension | 1640×992×35mm |
| Weight | 17.5 Kg |
| Junction Box | IP68 rated, 3*20A diodes |
| Output Cables | 4.0mm², 1100mm Length (Optional) |
| Connectors | MC4 compatible |
| Packing | 31PCS/Pallet, 952PCS/40’HC |
Basic Product Descriptions
- High efficiency Poly Crystalline Solar Cell adopts new technology
to guarantee higher output power and higher module efficiency.
- Excellent Anti-PID performance guarantee limited power degradation
for mass production.
- Certified to withstand: front side max. 5400Pa, rear side max.
2400Pa.
- IP68 rated junction box with schottky diodes to protect the whole
PV system damage.
- MC4 compatiable connectors for solar system easy installation.
- Three times EL inspections and power test before packing.
- Automatic production from advanced equipment and production lines
in accordance with IEC61215 and IEC61730 standards.
- MES system applied together with production line to ensure product
data searchable and traceable.
- 12 years product workmanship warranty and 30 years linear power
damping warranty.
Who's FINERGY?
FINERGY Solar Tech headquartered in Wuxi, PR China, is a spin-off
of Delin Group. FINERGY launched 3 international certified
workshops in the industrial park which produce both mono and poly
crystalline solar panels. With the development of emerging market,
we enlarged the capacity of solar panels production to 800MW per
year.
Quality of FINERGY Solar Panels
Quality is the life of FINERGY. The company established a perfect
quality control system and implements the whole process quality
control of raw materials, production, inspection, warehousing,
delivery and etc. Through advanced automatic equipment and
production line, it’s able to eliminate human defects and improve
products quality. Through digital information systems, we can
achieve products quality traceability, provide customers with
efficient and quick after-sales service to protect the benefits of
customers.
Achievements of FINERGY
FINERGY has set up sales network in Asia, Europe and South America
countries. The solar panels produced from FINERGY have been
exported to more than 40 countries all over the world.
Advanced Production Lines in Workshop
850KW Commercial Roof Project Reference
