| Brand Name : | Finergy Tech |
| Model Number : | Mono PERC 325W 330W 335W full black solar panel |
| Certification : | CE, IEC61215, IEC61730, TUV, CQC |
| Price : | 0.23~0.25 USD per watt |
| Payment Terms : | T/T, L/C at sight, Western Union |
| Supply Ability : | 10MW per month |
| Delivery Time : | 10 work days |

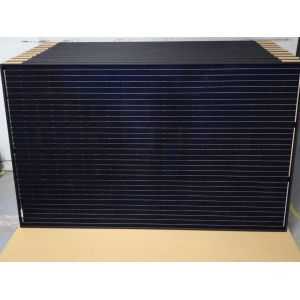

FSM325~FSM335M60L (325W/330W/335W) 60 Cells MONO PERC FULL BLACK PV Module
Electrical Characteristics under STC (STC: Irradiance 1000W/㎡, Cell Temperature 25℃, Air Mass 1.5)
| Module Type | FSM325M60L | FSM330M60L | FSM335M60L |
| Maximum Power-Pmax (Wp) | 325 | 330 | 335 |
| Voltage at Maximum Power-Vmp (V) | 33.6 | 33.8 | 34.0 |
| Current at Maximum Power-Imp (A) | 9.68 | 9.77 | 9.87 |
| Open Circuit Voltage-Voc (V) | 41.1 | 41.3 | 41.5 |
| Short Circuit Voltage-Isc (A) | 10.20 | 10.31 | 10.36 |
| Module Efficiency-ηm (%) | 19.5% | 19.8% | 20.1% |
| Operating Temperature | -40℃ to +85℃ | ||
| Maximum System Voltage | 1000V/1500V DC (IEC) | ||
| Power Tolerance | 0~+3% | ||
| Temperature Coefficients of Pmax | -0.350%/℃ | ||
| Temperature Coefficients of Voc | -0.270%/℃ | ||
| Temperature Coefficients of Isc | 0.048%/℃ | ||
Mechanical Characteristics
| Cell Type | 5BB Mono PERC 158.75×158.75mm |
| No. of Cells | 60 (6×10) |
| Dimension | 1665×1002×35mm |
| Weight | 18 Kg |
| Junction Box | IP68, 3*20A diodes |
| Output Cables | 4.0mm², 1100mm Length (Optional) |
| Connectors | MC4 compatible (Optional) |
| Packing | 31PCS/Pallet, 952PCS/40’HC |
Key Features:
Who's FINERGY?
FINERGY Solar Tech headquartered in Wuxi, PR China, is a spin-off of Delin Group. FINERGY launched 3 international ISO certified workshops in the industrial park which produce both mono and poly crystalline solar panels. With the development of emerging market, we enlarged the capacity of solar panels production to 800MW per year.
Achievements of FINERGY
FINERGY has set up sales network in Asia, South America and Europe. The solar panels produced from FINERGY have been exported to more than 40 countries all over the world. It delivers hundreds MW of proven solar performance to residential, commercial and utility scale power plant customers per year, which can get more benefits from our collaborations.

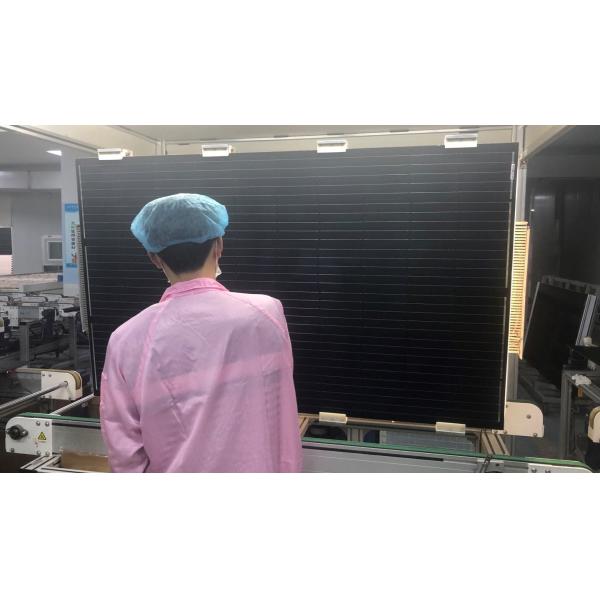

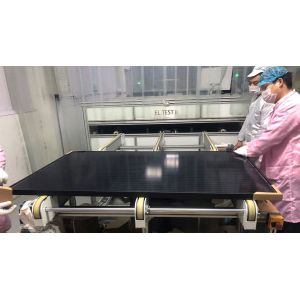

Manufacturing Workshop

Packing & Delivery

Project Reference: 20KW House Roof Solar System

|
