    350W-360W Silicon Solar Pv Module Bifacial 9BB M6

    Ask Lasest Price
    Brand Name : Finergy Tech
    Model Number : 350W~370W
    Certification : CE, IEC61215, IEC61730, TUV, CEC
    Price : 0.20~0.21 USD per watt
    Payment Terms : T/T, L/C
    Supply Ability : 10MW per month
    Delivery Time : 10 work days
    • Product Details
    • Company Profile

    350W-360W Silicon Solar Pv Module Bifacial 9BB M6

    FSM350~FSM360M60HL (350W/355W/360W) Full Black MONO PERC PV Module

    KEY FEATURES

    • 9 Busbar M6 Mono Half-Cell adopts PERC technology to guarantee higher output power and higher module efficiency.
    • Mono PERC Half-Cell PV module offers better temperature-dependent performance, less shading effect on the energy generation, lower risk of hot spot.
    • Excellent Anti-PID performance guarantee limited power degradation for mass production.
    • Advanced glass and cell surface textured design ensure excellent performance in low-light environments (e.g. early morning, dusk and cloud, etc).
    • Certified to withstand: wind load (2400 Pa) and snow load (5400Pa)
    • High salt mist and ammonia resistance certified by TUV Nord
    • All black color meets better with your house roof
    • 15 years product warranty and 25 years linear power warranty

    Electrical Characteristics under STC

    Module TypeFSM350M60HLFSM355M60HLFSM360M60HL
    Maximum Power-Pmax (Wp)350355360
    Voltage at Maximum Power-Vmp (V)33.333.533.7
    Current at Maximum Power-Imp (A)10.5210.6010.69
    Open Circuit Voltage-Voc (V)40.540.740.9
    Short Circuit Voltage-Isc (A)11.0211.1011.20
    Module Efficiency-ηm (%)18.9%19.1%19.4%
    Operating Temperature-40℃ to +85℃
    Maximum System Voltage1000V/1500V DC (IEC)
    Power Tolerance0~+4.99W
    Temperature Coefficients of Pmax-0.350%/℃
    Temperature Coefficients of Voc-0.270%/℃
    Temperature Coefficients of Isc0.048%/℃

    Mechanical Characteristics

    Cell TypeMONO PERC 166×83mm
    No. of Cells120 (60×2)
    Dimension1768×1048×35mm
    Weight20 Kg
    Junction BoxIP68, 3 diodes
    Output Cables4.0mm², 500mm Length
    ConnectorsMC4 compatible
    Packing32PCS/Pallet, 822PCS/40’HC

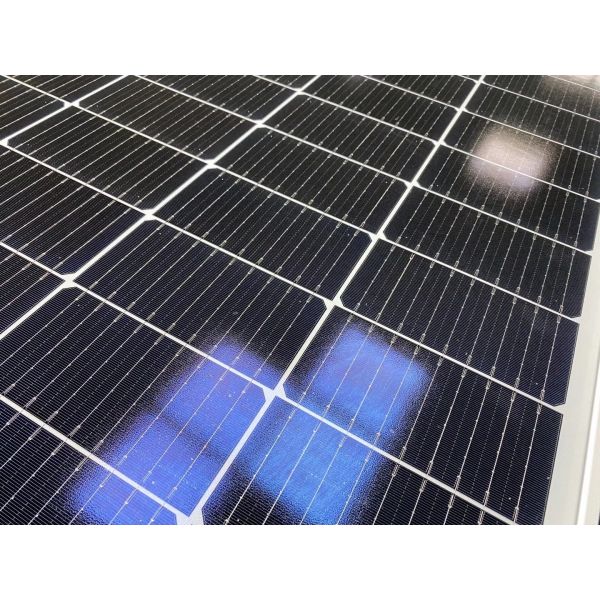

    Cells Feature


    Product Show


    Packing and Delivery
