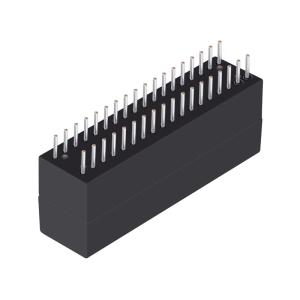

LP83601NL Gigabit Transformer Magnetic Modules 36 Pin THT DG36001G
| LINK-PP Part Number: | LP83601NL | Other Part Number | DG36001G |
| Part Status | Active | Turns Ratio - Primary:Secondary | 1:1 Transmitter, 1:1 Receiver |
| Construction | OPEN FRAME | Application-Lan | Ethernet(NoN PoE) |
| Number of Ports | Dual Port | Speed | 10/100/1000 Base-T |
| Package | Tape & Reel | Cores per Port | 16 |
| AutomDX | Yes | Comment | SAME AS NL VERSION |
| PIN number | 36 | Mounting Type | THT |
| Package Height (Inches/mm) | 0.472/12.0 | Package Length (Inches/mm) | 1.287/32.70 |
| Package Width (Inches/mm) | 0.335/8.5 | Temperature | 0℃ TO +70℃ |
| Turns Ratio RX/TX | 1CT:1CT | Configuration RX/TX | T,C,S |
Electrical Specifications @25℃
1.Turns Ratio: 1CT:1
2.OCL: 350uH min
@100KHz,100mV,8mADC Bias
3.Insertion Loss(dB max):
1-65MHz:-1.0 65-100MHz:-1.1
100-125MHz:-1.5
4.Return Loss(dB min):
1-30MHz:-18 40MHz:-18
50MHz:-16 60-80MHz:-12
100MHz:-10
5.Crosstalk(dB min):
30MHz:-45 60MHz:-40
100MHz:-35
6.DCMR:(dB min):
30MHz:-43 60MHz:-37
100MHz:-33
7.Isolation Voltage: 1500Vrms min
