    IEC60529 IPX7 Test Equipment For Luminaire Electric Components

    IPX7 Test Equipment

    Description


    IPX7 test equipment is designed according to IEC60529 clause 14.2.7 regarding the second characteristic numerals 7.

    Waterproof test simulates the condition of raining, which is mainly applied to electronic products, luminaire. electric components, motor and house holding appliance.

    ipx7 ipx8 test tank can help to judge the products' performance, and provide the basis for design, improve and inspect. " The water-level on enclosure recuires 0.15m above top and 1m above bottom. duration of the test is 30min.

    Main Technical Parameter


    Name

    IPX7 Test Equipment

    Internal dimension

    Diameter 600mm *Height 1500mm.

    Chamber material

    SUS#304, thickness 2.5mm

    Water depth

    Simulate 50m depth by air compressor

    Water pressure

    Ambient to 0.5MPa, pressure gauge accuracy 0.25 degree

    Timer

    0 ~ 99min, 99sec

    Sample lift device

    Portable stainless steel basket

    Water level display

    Water pipe with scale

    Open mode

    pneumatic lift with safety lock.

    Protection device

    Pressure protection and anti-explosive device, water drain and pressure release device

    Safety protection

    Power overload protection, short circuit protection, grounding protection, alarm display

    Nominal power

    3500W

    Power Supply

    AC380V 50HZ


    Configuration



    Test Area
    External: Diameter 600mm *Height 1500mm.
    Internal holder: diameter is 1200mm, height is 0~1500mm adjustable.

    Footstand
    The bottom is a safe foot base, which can be fixed with the floor to increase stability

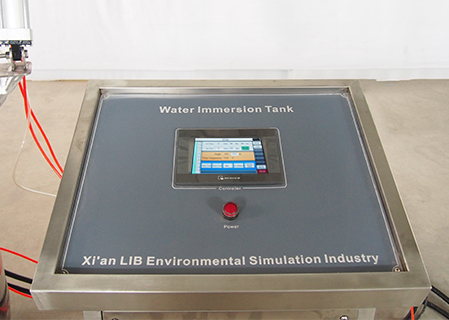

    Control Panel
    Color display touch screen controller.
    Build-in standard and program.

    Safe Lock
    The lock is 12 high-strength round manual pressure locks. Equipped with a locking tool.


    IPX7
    Method name: Short time immersion test.
    Test equipment and conditions: Immersion tank. The dimensions shall be such that the sample shall be placed in the immersion tank at a distance of at least 1m from the bottom of the sample to the surface of the water. The distance from the top of the sample to the water surface should be at least 0.15m.
    Testing time: 30 min.

    IPX8
    Method name: Continuous diving test.
    Test equipment, test conditions and test time: The severity shall be higher than IPX 7 as agreed by the buyer and the seller.
    Note: Many outdoor electronics also emphasize the ability to float.

    Features


    For IPX7 testing
    ●Ipx8 immersion test tank adopts double-laver structure and made by SuS304 stainless steel, to make sure rustless for long time use..

    ●Inlet and outlet water pipe are placed on the bottowm, and inlet valve is placed on the back .

    ●The stainless steel rule can display the water level clearly.

    ●IPX7 ipx8 immersion test chamber buit-in a stainless steel hook. user can place the sample easily.
