    Super intelligent, fast and customizable hollow glass processing production line includes inflatable function

    Ask Lasest Price
    Brand Name : LIJIANG GLASS
    Model Number : 2535-
    Certification : CE
    Price : $80,000 per unit-
    Payment Terms : L/C, T/T
    Supply Ability : 8 units per month-
    Delivery Time : 15-30 working days-
    • Product Details
    • Company Profile

    Super intelligent, fast and customizable hollow glass processing production line includes inflatable function

    Products Descriptio

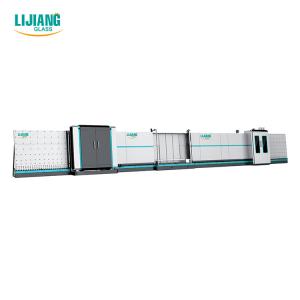

    LJBZ2535 Insulating Glass Production Line
    The whole LJBZ2535 Insulating Glass Production Line has 7 sections: 01 transfer section; 02 washing machine; 03 discharge section; 04 inspection and installation section; 05 transfer section; 06 pressing and filling section; 07 discharge section. Optional functions: •Step glass with optional edges
    Shaped glass
    •Filling argon gas automatically •Air-floating technology to transfer glass
    •PLC control system, touch screen interface
    •Using Siemens servo motors •Applicable to produce double glass, triple glass To prevent the glass from being contaminated by wheels and leaving traces to improve the IG production’s high quality.
    The second part: the washing and drying section.
    The 6th parts: the pressing and gas filling section
    Advantages & Features

    The coating inspection
    To Avoid the Low-E glass or Coated glass put inverse side and Leave wheel marks or scratch low-e Coating, Jinan LIJIANG Glass uses coating inspection -metal film conductive. (others suppliers from China, usually use the photoelectric detection, and it's actually little hard to recognize for higher transparent)

    The pressing box uses the high precision servo motor.
    The servo motor could be accurately calculated the thickness of the Insulated glass and aluminum spacer. Compared with traditional hydraulic station. And also, it could guarantee the precise working pressure and protect the glass from damage, at the same time increasing the working speed.

    It uses six soft (Low-E Glass) brushes with the 0.1mm diameter only.
    It has 6 brushes which are all soft brush, could wash and dry more difference types and sizes ofr low-e glass, flat glass,
    tempered glass and so on. It has a diameter of less than 0.1mm bristles, never damage glass, especially for low-e glass cleaning.

    The whole washing machine all uses #304 stainless steel materials
    The whole washing and drying section adopt #304 stainless steel materials, including the plate and interior spare parts. The thickness plate can up to 4mm and the interior plate can be 8mm.The equipment performance is better and service life is much longer than other suplliers.

    Air floating technology - Optional
    The front and back transfer wheel are all moved, all actively transferred. It can guarantee the big and thick glass pass through smoothly. The equipment adopts the new air – floating technology uses air to support glass and transfer glass. When glass is washed clearly from the washing machine, using air to transport the glass, it won't be contaminated. Ensure that the produced insulating glass is of the highest quality.

    The first one to use adjustable points to ensure that the platen will never deform.
    The whole equipment adopts CNC technology into the pressing board. It was designed the adjustable points inside the pressing board to keep the backplate straight all the time. In China, except LIJIANG, no more others suppliers could guarantee that the pressing board will remain vertical andstraight all the time after used over 10 or 20 years.
    Product Paramenters
    Item.
    Spec.
    Max. glass size
    2500mm*3500mm
    Min. glass size
    280mm*400mm
    Glass thickness
    3-15mm
    Insulating glass thickness
    50mm / 60mm
    Glass washing speed
    2-10m/min
    Glass conveyor speed
    45m/min
    Washing brushes
    3 pairs
    Water supply
    Water consumption:0.5t/h conductivity:40μs/cm
    Air supply
    Flow: 0.8m/min
    Air pressure
    ≥0.8MPa
    Total power
    3P 380V 50HZ 40KW
    Dimension
    23500*3500*3700mm
    Weight
    6500kgs
    Name
    Brand
    Servo motor
    Germany Simens
    Servo driver
    Germany Simens
    Servo motor
    Germany Simens
    Servo motor
    Germany Simens
    PLC
    Germany Simens
    Low voltage component
    Germany Simens
    Frequency converter
    Germany Simens
    Switching power supply
    Taiwan MW
    Optoelectronic switch
    Korea Autonics
    Pneumatic component
    Taiwan Airtac
    Pneumatic component
    Taiwan Airtac
    Touch screen
    Taiwan Wenview
    Travel switch
    Taiwan (TEND)
    Relay
    Japan Omron
    Button and indicator light
    French Schneider
