Type | P N | Frequency | Product Description | Datasheet Download |
Spring | AH1G.301 | 433MHz | Spring DIP,433M antenna | http://docs.antennahome.com/ant/AH1G.301.pdf |
AH1G.302 | 868/915M ,
900/1800MHz | Spring DIP,868M/915M,GSM900/1800M antenna | http://docs.antennahome.com/ant/AH1G.302.pdf |
AH2G.304 | 2.4GHz | Spring DIP,2.4G antenna | http://docs.antennahome.com/ant/AH2G.304.pdf |

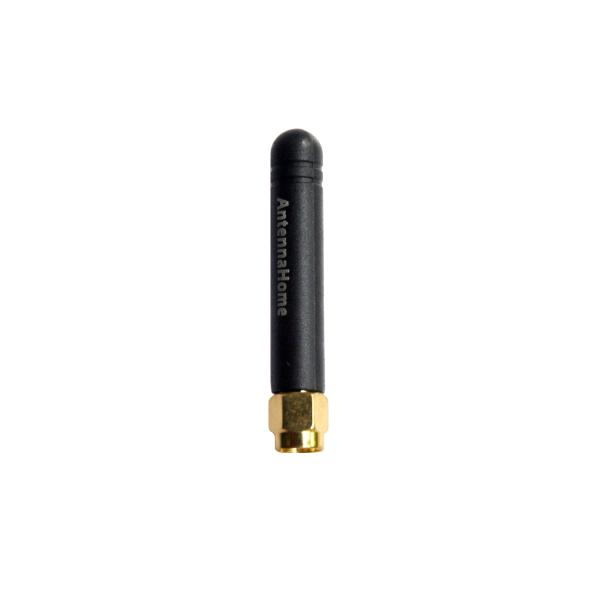

H50 Rubber | AH1G.101 | 433MHz | H50 Rubber SMA-J ,433M antenna | http://docs.antennahome.com/ant/AH1G.101.pdf |
AH1G.102 | 868/915MHz,
2G/3G | H50 Rubber SMA-J ,868M/915M,GSM900/1800Mantenna | http://docs.antennahome.com/ant/AH1G.102.pdf |
AH2G.104 | 2.4GHz | H50 Rubber SMA-J ,2.4G | http://docs.antennahome.com/ant/AH2G.104.pdf |
H50 Rubber
-JW | AH1G.103 | 433MHz | H50 Rubber SMA-J W,433M antenna | http://docs.antennahome.com/ant/AH1G.103.pdf |
AH1G.104 | 868/915MHz,
2G/3G | H50 Rubber SMA-JW ,868M/915M,GSM900/1800M antenna | http://docs.antennahome.com/ant/AH1G.104.pdf |
AH2G.105 | 2.4GHz | H50 Rubber SMA-JW ,2.4G | http://docs.antennahome.com/ant/AH2G.105.pdf |
H108 Rubber | AH2G.101 | 2.4GHz | H108 Rubber SMA-J ,2.4G | http://docs.antennahome.com/ant/AH2G.101.pdf |
AH2G.102 | 5.8GHz | H108 Rubber SMA-J ,5.8G | http://docs.antennahome.com/ant/AH2G.102.pdf |
AH3G.101 | 824~2170MHz,
2G/3G | H108 Rubber SMA-J ,2G/3G | http://docs.antennahome.com/ant/AH3G.101.pdf |
H195 Rubber | AH2G.103 | 2.4GHz, 5dBi | H195 Rubber high gain SMA-J ,2.4G | http://docs.antennahome.com/ant/AH2G.103.pdf |
H200 BIAN | AH3G.102 | 2G/3G/4G
NB-IoT /CAT.1 | HB180 Rubber SMA-J ,3G/4G/5G | http://docs.antennahome.com/ant/AH3G.102.pdf |
|
|
|
|
|
PCB + Cable
Internal Ant | AH1G.300T | 433M-915MHz | 433M-915MHz PCB ANT | http://docs.antennahome.com/ant/AH1G.300T.pdf |
| AH2G.205T | 2.4/5.8GHz | 2.4/5.8GHz PCB ANT | http://docs.antennahome.com/ant/AH2G.205T.pdf |
| AH3G.201T | 824~2170MHz,
2G/3G | 824-2710MHz PCB ANT | http://docs.antennahome.com/ant/AH3G.201T.pdf |
| AHNG.200T | 13.56MHz | P3020 13.56MHz NFC/RFIDANT | http://docs.antennahome.com/ant/AHNG.200T.pdf |
FPCB + Cable
Internal Ant | AH2G.205 | 2.4GHz | FPCL120 1.13cable IPX,2.4G | http://docs.antennahome.com/ant/AH2G.205.pdf |
| AH3G.204 | 3G/4G/5G | F6330 1.13 Cable IPX,3G/4G/5G ANT | http://docs.antennahome.com/ant/AH3G.204.pdf |
CHIP SMD
OnBoard ANT | AH2G.302 | 2.4GHz | K0801 CHIP SMD, 2.4G Antenna | http://docs.antennahome.com/ant/AH2G.302.pdf |
| AH3G.303 | 2G/3G/4G | K6015 CHIP SMD, 2G/3G/4G Antenna | http://docs.antennahome.com/ant/AH3G.303.pdf |
| AHUG.200T | 3.5~6.5GHz | P1410 3.5~6.5GHz OnBoard UWB ANT | http://docs.antennahome.com/ant/AHUG.200T.pdf |
|
|
|
|
|
H200 Magnet Metal | AH3G.402 | 2G/3G/4G
NB-IoT /CAT.1 | 2G/3G/4G,NB-IoT,CAT.1&4, H200 MetalSpring Antenna | http://docs.antennahome.com/ant/AH3G.402.pdf |
H175 Magnet Rubber | AH3G.401 | 2G/3G/4G
NB-IoT /CAT.1 | H175 Rubber Magnetic SMA-J ,3G/4G/5G | http://docs.antennahome.com/ant/AH3G.401.pdf |
|
|
|
|
|
GPS BOX | AHGG.101 | GPS + BD | Q48x38 Box GPS SMA-J , L2000 ,GPS/BD Antenna | http://docs.antennahome.com/ant/AHGG.101.pdf |
GPS Internal | AHGG.202 | GPS + BD | Q25x25 Internal GPS , L120,GPS/BD Antenna | http://docs.antennahome.com/ant/AHGG.202.pdf |
FiberGlass | AH1G.404 | 433-915MHz | H300 FiberGlass N Conn, 433M-915MHzANT | http://docs.antennahome.com/ant/AH1G.404.pdf |
|
|
|
|
|
RF Cable ASSY 1# | AHCG.101 | 0~6 GHz | L120 1.13cable SMA-IPX,DIP | http://docs.antennahome.com/ant/AHCG.101.pdf |
RF Cable ASSY 2# | AHCG.102 | 0~6 GHz | L120 1.13cable SMA/B-IPX ,DIP | http://docs.antennahome.com/ant/AHCG.102.pdf |
RF Connector SMA 1# | AHCG.201 | 0~6 GHz | SMA-K Q4,DIP | http://docs.antennahome.com/ant/AHCG.201.pdf |
RF Connector SMA 2# | AHCG.202 | 0~6 GHz | SMA-K Bended Q4 ,DIP | http://docs.antennahome.com/ant/AHCG.202.pdf |
RF Connector SMA 3# | AHCG.203 | 0~6 GHz | SMA-K T1.6,DIP | http://docs.antennahome.com/ant/AHCG.203.pdf |
RF Connector IPX G1 | AHCG.204 | 0~6 GHz | IPX Mounting G1 ,SMD RF connector | http://docs.antennahome.com/ant/AHCG.204.pdf |
|
|
|
|
|
