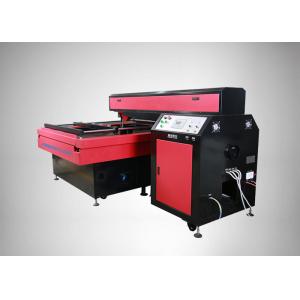

    1000w Dieboard Laser Cutter For Printing Factory Boards, Knife Mold Making, Self-Adhesive Boards, Wood Boards,Leather

    Ask Lasest Price
    Brand Name : Perfect Laser
    Model Number : PEC-0909 1208 1212 1512
    Certification : CE / ISO/FDA/SGS/TUV
    Price : Negotiable
    Payment Terms : T/T, L/C, PayPal, Western Union
    Supply Ability : 400 sets per month
    Delivery Time : 10-15 working days
    • Product Details
    • Company Profile

    1000w Dieboard Laser Cutter For Printing Factory Boards, Knife Mold Making, Self-Adhesive Boards, Wood Boards,Leather

    1000w Dieboard Laser Cutter For Printing Factory Boards, Knife Mold Making, Self-Adhesive Boards, Wood Boards,Leather

    (Model: PEC-0909 1208 1212 1512)

    ★ Product Introduction of die board laser cutting machine:


    Perfect Laser PEC-0909 1208 1212 1512 dieboard laser cutter is suitable for producing Cutting Die Board For Packing Priting And Shoe Die Making Industry.By Cutting The Plywood Acrylic MDF Metal Board with designed drawings.The dieboard laser cutter is widely used to produce paper box paper bag corrugated boxes cutting die board, Arcrylic Shoe Dies, Blist Cutting Die Board, Label Cutting Dies, medicine Box Cutting Dies, cigarette packing box die board etc.


    ★ Features of die board laser cutting machine:


    1.Elegant exterior design; Steel girder welding structure, solid and reliable working table.

    2. Large format working area, high speed, high precision and wide range of application.

    3.Optimized process area and wide application meet the requirements for various laser processing technics.

    4.High speed linear motion guide rail; Rail can be adjusted to ensure the accuracy after some time of movement.

    5.Complete exhaust and filtering system.

    6.Unique design, friendly interface and easy to use. And you enjoy permanent free upgrades of the software.


    ★ Application of die board laser cutting machine:

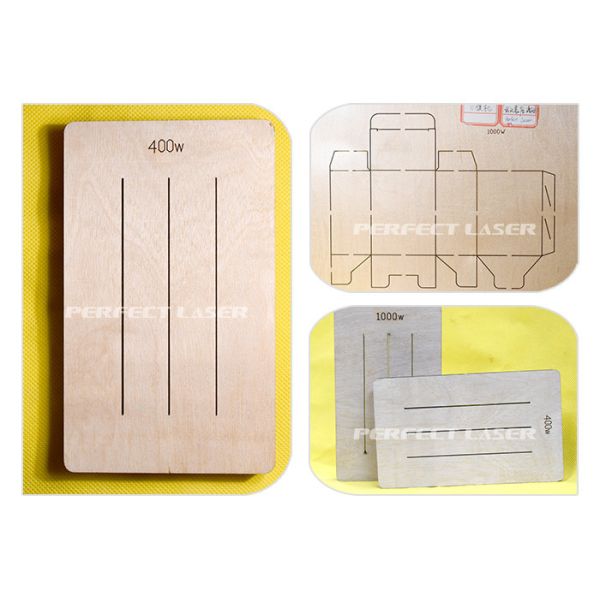

    1.Suitable materials: printing factory board, knife mold making, self-adhesive board, wood board, leather, cloth

    2. Application areas: printing factory, knife mold factory, blister factory, die cutting factory, proofing factory, carton factory, packaging factory


    ★ Technical Parameters of die board laser cutting machine:


    ModelPEC-0909PEC-1215PEC-1218
    Cutting Table Size900×900mm1200×1500mm1200×1800mm
    Laser TypeCO2 Glass Laser Tube
    Lifetime of Laser Tube

    W8:≥10000 Hours

    W6:>15000 Hours

    Cooling ModeWater Cooling and Protection System
    Cutting Speed0-6000mm/ min
    Repeated Position Precision±0.01mm
    Maximum Cutting Depth22mm
    Cutting Width

    0.35mm - 0.75mm Adjustable

    >0.75mm Adjustable

    Support FormatHPGI,PLT,AI,DXF etc.
    Controlling SoftwareHangzhou Times
    Fixture TypePneumatic
    Compatible SoftwareCore Draw,Auto CAD,Photoshop
    Driving System

    Standard:Domestic Motor

    Optional:Japan Panasonic Servo Motor and Drive

    Machine Power≥7000W
    Working VoltageAC 220V(+/10%)50-60Hz
    Operating Temperature0-45℃
    Operating Humidity5-95%

    ★ Machine parts of die board laser cutting machine:



    ★ Packaging & Delivery:

    1. Prompt deliver at the very day.

    2. Well-trained and disciplined packing team.

    3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.

    4. Sophisticated and professional logistic agent.

    ★Competitive Advantages:

    1. 100% custom pass guaranteed.

    2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.

    3. Flexible and Untraceable payment terms.

    4. Good after-sale service.

    5. We offer high quality products at competitive price in quick delivery.
