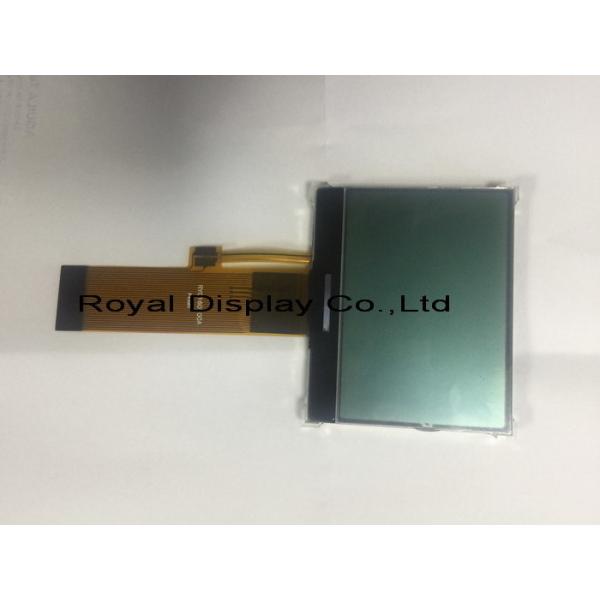

Custom COG dot matrix LCD Module 160*100 Dots LCD Display
PRODUCTION DESCRIPTION
1. 160x100dots
2. Parallel interface
3. Ultra high contrast, YG & White LED backlight as option
4. STN-YG, STN-blue, STN-Gray, FSTN-Positive display results as
option
| Item | Description |
| Product Name | 160x100 dots Graphic LCD Module |
| Model No. | RYG160100A |
| Dot Format | 160X100 |
| Outline (mm) | 55*45 |
| Viewing Area(mm) | 47.1*31 |
| Pixel Size( mm) | 0.25 x 0.2 |
| Viewing Angle | 6 O' clock |
| LCD Type | FSTN-Positive, STN-Gray |
| Backlight | White or Amber LED backlight |
| Driver IC | ST7528 |
| Power supply | 3.3V |
| Interface | Parallel |
| Operating Temp | -30º C~70ºC |
| Storage Temp | -30º C~80ºC |
OUR SERVICE ADVANTAGES
1, Quality Control: Every LCD tested with special instruments or
main boards before delivery to ensure working. Both Original and
High quality OEM products available.
2, Packing: Packed in anti-static bags with foam box to ensure
safety in transportation.
3, Payment Terms: T/T, Western Union,L/C, PayPal
4, Shipping Methods: Prompt delivery by UPS, EMS, DHL, TNT, or by
air.
5, Service: Best after-sales service to ensure satisfaction from
customers.
6, Warranty: Usually, product warranty for one year.
7, Samples: Our company offers samples for quality test or other
business purposes, but we kindly ask you to pay for samples and the
freight.
8. If mass production has any quality problem, customer can return
it.
OUR FACTORY
FAQ
Q: Can I get samples before I order?
A: Yes, we can have samples sent to you within 7 working days upon
receipt of your payment for these samples.
Q: Do you also customize the products?
A: Yes, we also customize the products according to your
requirements.
Q: Can we visit your factory?
A: You are welcome to visit us.
Q: Can I have a sample order?
A: Yes. We warmly welcome the sample for you to test the quality.
Q: Where can l get the datasheet ?
A: When we get your inquiry, and tell us which one you need,we
would send you immediately.
Q: How much the transportation freight of the sample?
A: The freight depends on total weight and your address.
Q:What's the delivery time?
A: > For samples order, 2-3weeks;
> For mass orders,4-6weeks.
Q.Do you provide free samples?
A:For first time cooperation, samples will be charged, the amount
will be returned at the mass order stage. In regular cooperation,
samples are free.Sellers keep the right for any change.
