ASTM B862 Gr2 Gr7 Gr12 titanium welded pipe piping with length =
6000mm price per kg
Titanium welded tube is light but with high strength. The most
important feature is high corrosion-resistance.
Titanium welded tubes are widely used in water engineering,
petrochemical industry, chemical industry, power industry, and agricultural irrigation and urban construction.
For liquid transportation: water supply and drainage.
For gas delivery: gas, steam, liquefied petroleum gas.
For structural purposes: used as piling pipes, bridges, piers,
roads, building structures, pipes, etc
Welded titanium tubing is supplied to the latest revisions of
ASTM/ASME B 338 & ASTM/ASME B862 specifications, UT and Eddy-Current Tested. Please inquire for
exact dimensional capabilities based on O.D. and Wall Requirements.
Product Name | Titanium welded tube/ pipe |
Standard | ASTM/ASME B 338 & ASTM/ASME B862 |
Material | Pure titanium | Gr1 Gr2 etc. |
Alloy titanium | Gr.7(Ti-0.2Pd) Gr.9(Ti-3Al2.5V) Gr.11(Ti-0.2Pd ) Gr.12(Ti-0.3Mo-0.8Ni) Gr.16(Ti-0.05Pd ) |
Size | OD>114.3mm,length is 12000mm(Max) |
Type | Round, square, coiling |
Technique | Hot forging, hot rolled, cold rolled |
Goods Condition | Annealed |
Surface | Mainly is sand blasting, the Polishing and pickling is also do as
customers requested. |
| Fe max | O max | N max | C max | H max | Pd | Al | V | Mo | Ni | Elong'n | Rp 0.2 | Rm |
No | wt% | wt% | wt% | wt% | wt% | wt% | wt% | wt% | wt% | wt% | % | MPa | MPa |
Grade 1 | 0.2 | 0.18 | 0.03 | 0.1 | 0.015 |
|
|
|
|
| 24 | 170-310 | 240 |
Grade 2 | 0.3 | 0.25 | 0.03 | 0.1 | 0.015 |
|
|
|
|
| 20 | 275-450 | 345-480 |
Grade 7 | 0.3 | 0.25 | 0.03 | 0.1 | 0.015 | 0,12-0,25 |
|
|
|
| 20 | 275-450** | 345 |
Grade 9 | 0.25 | 0.15 | 0.02 | 0.05 | 0.015 |
| 2,5-3,05 |
|
|
| 15 | 550 | 650 |
Grade 12 | 0.3 | 0.25 | 0.03 | 0.1 | 0.015 |
|
|
| 0.3 | 0.8 | 25 | 414-460 | 499-600 |

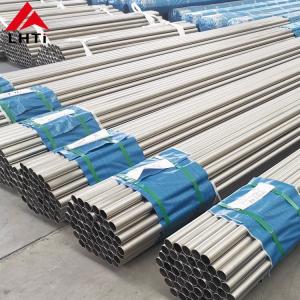

Detailed images:
The third party testing report:
Packaging and shipping:
Over 15 years experience in titanium production and export
Ensure the goods arrive at the customer's port in perfect condition
Standard export packaging, inside the foam film protection, outside
plywood case
