    Individual Shielding Flexible Control Cable Non Interference

    Ask Lasest Price
    Brand Name : Hwatek
    Model Number : Flexible Cable,non-interference
    Certification : UL,ROHS, REACH
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 3000KM Per month
    Delivery Time : 2-3W
    • Product Details
    • Company Profile

    Individual Shielding Flexible Control Cable Non Interference

    Non-Interference Individual Shielding Control Cable


    Product Number.ConductorInsulationShieldJacket

    Max. Cond. Resistance (200C)

    Ω/km

    CoresSize AWGNO./mm

    Conductor

    Dia .

    mm

    Nom. Thickness

    mm

    Nom. Dia.

    mm

    Individual ShieldOverall ShieldNom. Thickness mm

    Nom. Dia.

    mm

    HT***00013P2626/0.080.480.261.00

    Al- Mylar


    TC Braiding1.057.00140
    HT***00023P2816/0.080.380.120.630.565.30223
    HT***00036P2816/0.080.380.150.690.705.36223
    HT***00048P2816/0.080.380.150.690.705.66223
    HT***000513P2816/0.080.380.150.690.907.62223

    Application: drag chain wiring , interconnection wire

    Application standard: UL758, UL1581, CSA C22.2 No.210.2

    Product character:

    Standard thickness, easily strip and cut

    Tiny conductor diameter has high flexibility

    Oil and heat resistance, anti-bending and abrasion

    Pass UL VW-1 and CSA FT1 vertical flame test

    Constructure:

    Stranded bare copper conductor

    TPEE insulation

    Muti-pairs individual shielding and cabling

    Braiding shield with tinned copper

    Flexible PU jacket

    Technical parameter:

    Rated temperature : 80℃

    Rated Voltage: 300V

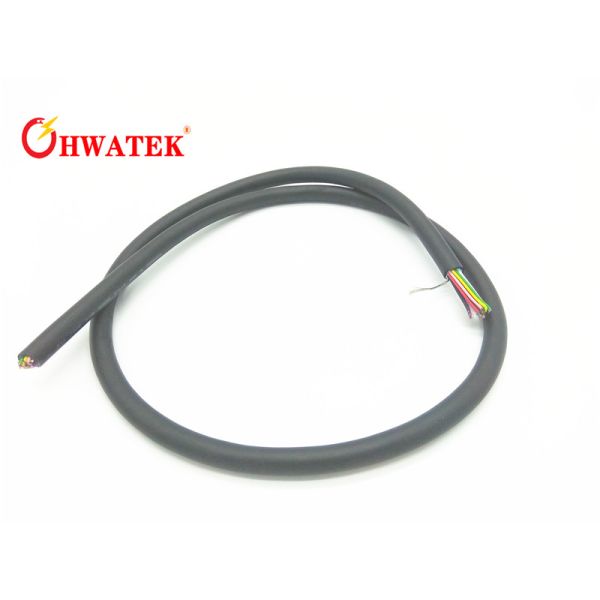

    Quality Individual Shielding Flexible Control Cable Non Interference for sale
